12.1.10 Wiring Conguration for a Relay Setup with Smart Logic Control

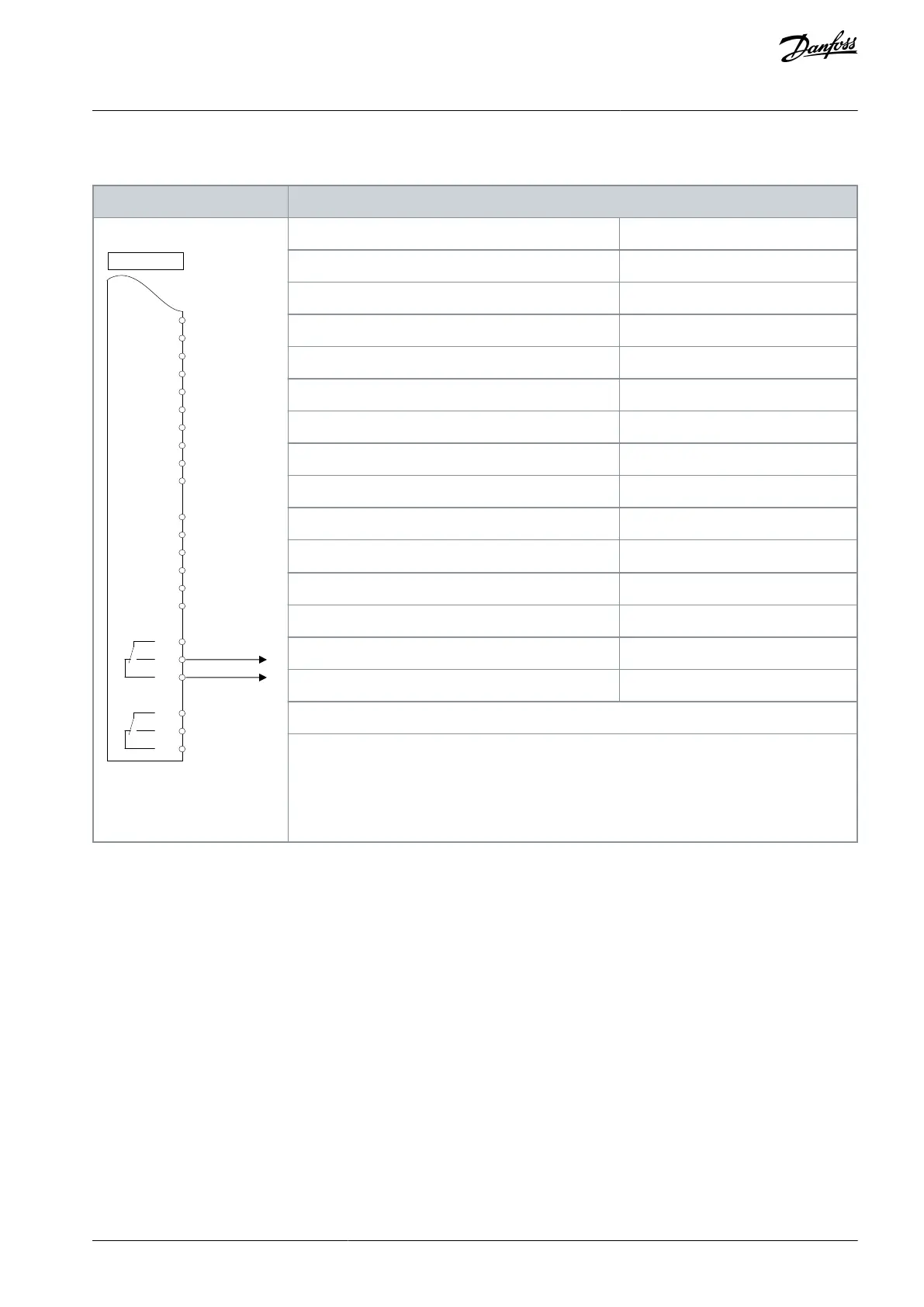

Table 121: Wiring Conguration for a Relay Setup with Smart Logic Control
Parameters
+24 V
+24 V
D IN
D IN
D IN
COM
D IN
D IN
D IN
D IN
+10 V
A IN
A IN
COM
A OUT
COM
R 1 R 2
12
13
18
19
20
27
29
32
33
37
50
53
54
55
42
39
01
02
03
04
05
06
130BB839.10
Drive
Function
Setting
Parameter 4-30 Motor Feedback Loss Function
[1] Warning
Parameter 4-31 Motor Feedback Speed Error
100 RPM
Parameter 4-32 Motor Feedback Loss Timeout
5 s
Parameter 7-00 Speed PID Feedback Source
[2] MCB 102
Parameter 17-11 Resolution (PPR)
1024*
Parameter 13-00 SL Controller Mode
[1] On
Parameter 13-01 Start Event
[19] Warning
Parameter 13-02 Stop Event
[44] Reset key
Parameter 13-10 Comparator Operand
[21] Warning no.
Parameter 13-11 Comparator Operator
[1] ≈ (equal)*
Parameter 13-12 Comparator Value
90
Parameter 13-51 SL Controller Event
[22] Comparator 0
Parameter 13-52 SL Controller Action
[32] Set digital out A low
Parameter 5-40 Function Relay
[80] SL digital output A
*=Default value
Notes/comments:
If the limit in the feedback monitor is exceeded, warning 90, Feedback Mon. is issued. The SLC
monitors warning 90, Feedback Mon. and if the warning becomes true, relay 1 is triggered. Exter-
nal equipment may require service. If the feedback error goes below the limit again within 5 s,
the drive continues and the warning disappears. Reset relay 1 by pressing [Reset] on the LCP.
