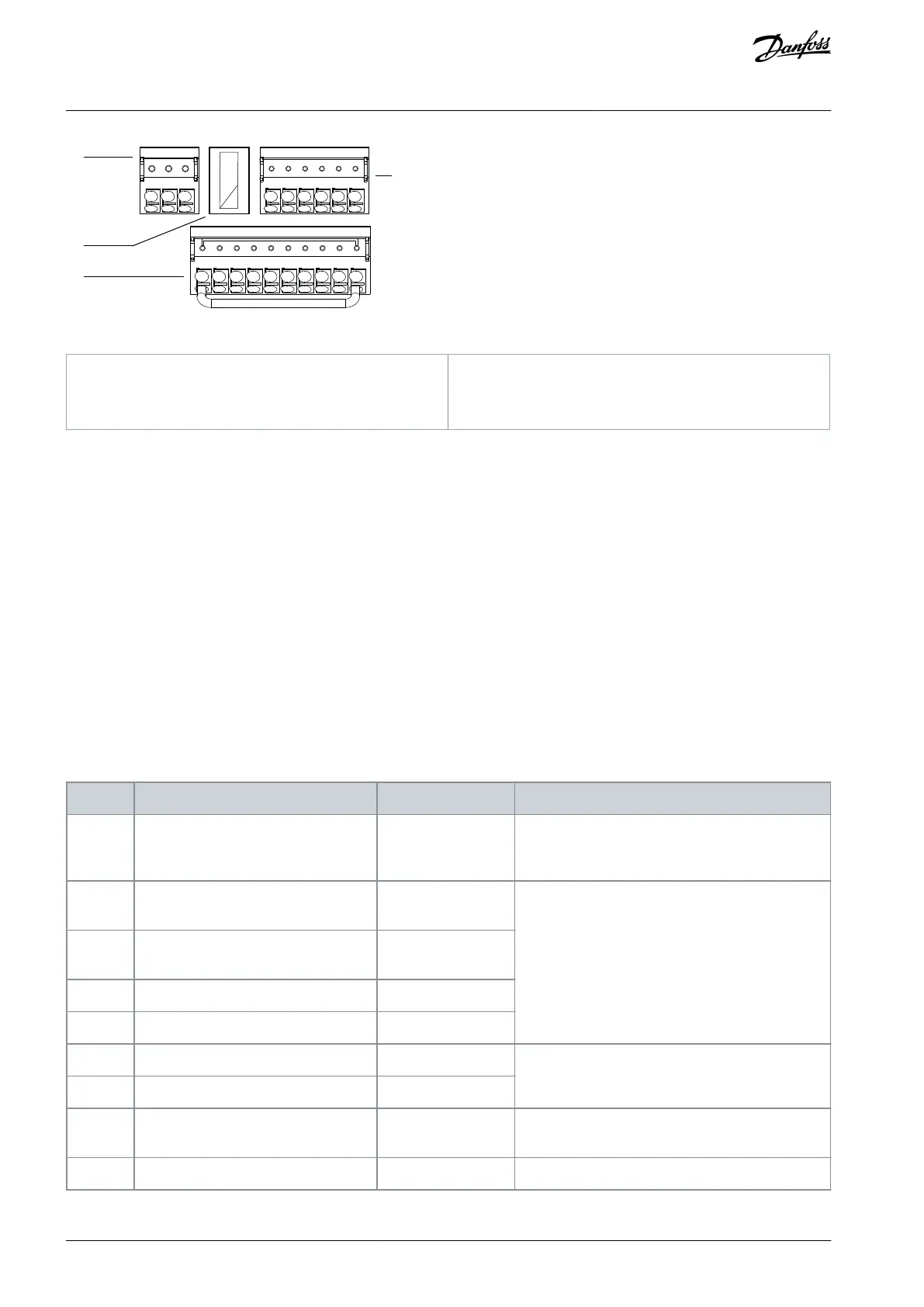

Illustration 70: Terminal Numbers on the Connectors
1
Serial communication connector
2
USB port
3
Digital input/output connector
4
Analog input/output connector
Serial communication connector provides 2 terminals (+)68 and (-) 69 for an RS485 serial communication.
USB port available for use with the MCT 10 Set-up Software.
Digital input/output connector provides:
4 programmable digital input terminals.
2 additional digital terminals programmable as either input or output.
A 24 V DC terminal supply voltage.
A common for optional customer-supplied 24 V DC voltage.
Analog input/output connector provides:
2 analog inputs.
1 analog output.
10 V DC supply voltage.
Commons for the inputs and output.
10.5.4 Terminal Descriptions
Table 63: Digital Inputs/Outputs
Terminal
Parameter
Default setting
Description
12, 13
–
+24 V DC
+24 V DC supply voltage for digital inputs and ex-
ternal transducers. Maximum output current
200 mA for all 24 V loads.
18
Parameter 5-10 Terminal 18 Digital In-
puts
[8] Start
Digital inputs
19
Parameter 5-11 Terminal 19 Digital In-
puts
[0] No operation
32
Parameter 5-14 Terminal 32 Digital Input
[0] No operation
33
Parameter 5-15 Terminal 33 Digital Input
[0] No operation
27
Parameter 5-12 Terminal 27 Digital Input
[2] Coast inverse
For digital input or output. Default setting is input.
29
Parameter Terminal 29 Digital Input
[14] Jog
20
–
–
Common for digital inputs and 0 V potential for
24 V supply.
37
–
Safe Torque O (STO)
Safe input (optional). Used for STO.
