Danfoss VLT AQUA FC 202 Design Guide

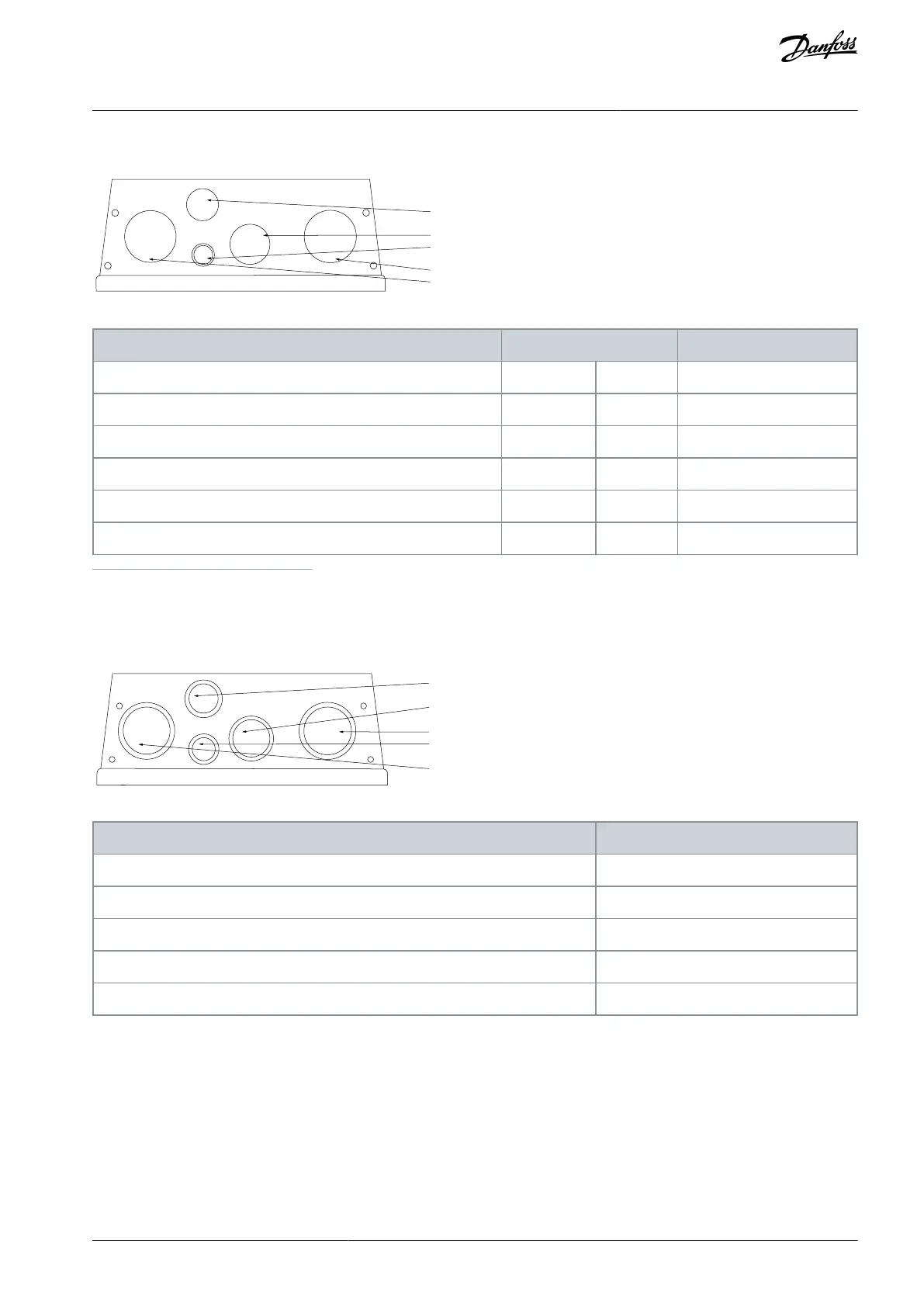

10.4.3.11 Entry Holes, Enclosure Size B2, IP55
[4]
[3]
[5]
[2]
[1]
e30bb668.10
Table 57: Dimensions of Entry Holes for Enclosure Size B2, IP55
Hole number and recommended use
Dimensions
(1)
Nearest metric
UL [in]
[mm]
1) Mains
1 1/4
44.2
M40
2) Motor
1 1/4
44.2
M40
3) Brake/loadsharing
1
34.7
M32
4) Control cable
3/4
28.4
M25
5) Control cable
(2)
1/2
22.5
M20
1
Tolerance ±0.2 mm.
2
Knockout hole.
10.4.3.12 Entry Holes, Enclosure Size B2, IP55 Threaded Gland Holes
[4]
[3]
[2]
[5]
[1]
e30bb670.10
Table 58: Dimensions of Entry Holes for Enclosure Size B2, IP55 Threaded Gland Holes
Hole number and recommended use
Metric thread size
1) Mains
M40
2) Motor
M40
3) Brake/loadsharing
M32
4) Control cable
M25
5) Control cable
M20
AJ300847815559en-000101 / 130R0337 | 119Danfoss A/S © 2020.09
Electrical Installation
Considerations
VLT® AQUA Drive FC 202
Design Guide
