Datalogic PowerScan PD9530 User Manual

Enter/Exit Programming Mode
Product Reference Guide 251

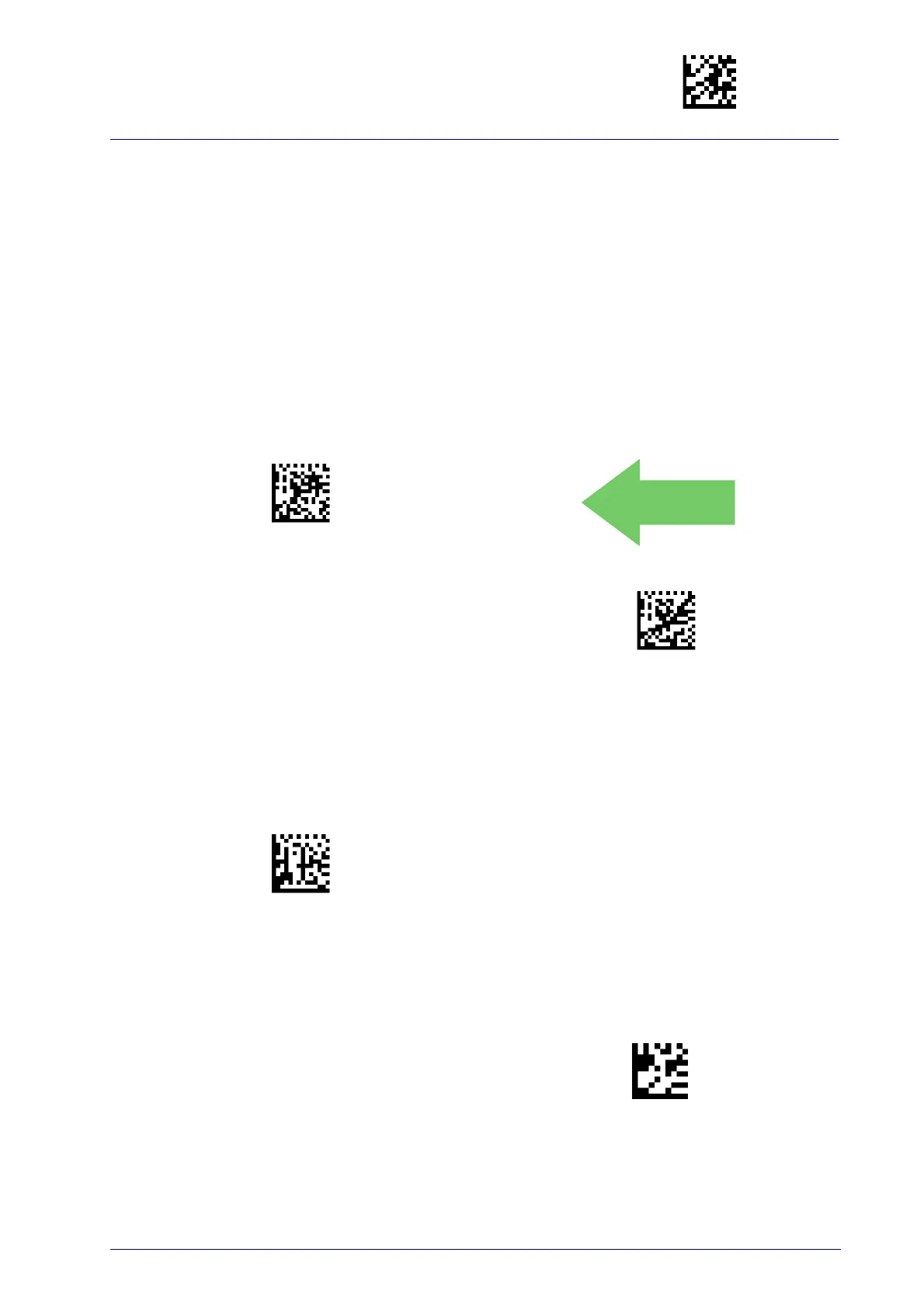

Arrow Keys Mode (4-key models only)
Configure the Arrow Keys functionality type. Two options are available:
Function Keys Action Select mode: When in this mode, arrow keys are used to
select one of the 3 possible actions associated to the Function Keys. To
associate actions to the Function keys, see "Configure Actions for Function
k
eys" on page 253.
String Association Mode: When in this mode, each one of the arrow keys can
be programmed to display and transmit a pre-defined string (see
"Arrow Up
String (4-key models only)" on page 251
and"Arrow Down String (4-key
models only)" on page 252
).
$CDIAC00\r
Function Keys Action Select mode
DEFAULT
$CDIAC01\r
String Association Mode
Arrow Up String (4-key models only)
Associate a pre-defined string to the Arrow Up key
$CDAUS
Set string for Arrow Up Key
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code at
left.
Definethelabelstringbyfurtherscanning32
digitsfromtheAlphanumericcharactersin
Appen-
dix D, Keypad
.
The digits must be the hexadecimal ASCII representa-
tion of the desired characters; if less than the expected
string of 16 characters are selec
ted, scan the ENTER/
EXIT bar code to terminate the string.
End by scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and not save the entry
string. You can then start again
at the beginning.
~
CANCEL

Datalogic PowerScan PD9530 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Linear (1D) barcodes supported	-
Standard interfaces	RS-232, USB, Keyboard wedge
Connectivity technology	Wired
Product color	Black, Yellow
International Protection (IP) code	IP65
Input voltage	5 V
Power consumption	350 mA
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	No

Weight and Dimensions

Depth	110 mm
Width	74 mm
Height	212 mm
Weight	330 g
