Datalogic PowerScan PD9530 User Manual

Enter/Exit Programming Mode
220 PowerScan™ PD9530/PBT9500/PM9500

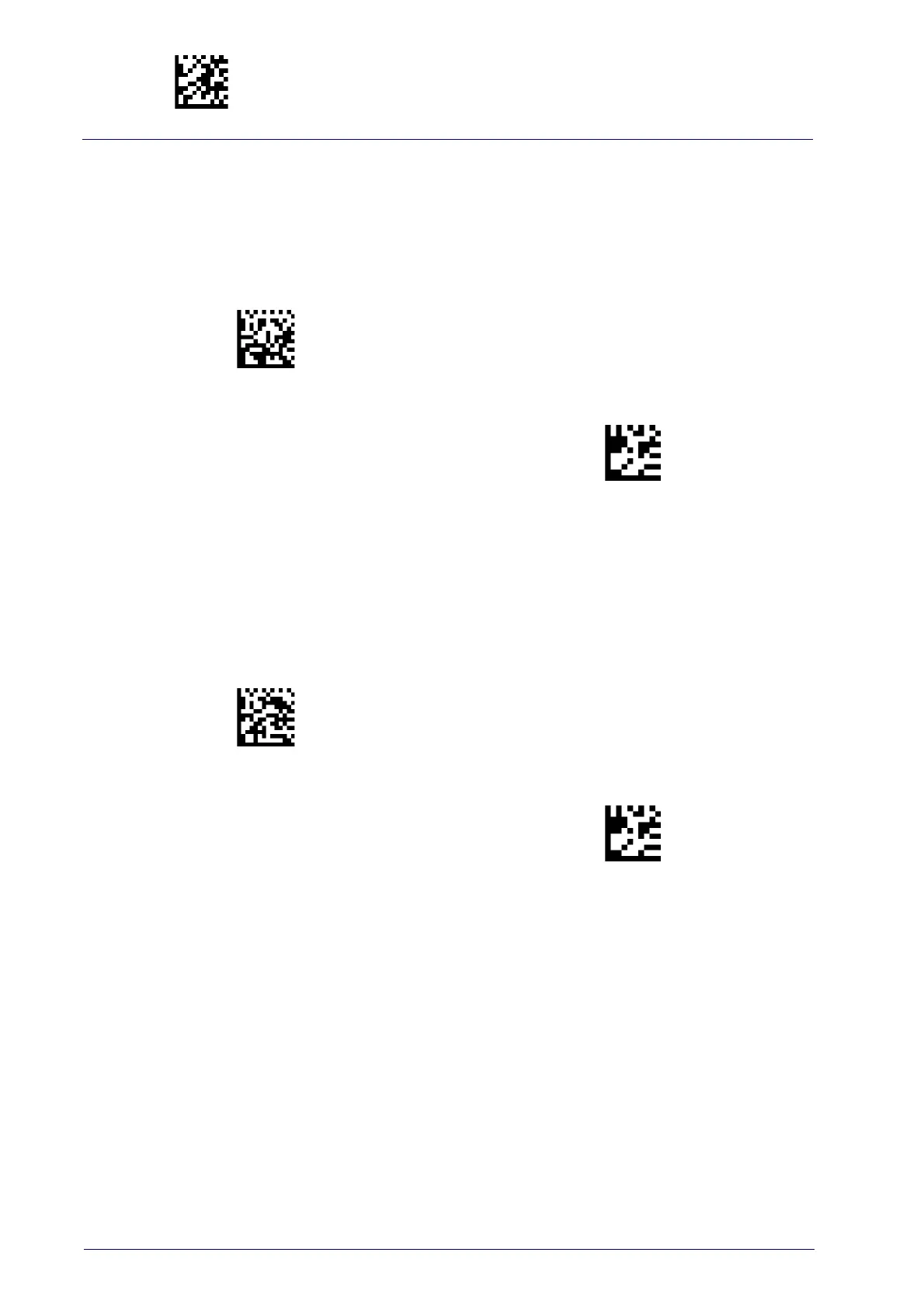

REAL TIME CLOCK (RTC) CONFIGURATION
Current Date
Sets the date of the internal Real Time Clock (RTC)
$CDYMD
Set Current Date = YYMMDD
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code at
left followed by the digits from the Alphanumeric cha
r-
acters in
Appendix D, Keypad representing your
desired character(s). End by scanning the ENTER/EXIT
bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and no
t
save the entry string. You can then start again
at the beginning.
~
CANCEL
Current Time
Sets the time of the internal Real Time Clock (RTC). HH = 24 hours format
$CTHMS
Set Current Time = HHMMSS
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code at
left followed by the digits from the Alphanumeric cha
r-
acters in
Appendix D, Keypad representing your
desired character(s). End by scanning the ENTER/EXIT
bar code again.
Make a mistake? Scan the CANCEL bar code to abort
and no
t
save the entry string. You can then start again
at the beginning.
~
CANCEL

Datalogic PowerScan PD9530 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Linear (1D) barcodes supported	-
Standard interfaces	RS-232, USB, Keyboard wedge
Connectivity technology	Wired
Product color	Black, Yellow
International Protection (IP) code	IP65
Input voltage	5 V
Power consumption	350 mA
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	No

Weight and Dimensions

Depth	110 mm
Width	74 mm
Height	212 mm
Weight	330 g

Summary

Chapter 1 Introduction

About the Reader

Details on PowerScan 2D readers, models, and features.

Chapter 2 Setup

Setting Up the Reader

Step-by-step guide for connecting and configuring the reader with its host.

Configuring the Base Station

Instructions for installing, connecting, and configuring the BC9xx0 base station.

Interface Selection

Guide to selecting and setting the correct interface type for the reader and host connection.

Chapter 3 Configuration Using Bar Codes

Configuration Parameters

Overview of parameters for reader customization via bar codes.

Battery Safety

Chapter 4 References

RS-232 Parameters

Detailed explanations of Baud Rate, Stop Bits, Parity, and Handshaking Control.

Keyboard Interface

Configuration options for Wedge, Intercharacter, and Intercode delays.

Symbologies

Information on Data Matrix DPM Decoding Safety and Set Length controls.

Data Editing

Features for customizing message strings with prefixes, suffixes, and Label IDs.

Reading Parameters

Settings for double read timeout, LED/Beeper indicators, and scan modes.

Wireless Features

Chapter 5 Message Formatting

LED and Beeper Control

Appendix A Technical Specifications

Decode Capability

Appendix C Standard Defaults

Features for PBT9500 Models Only

Features for PM9500 Models Only

Display and Keyboard Features
