Datalogic PowerScan PD9530 User Manual

Enter/Exit Programming Mode
Product Reference Guide 269

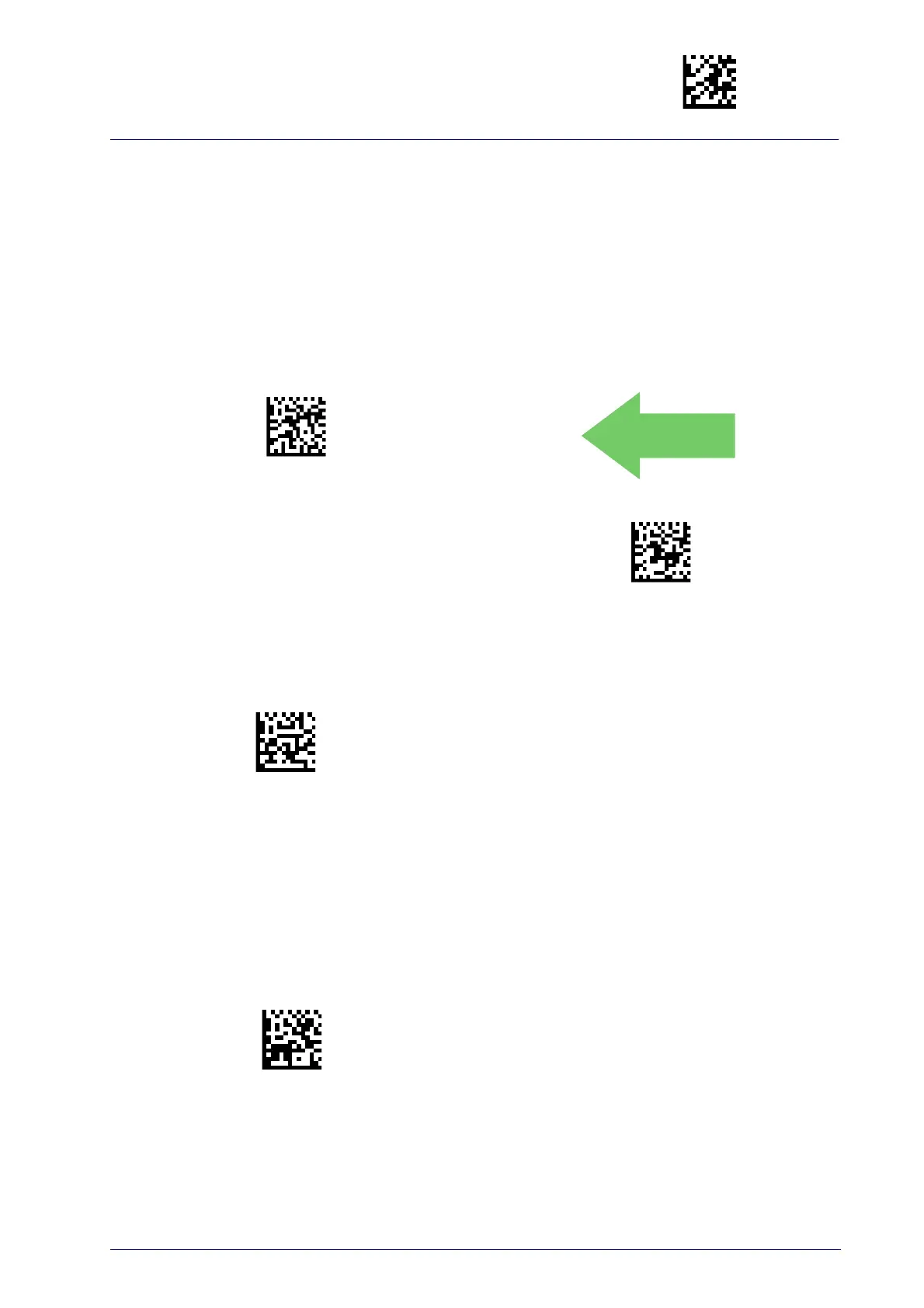

Barcode/Key Different Data Format
If this parameter is enabled, barcode and keyboard entered data can be for-
matted separately. More specifically: if this parameter is disabled, barcode
and keyboard data will share the s
ame Header and Terminator defined using
“Set Barcode Header” and “Set Barcode Terminator” below. If this parameter
is enabled, keyboard entered data are treated differently, as their format
must be programmed through the parameters "Set String Header", "Set
String Terminator", "Set Key Sequence Header" and "Set Key Sequence Ter-
minator".
$CPWDF00\r
Disable
DEFAULT
$CPWDF01\r
Enable
Set Barcode Header
Sets the header for barcode and keyboard composed strings.
$CPWBH
Set barcode header
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code at
left followed by 32 digits from the Alphanumeri
c charac-
ters in
Appendix D, Keypad . The digits must be the
hexadecimal ASCII representation of the desired charac-
ters.
If less than the expected string of 16 characters are
selected, scan the ENTER
/
EXIT bar code to terminate the
string. If the first 2 digits are 0, the feature is disabled.
End by scanning the ENTER/EXIT bar code again.
Set Barcode Terminator
Sets the terminator for barcode and keyboard composed strings.
$CPWBT
Set barcode terminator
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code at
left followed by
32 digits from the Alphanumeric charac-
ters in
Appendix D, Keypad . The digits must be the
hexadecimal ASCII representation of the desired charac-
ters.
If less than the expected string of 16 characters are
selected, scan the ENTER/EXIT bar code to t
erminate the
string. If the first 2 digits are 0, the feature is disabled.
End by scanning the ENTER/EXIT bar code again.

Datalogic PowerScan PD9530 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Linear (1D) barcodes supported	-
Standard interfaces	RS-232, USB, Keyboard wedge
Connectivity technology	Wired
Product color	Black, Yellow
International Protection (IP) code	IP65
Input voltage	5 V
Power consumption	350 mA
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	No

Weight and Dimensions

Depth	110 mm
Width	74 mm
Height	212 mm
Weight	330 g
