Datalogic PowerScan PD9530 User Manual

Linking the Reader
Product Reference Guide 19

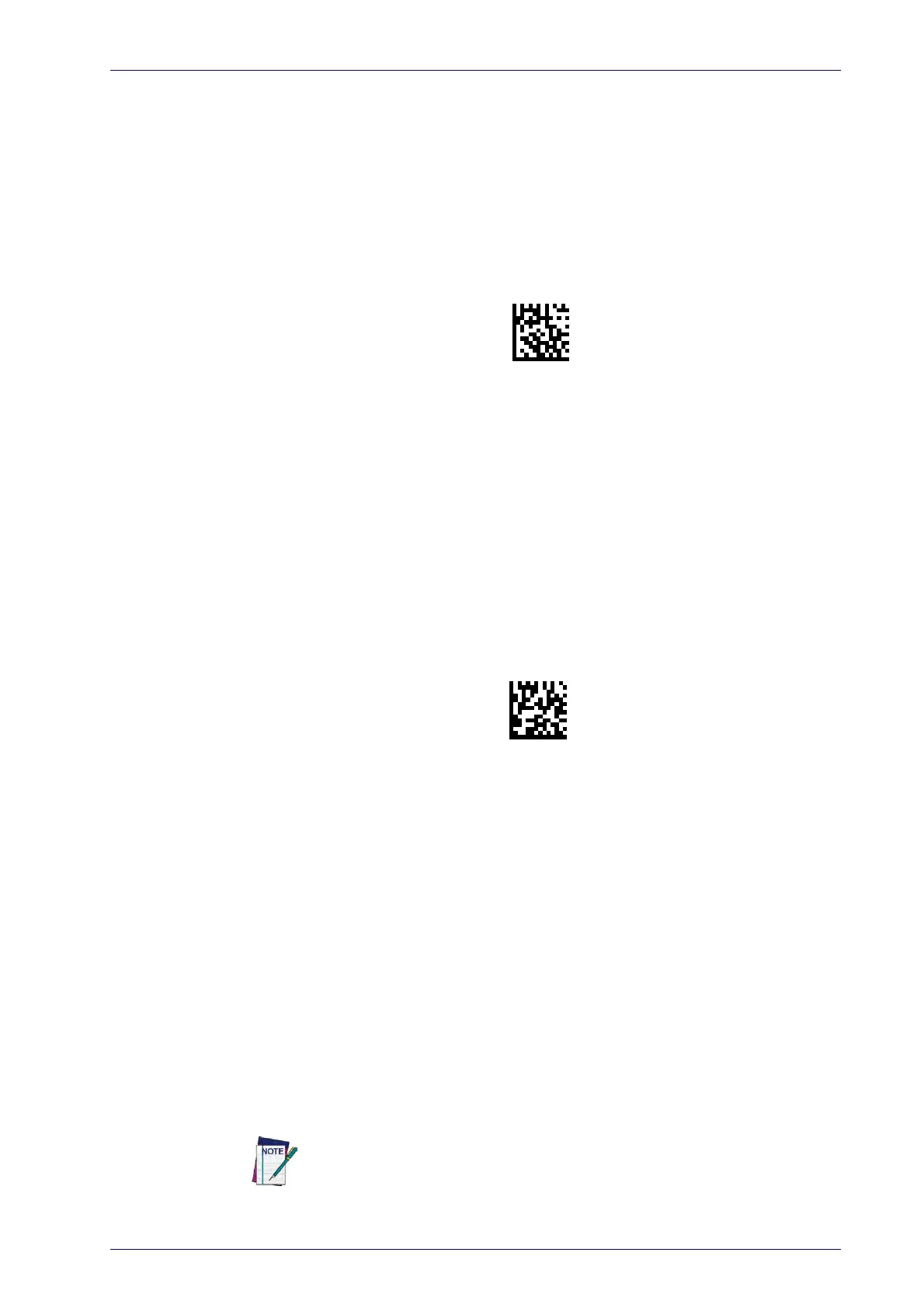

Linking the Reader
Link Datalogic RF Devices to Base
For RF devices, before configuring the interface it is necessary to link the
handheld with the base.
To link the handheld and the base, press the trigger to wake up the hand-
held and mount it into the base. If the reader was previously linked to
another base, you must first press and ho
ld the button on the base (>5 sec-
onds), then scan the
Unlink bar code before re-linking to the new base.
Unlink
Linking to a Bluetooth Adapter in Serial Port Profile (Slave) Mode
1. Install any drivers provided with the Bluetooth adapter.
2. Scan the Enable RF Link to Server label below to make the scanner visible
to the host computer.
3. Use the host computer’s Bluetooth manager to “Discover new devices”
and select "Datal
ogic Scanner." If you receive an error message, it may
be necessary to disable security on the device.
4. Use an RS-232 terminal program to see incoming data on the port des-
ignated by the computer's Bluetooth manager.
Enable RF Link to Server
Linking to a Bluetooth Adapter in Serial Port Profile (Master) Mode
1. Ensure the PC or terminal can network with Bluetooth devices and that
it is powered on.
2. Ensure that a COM port is assigned unde
r Services in the Bluetooth
setup menu.
3. Create a Link label that contains the address of the PC Bluetooth
ada
p
ter.
The link label is a Code 128 function 3 label with the following format:
<FN3 char>LnkB<12 character Bluetooth address>
4. Scan the link label you created in step 3.
The Bluetooth address can be found under “Properties” within the Bluetooth
setup menu.

Datalogic PowerScan PD9530 Specifications

General

Type	Handheld bar code reader
Sensor type	Laser
Tilt reading angle	0 - 360 °
Pitch reading angle	-40 - 40 °
Linear (1D) barcodes supported	-
Standard interfaces	RS-232, USB, Keyboard wedge
Connectivity technology	Wired
Product color	Black, Yellow
International Protection (IP) code	IP65
Input voltage	5 V
Power consumption	350 mA
Power source type	DC
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	0 - 95 %
Cables included	No

Weight and Dimensions

Depth	110 mm
Width	74 mm
Height	212 mm
Weight	330 g
