Delta AS132P-A User Manual

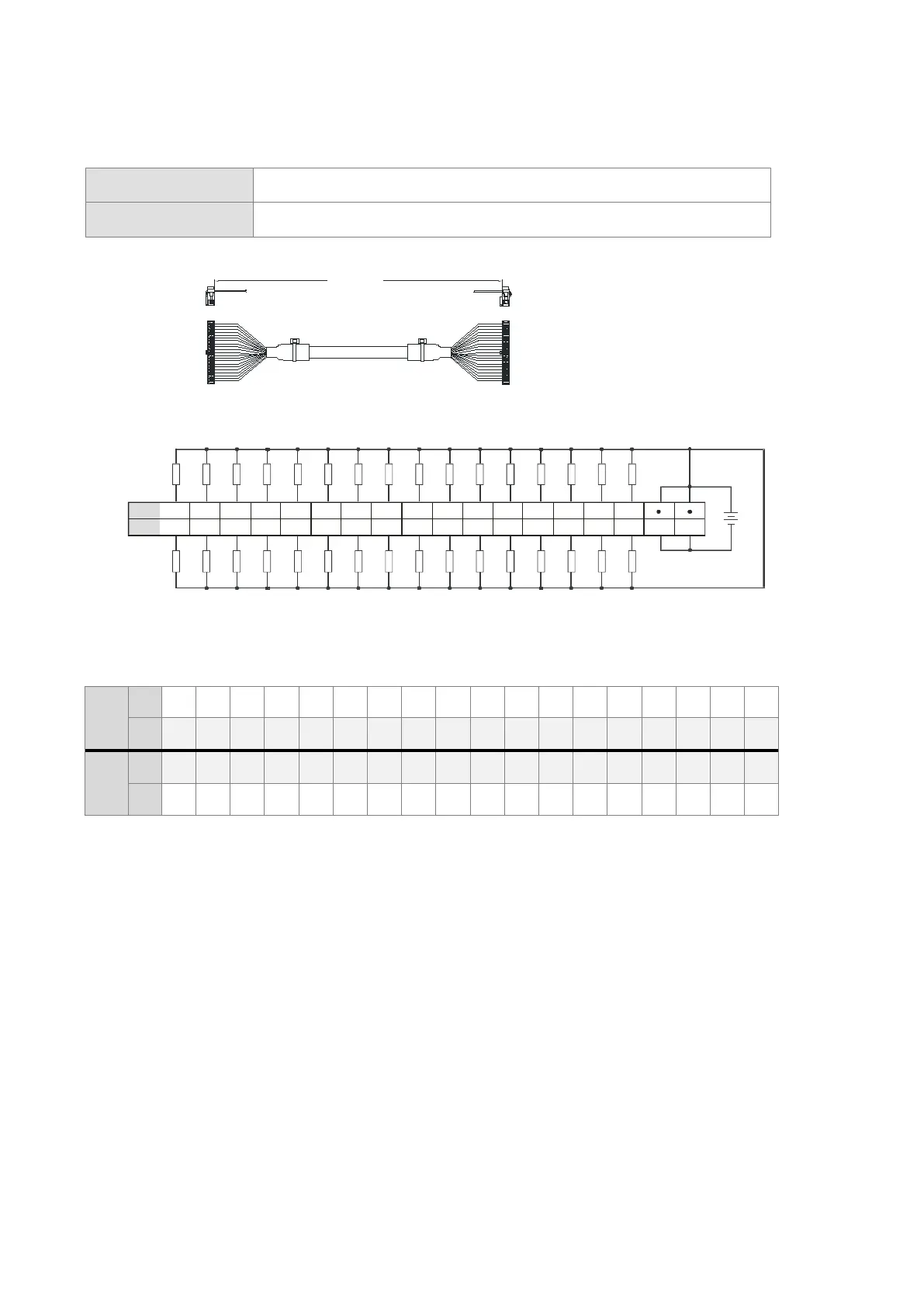

 Wiring the External Terminal Module UB-10-OT32A
Output type
Transistor-T (sinking)
Voltage specifications
5 to 30 VDC, 0.1 A
Length
39 40
39 40
1 2
1 2
UC-ET010-24B(1M)
UC-ET020-24B(2M)
UC-ET030-24B(3M)
Length:
Y0.0
Y0.1
Y0.14
Y0.15
Y0.2
Y0.3
Y0.4
Y0.5
Y0.6
Y0.7
Y0.8
Y0.9
Y0.10
Y0.11
Y0.12
Y0.13
Y1.0
Y1.1
Y1.14
Y1.15
Y1.2
Y1.3
Y1.4
Y1.5
Y1.6
Y1.7
Y1.8
Y1.9
Y1.10
Y1.11
Y1.12
Y1.13
C0
Upper
row
C0
Lower
row
Note: UB-10-OT32A can be used with AS Series and DVP Series. The indications on the UB-10-OT32A board
is for DVP Series. For the definitions of terminal connections for AS Series, you can see the reference table
below. Or refer to the enclosed sticker for AS Series.
Upper
row
AS
Y0.0 Y0.2 Y0.4 Y0.6 Y0.8 Y0.10 Y0.12 Y0.14 Y1.0 Y1.2 Y1.4 Y1.6 Y1.8 Y1.10 Y1.12 Y1.14
 
DVP
Y0 Y2 Y4 Y6 Y10 Y12 Y14 Y16 Y20 Y22 Y24 Y26 Y30 Y32 Y34 Y36
 
Lower
row
DVP
Y1 Y3 Y5 Y7 Y11 Y13 Y15 Y17 Y21 Y23 Y25 Y27 Y31 Y33 Y35 Y37 C0 C0
AS
Y0.1 Y0.3 Y0.5 Y0.7 Y0.9 Y0.11 Y0.13 Y0.15 Y1.1 Y1.3 Y1.5 Y1.7 Y1.9 Y1.11 Y1.13 Y1.15 C0 C0
