If the local CPU module wants to send 10-word data to the remote device, the data will be stored in D0~D9 before the
data is sent. If the local CPU module receives 20-word data from the remote device, the data will be stored in
D100~D119.
If the length of data received is larger than the length set, the first 20-word data will be stored in D100~D119, and the
data after the first 20-word data will be discarded. Likewise, if the length of data received is less than the length set,
the data will be stored in the devices starting from D100, and the values in devices where no new data is stored will be
retained.
If no data is transmitted, and 60 seconds have elapsed, the CPU module will close the socket, and terminate the
connection.

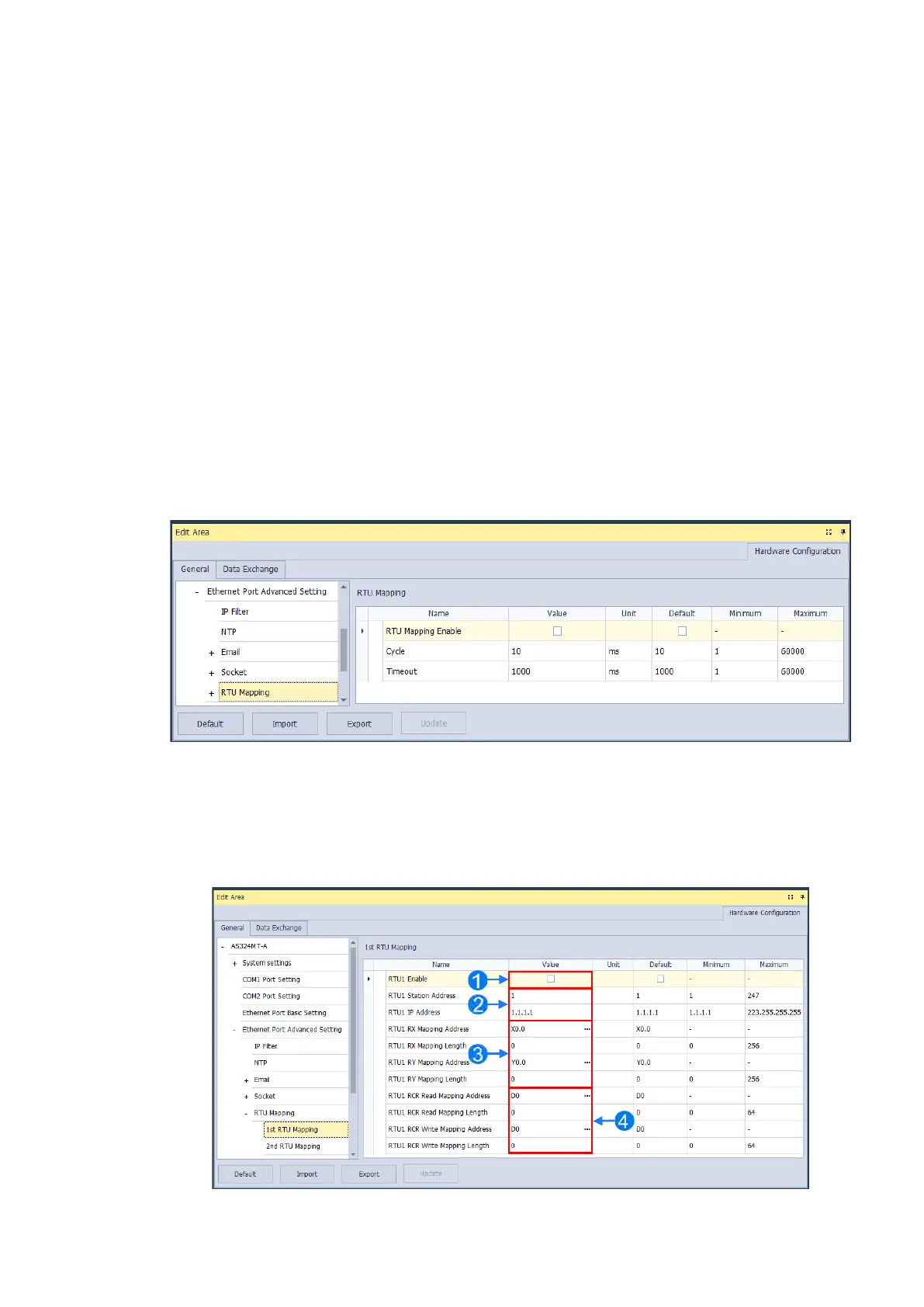

8.2.13 Ethernet Port Advance Setting – RTU Mapping
In the
RTU Mapping
table, users can set Delta RTU-EN01 slave in connection with PLC CPU. The remote device can
be controlled via Ethernet. For the setting and operation of RTU-EN01, refer to the operation manual.
Select RTU Mapping Enable checkbox to enable the function of connection between RTU module and PLC CPU. Set
the update cycle in
Cycle
box and a timeout in
Timeout
box. It means a timeout when RTU does not give a reply within
the timeout set.
The data mapping between each group of RTU-EN01 and PLC CPU is set in the
RTU Mapping
section. RTU-EN01
and I/O module connected to it are set via DCISoft. For more information on DCISoft, refer to the operation manual.
