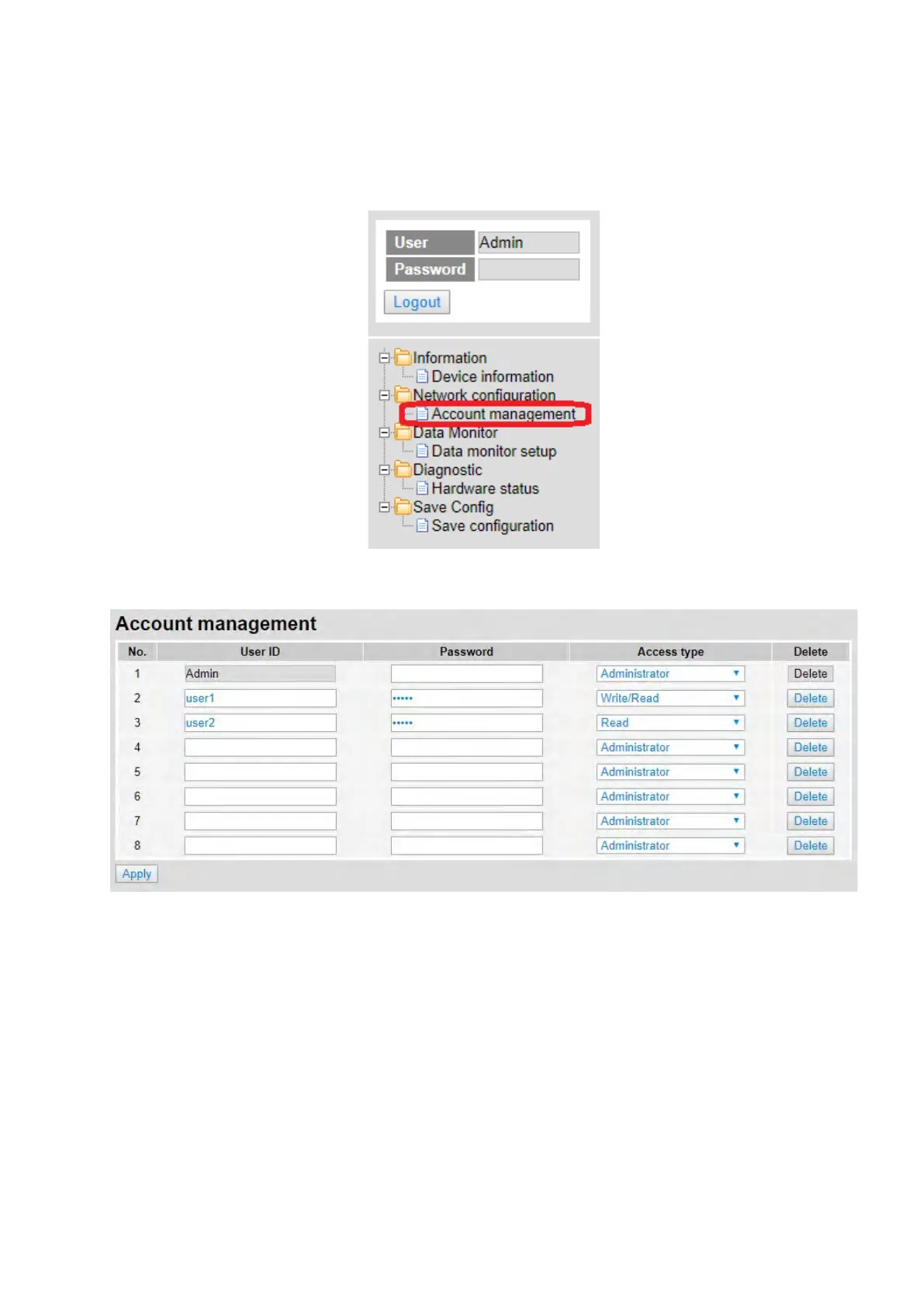

Operation Steps:
a.
After log in,
do
uble
-click
Account manage
ment
to open the setting
page.
b.
S
et
up t
he User I
D, the pass
word and the access
type.
After editing, click
“
Apply
”
to save
the setting
or click
“
Delete
”
to clea
r the account.
