Ducati MONSTER 696 User Manual

Checking brake pads for wear
Check brake pads wear through the inspection hole
in the callipers.
Change both pads if friction material thickness of
even just one pad is about 1 mm.
Warning
Friction material wear beyond this limit would
lead to metal support contact with the brake disc thus
compromising braking efficiency, disc integrity and
rider safety.
Important
Have the brake pads replaced at a Ducati Dealer
or authorised Service Centre.
Warning
Close the twistgrip housing carefully, inserting
the cable in the race.
MIN
MIN

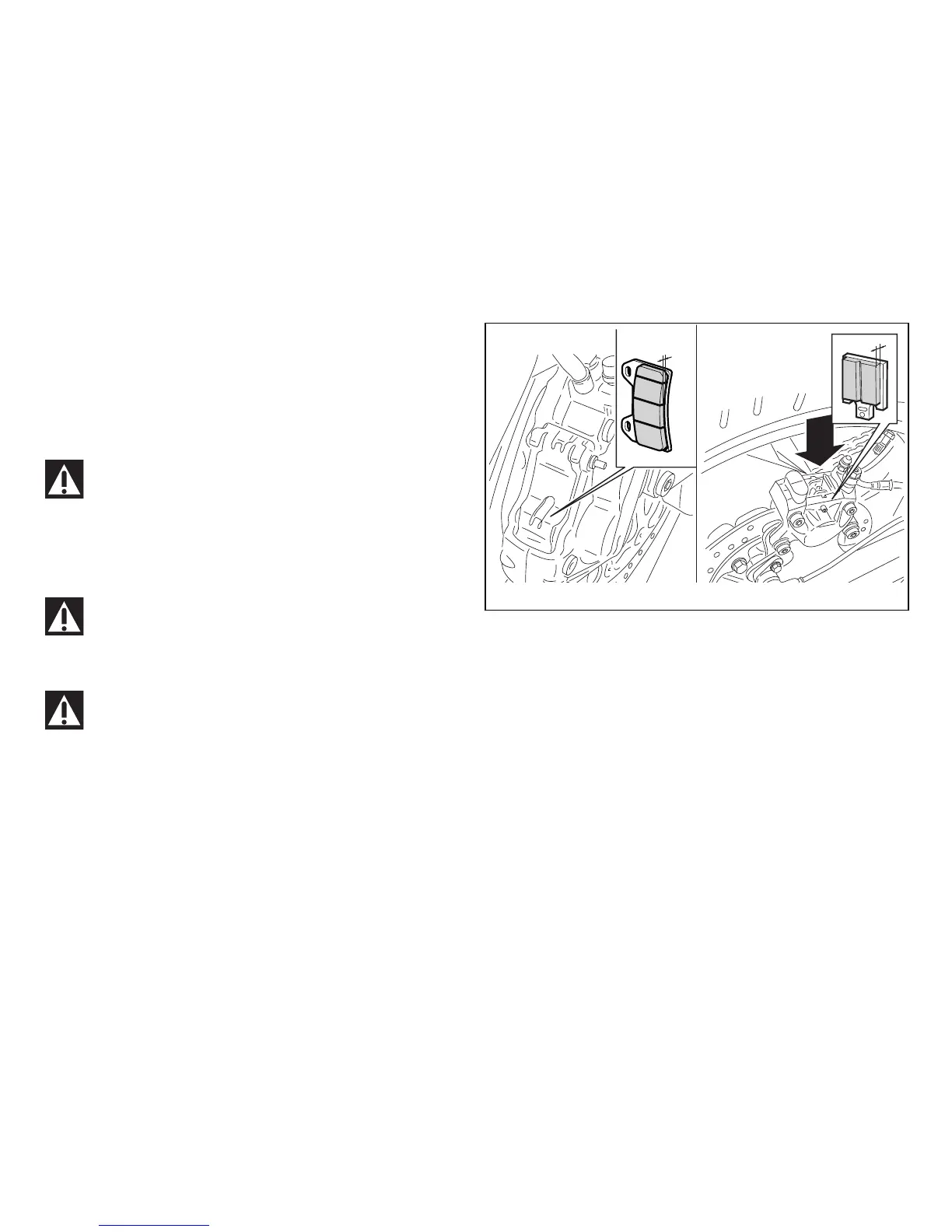

Fig. 65
108

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
