Ducati MONSTER 696 User Manual

Checking drive chain tension
Important
Have chain tension adjusted by a Ducati Dealer
or authorised Service Centre.
Turn the rear wheel slowly to find the position at
which the chain is at its most taut. With the
motorcycle on its side stand, press with a finger in
the centre of the bottom run of the chain and
measure the distance between the centres of chain
link pins and the aluminium swingarm. The distance
should be within 46 to 48 mm.
Important
If the drive chain is too tight or too slack, adjust
it so that tension reading will fall within specified
range
46 ÷ 48 mm
=
=

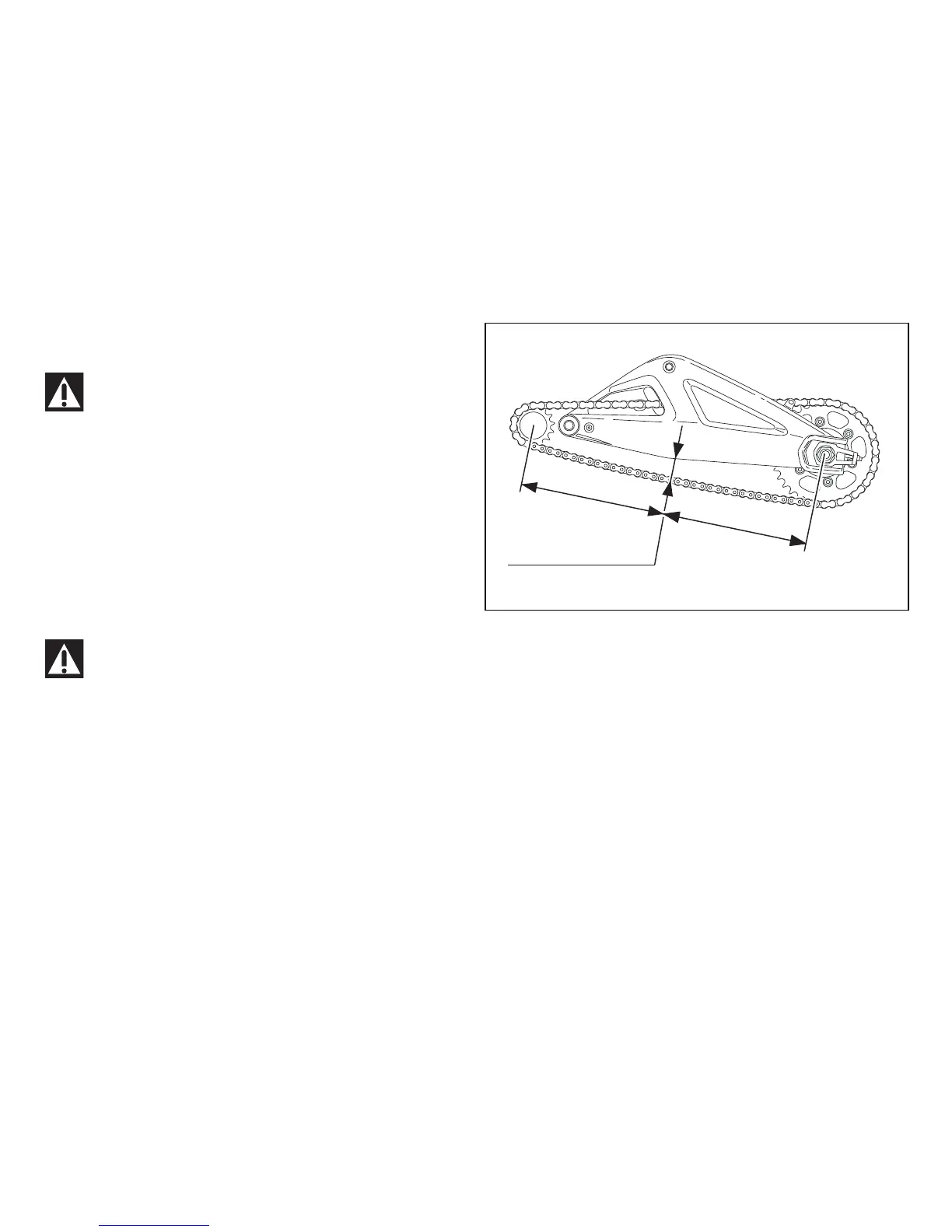

Fig. 105
132

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
