Ducati MONSTER 696 User Manual

Charging and maintenance of the battery
during winter storage

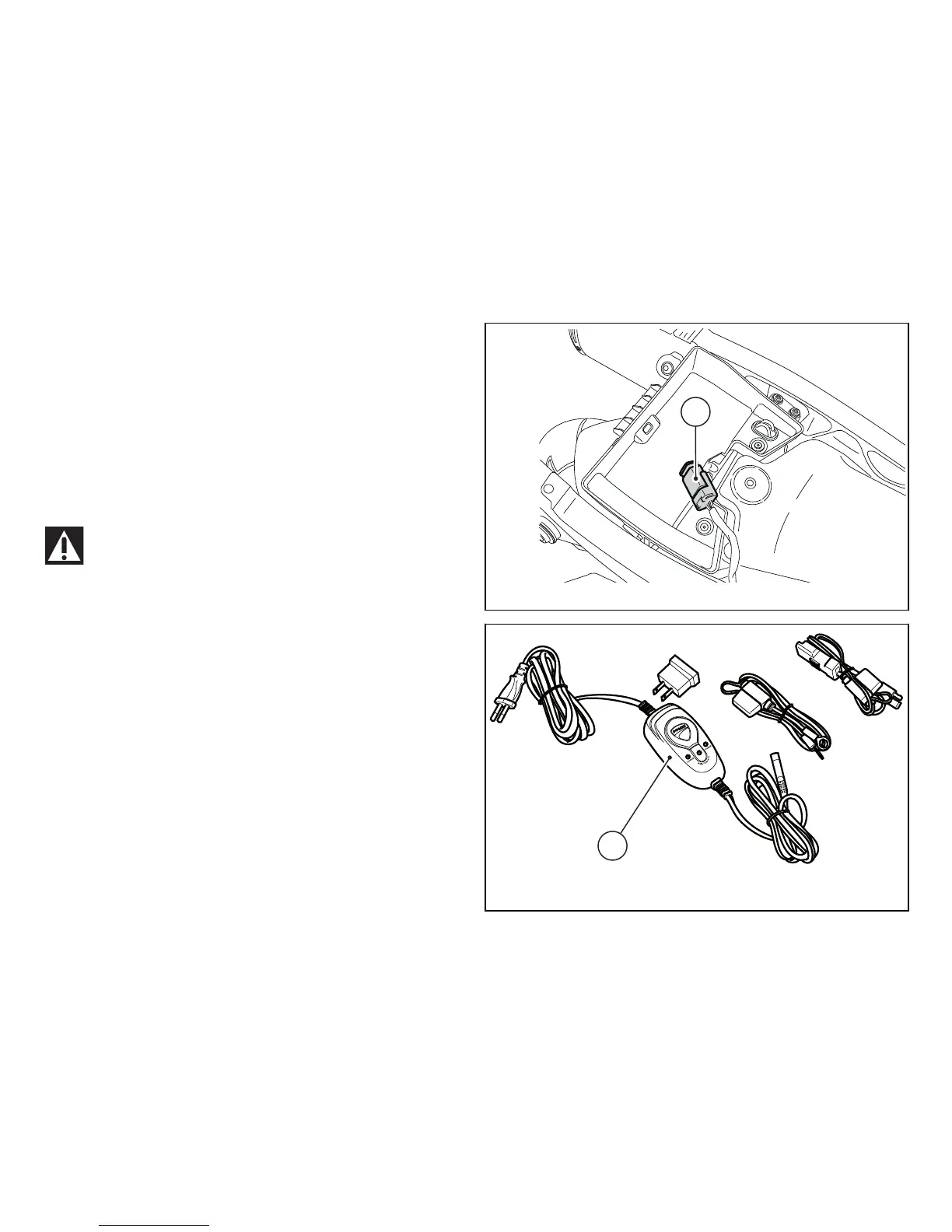

Your motorcycle is equipped with a connector (1) to
which you can connect a special battery charger (2)
(Battery maintainer kit part no. 69924601A - various
countries; Battery maintainer kit part no.
69924601AX - for Japan, China and Australia only)
available from our sales network.
Important
If battery is not kept at a minimum charge level
by a suitable battery charge maintainer, sulphation
may occur and this is an irreversible phenomenon
causing decreasing battery performance.
1
Fig. 68
2
Fig. 69
111

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
