Ducati MONSTER 696 User Manual

Beam setting

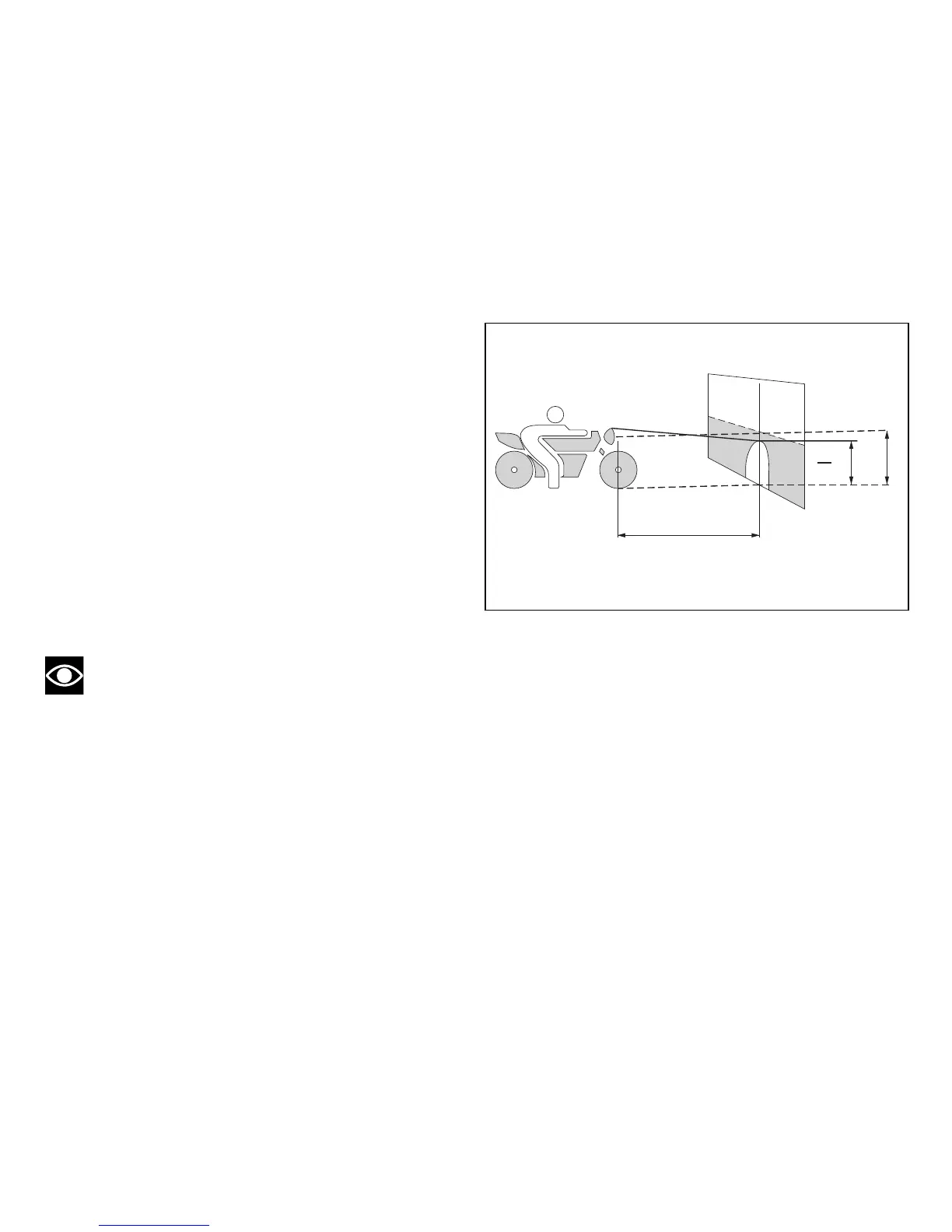

To check the headlight aim, place the motorcycle
upright with the tyres inflated to the correct pressure
and one person sitting astride the motorcycle. The
motorcycle should be perfectly vertical, with its
longitudinal axis at right angles to a wall or screen at
a distance of 10 metres. Draw a horizontal line at the
height of the centre of the headlamp and a vertical
one at the longitudinal axis of the motorcycle. If
possible, perform this check in dim light. Switch on
the low beam. The height of the upper limit between
the dark area and the lit area must not be more than
nine tenths of the height of the centre of the headlight
from the ground.
Note
This is the procedure specified by Italian
regulations for checking the maximum height of the
light beam. Owners in other countries will adapt said
procedure to the provisions in force in their countries.
10 m
9
10
x
x
Fig. 108
136

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
