Ducati MONSTER 696 User Manual

Replacing the bulbs
Before replacing a burnt-out bulb, make sure that the
new one matches the voltage and wattage
specifications in paragraph “Electric System” page
162.
Important
Have the bulbs changed at a Ducati Dealer or
authorised Service Centre.
Loosen the screw (1) and detach the lens (2) from the
turn signal support.
The bulb is of the bayonet-type: press and rotate
anticlockwise to remove. Fit the spare bulb by
pressing and turning clockwise until it clicks. Refit the
cup by inserting the tab into the corresponding slot in
the turn signal support. Refit and tighten the screw
(1).
1
2

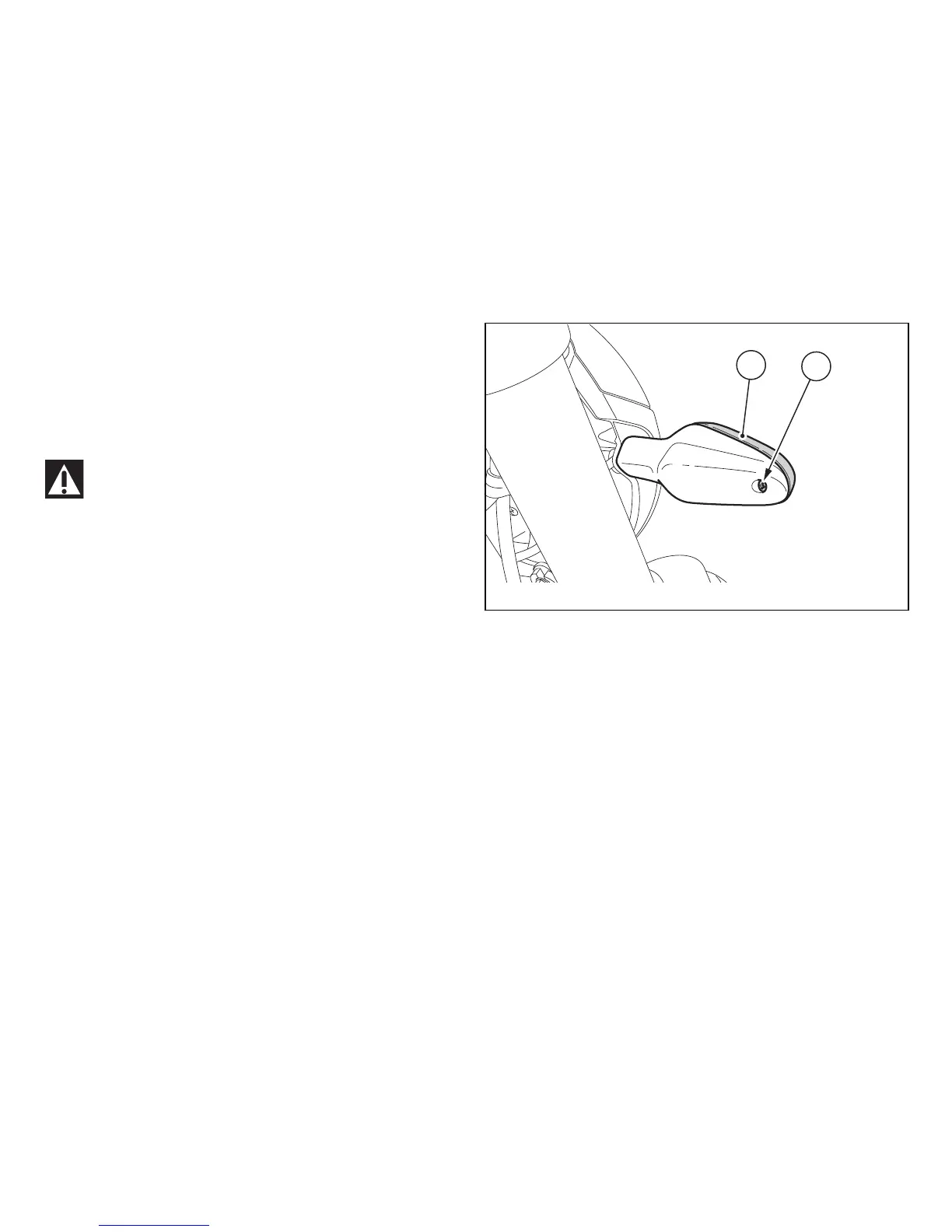

Fig. 107
135

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
