Ducati MONSTER 696 User Manual

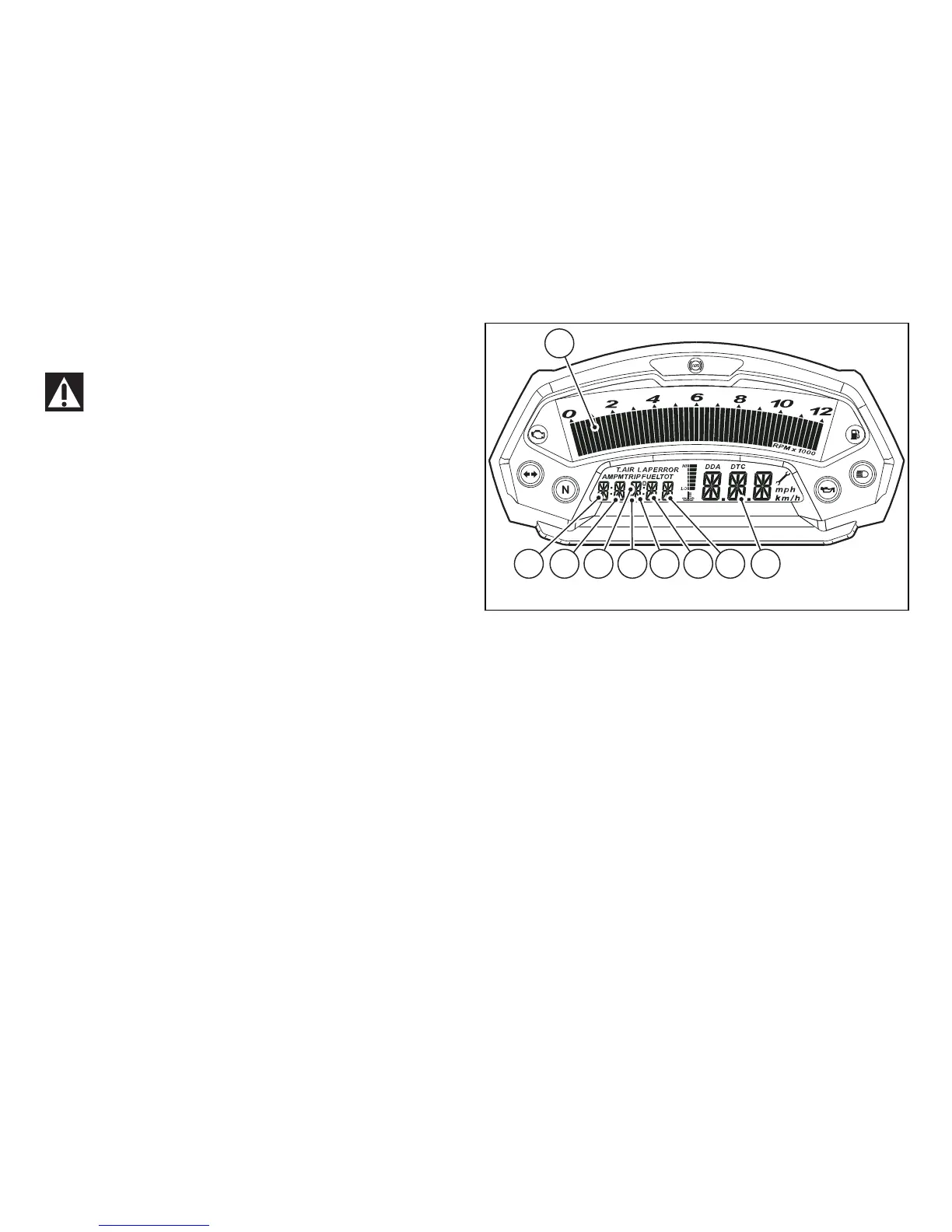

LCD - Main functions
Warning
Stop the motorcycle before using the
instrument panel controls. Never operate the
instrument panel controls while riding.
1) SPEEDOMETER.
Gives road speed.
2) ODOMETER.
Gives total distance covered.
3) TRIP METER.
Indicates distance covered since the meter (TRIP)
was last reset.
4) TRIP FUEL METER.
Gives total distance travelled on fuel reserve.
5) CLOCK.
6) AIR TEMPERATURE INDICATOR.
7) LAP TIMER.
8) ENGINE RPM INDICATOR (RPM).
9) LAP TIME (LAP).
8
45 96 2 3 17
Fig. 5
23

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
