Ducati MONSTER 696 User Manual

Seat lock
OPENING
Insert the key in the lock and simultaneously apply
downward pressure in the area of the catch to release
the pin. Pull the seat backwards to release it from the
front catches.
CLOSING
Make sure all parts are correctly arranged and
secured in the underseat compartment. Insert the
front ends of the seat base under the U bolt in the
frame, then push the rear end of the seat until you
hear the bolt in the lock click into place. Make sure
that the seat is firmly secured to the frame and
remove the key from the lock.

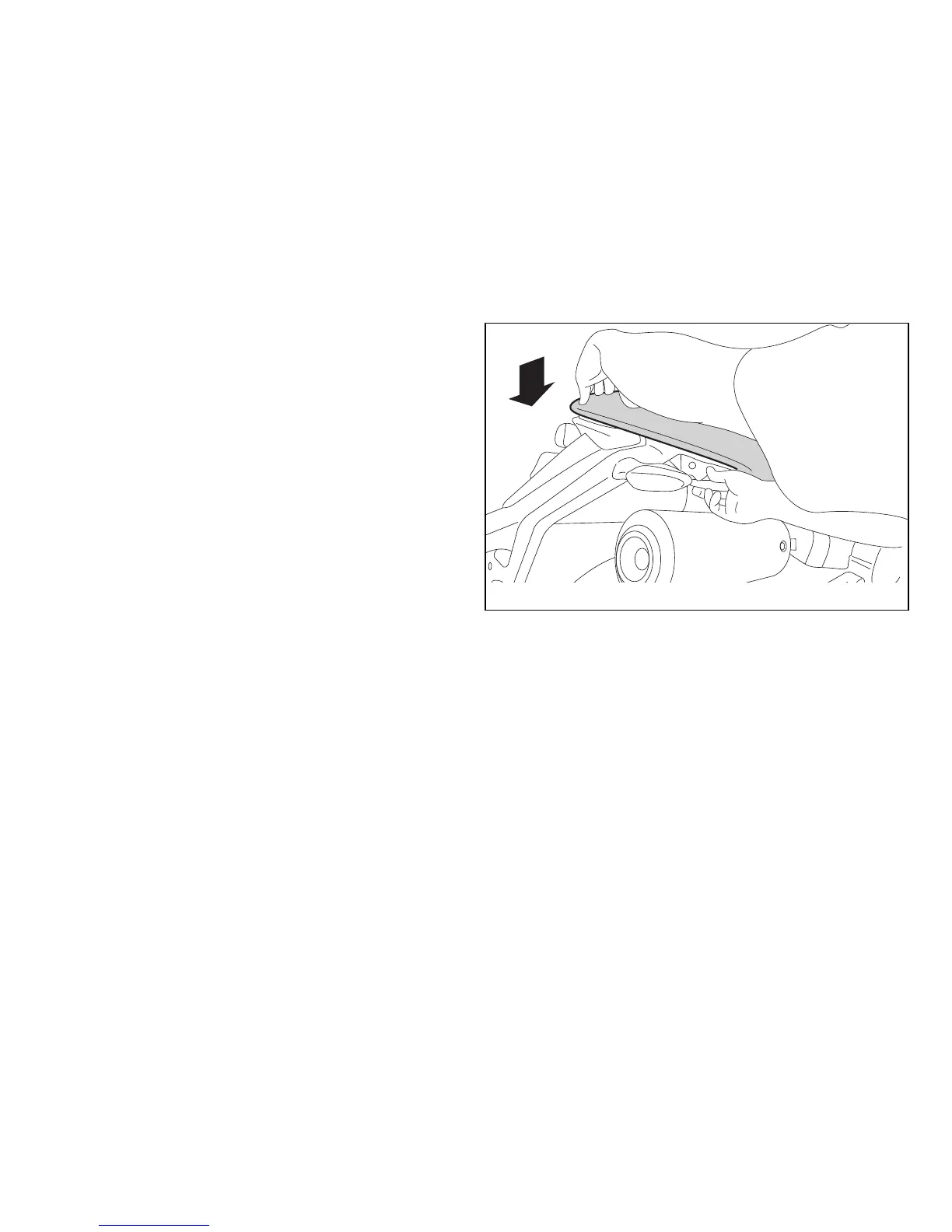

Fig. 50
86

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
