Ducati MONSTER 696 User Manual

Refitting the battery
Important
For battery reassembly, ALWAYS contact a
Ducati Dealer or authorised Service Centre.
Install the battery in the battery support and secure it
with the elastic retaining strap (19).
Warning
Connect the positive lead (20) to the positive
terminal and the negative lead (21) to the negative
terminal, as shown in the figure
Insert the screws (22) in the terminals (20) and (21),
always starting with the positive terminal (red lead).
Warning
Position the leads (20) and (21) as shown in the
photo.
Tighten the screws (22) to a torque of 10 Nm ± 10%.
Apply grease around the battery terminal clamps to
prevent oxidation.
22
21
19
20

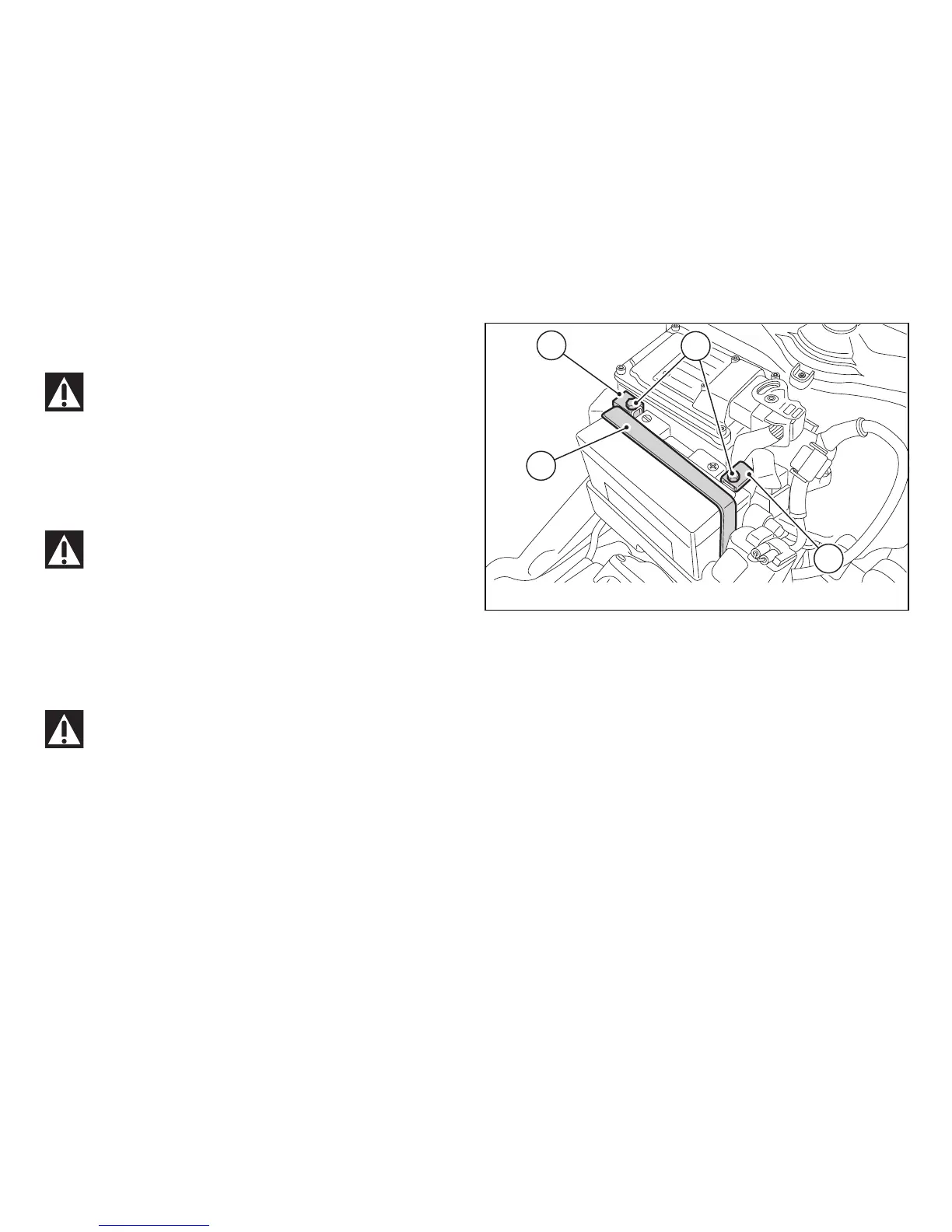

Fig. 85
121

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
