Ducati MONSTER 696 User Manual

Gear change pedal
The gearchange pedal has a central position N, with
automatic return, and two directions of movement:
down = press down the pedal to engage the 1
st
gear
and to shift down.
The N light will go out;
upwards= lift the pedal to engage 2
nd
gear and then
3
rd
, 4
th
, 5
th
and 6
th
gears.
Each time you move the pedal you engage the next
gear up, one gear at a time.
1
2
3
4
5
6
N

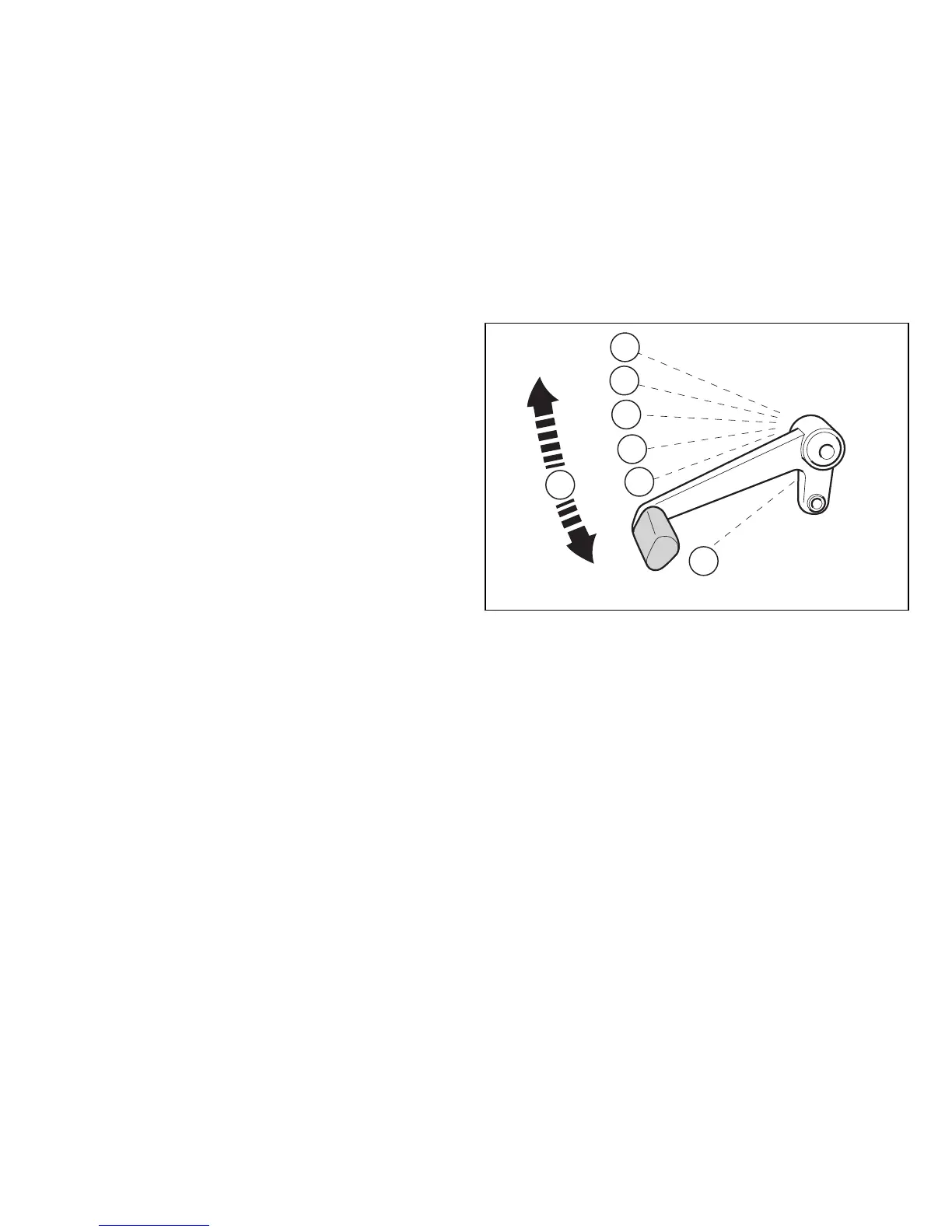

Fig. 45
81

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
