Ducati MONSTER 696 User Manual

Clutch lever
Lever (1) disengages the clutch. It features a dial
adjuster (2) for lever distance from the twistgrip on
handlebar.
To adjust it, keep lever (1) fully extended, and turn
knob (2), turning it in correspondence of one of the
four foreseen positions. Keep in mind that position
no. 1 corresponds to the maximum distance between
the lever and the twistgrip, whereas position no. 4
corresponds to the minimum distance.
When the clutch lever (1) is operated, drive from the
engine to the gearbox and the drive wheel is
disengaged. Using the clutch properly is essential to
smooth riding, especially when moving off.
Warning
Set clutch lever when motorcycle is stopped.
Important
Using the clutch properly will avoid damage to
transmission parts and spare the engine.
1
4
2
3
1
2

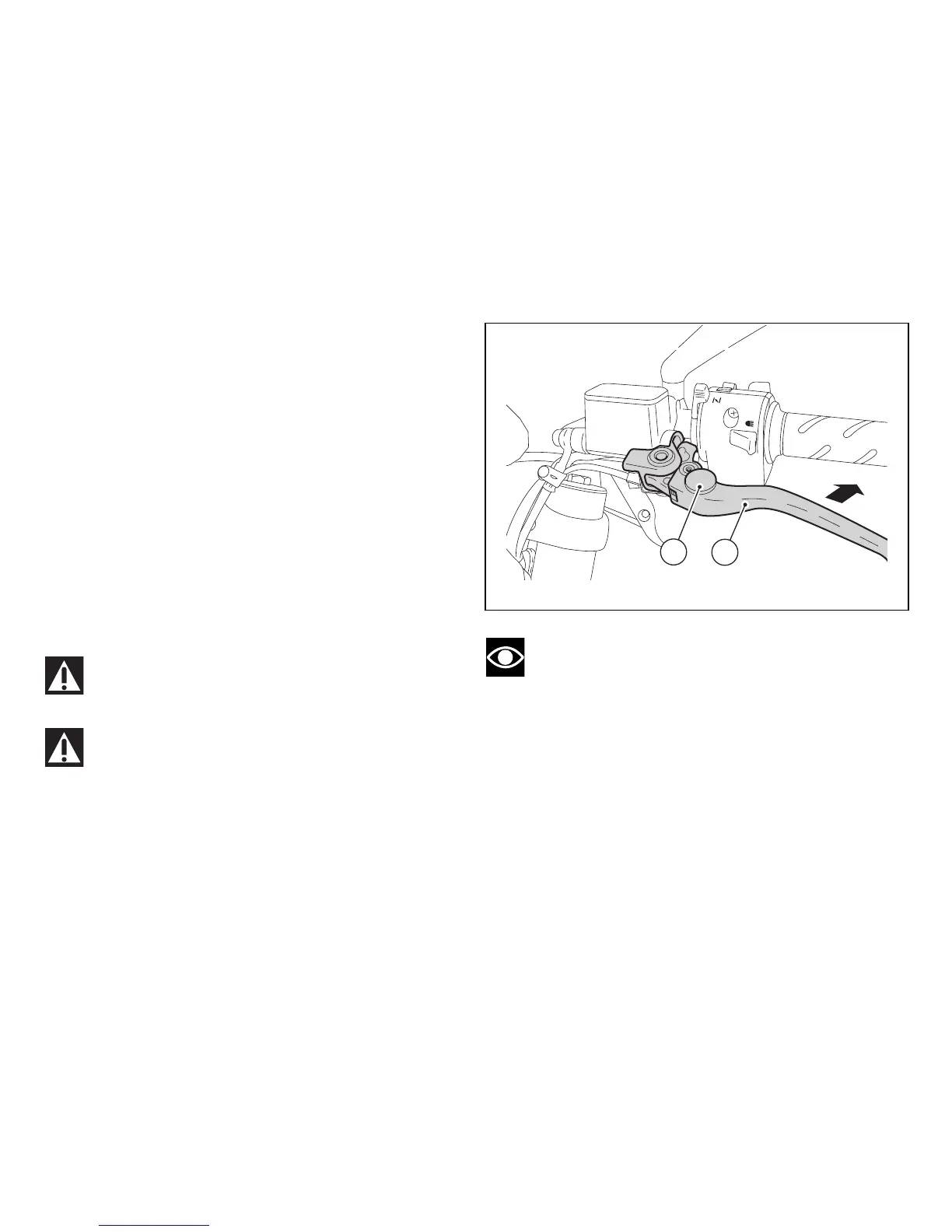

Fig. 39
Note
The engine can be started with the side stand
down and the gearbox in neutral. If starting with a
gear engaged, pull in the clutch lever (in this case the
side stand must be up).
75

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
