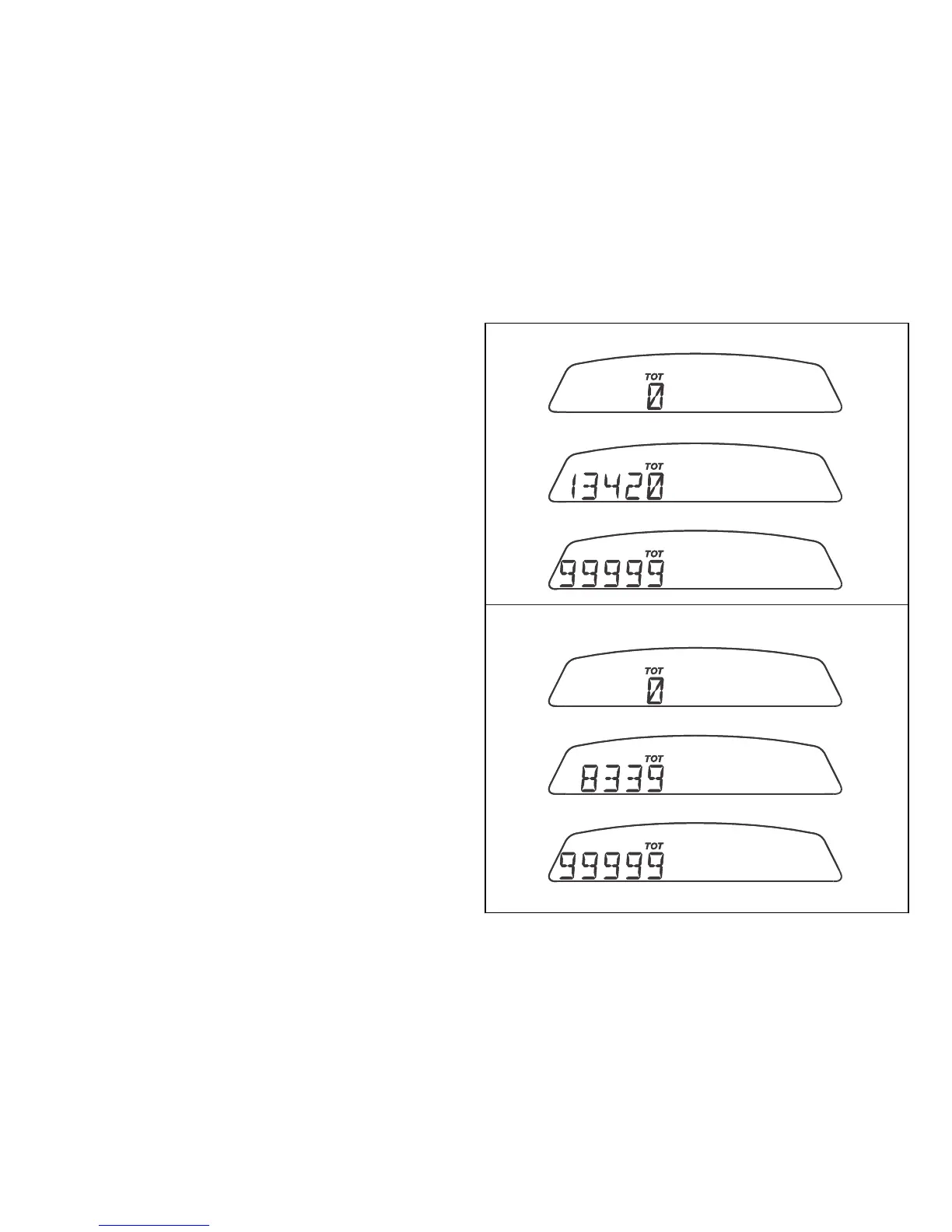

“Odometer” total mileage indicator
This function shows the total distance covered by the
vehicle.
Upon Key-On, the system automatically enters this
function.
The reading is saved permanently and cannot be
reset under any circumstances.
If the distance travelled exceeds 99999 km (or 99999
miles), the value “99999” will be displayed
permanently.
EU, CND, FRA, JAP versions
UK, USA versions
Fig. 10
29

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
