Ducati MONSTER 696 User Manual

Instrument panel (Dashboard)
Instrument panel
1) LCD.
2
) REV COUNTER (rpm).
Shows the engine rotation speed/minute (rpm).
3) NEUTRAL LIGHT N (GREEN).
Comes on when in neutral position.
4) LOW FUEL LIGHT
(AMBER YELLOW).
Comes on when fuel is low and there are about 3.5
litres of fuel left in the tank.
5) TURN INDICATOR LIGHTS
(GREEN).
Illuminates and flashes when the turn indicator is in
operation.
If a turn signal does not work (ex. burnt out bulb) its
incorrect operation is signalled by making the light
flash twice as fast as in comparison to correct
operation.
5
2 4
3 1 6 7
10
9
8

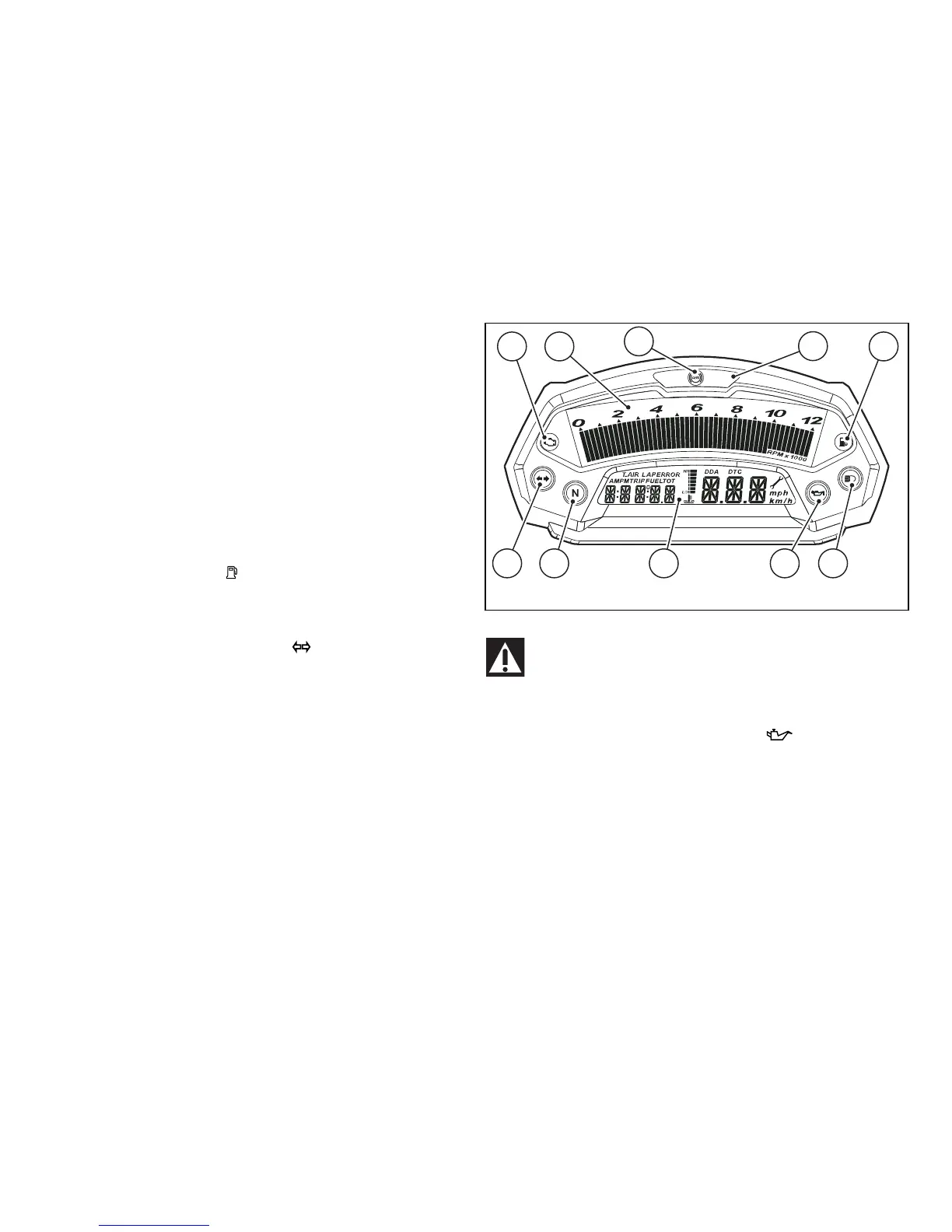

Fig. 3
Important
If this light (6) stays on, stop the engine or it may
suffer severe damage.
6) ENGINE OIL PRESSURE LIGHT
(RED).
Comes on when engine oil pressure is too low. This
light should come on when the ignition is switched to
ON and normally goes out a few seconds after engine
starts.
It may shortly come on when the engine is hot,
however, it should go out as the engine revs up.
19

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
