Ducati MONSTER 696 User Manual

Front brake lever
Pull in the lever (2) towards the twistgrip to operate
the front brake. The system is hydraulically operated
and you just need to pull the lever gently.
The control lever has a knob (3) for adjusting the
distance between lever and twistgrip on the
handlebar.
To adjust it, keep lever (2) fully extended, and turn
knob (3), turning it in correspondence of one of the
four foreseen positions. Keep in mind that position
no. 1 corresponds to the maximum distance between
the lever and the twistgrip, whereas position no. 4
corresponds to the minimum distance.
Warning
Before using these controls, read the
instructions in "Moving off".
Warning
The front brake lever must be adjusted when
the motorcycle is stationary.
1
4
2
3
2
3

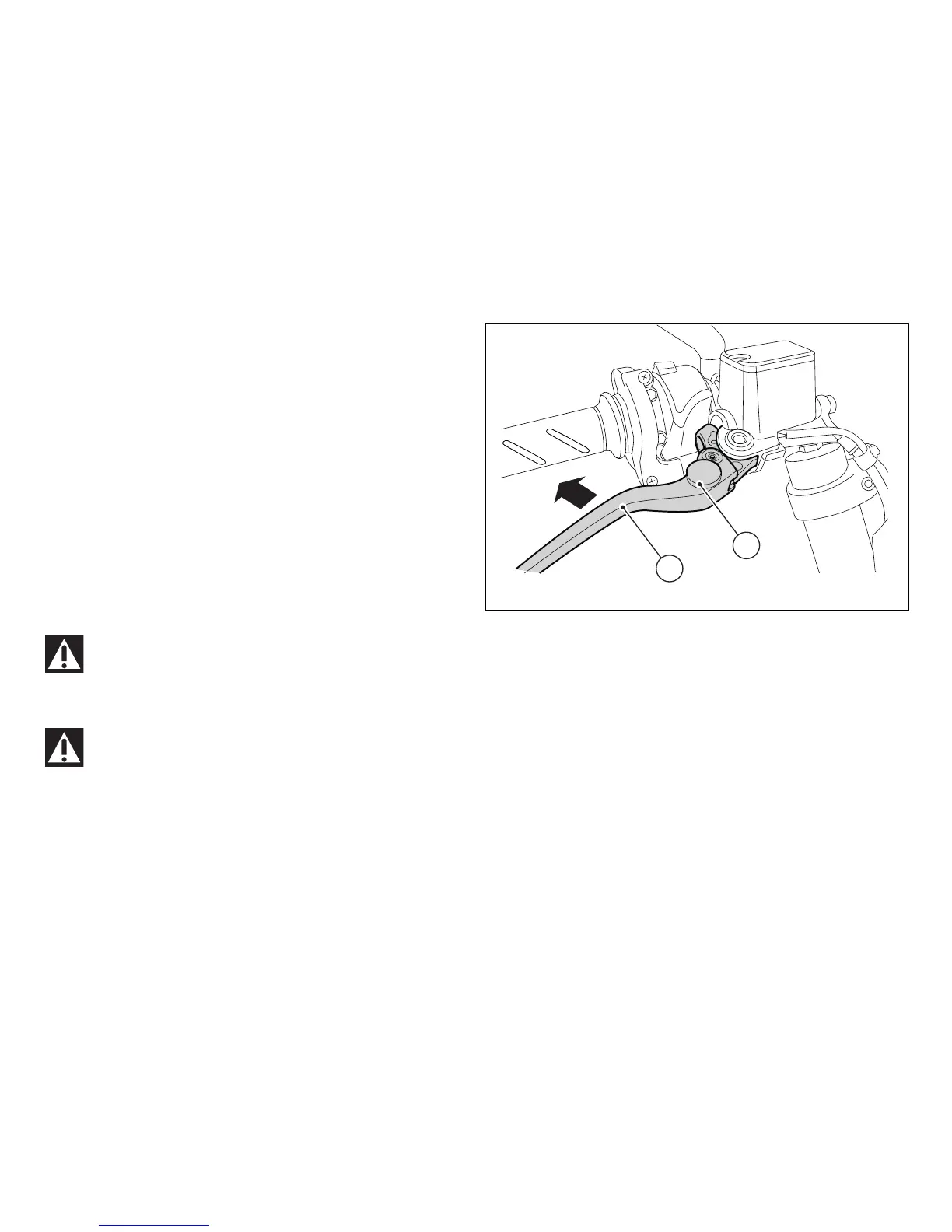

Fig. 43
79

Ducati MONSTER 696 Specifications

General

Displacement	696 cc
Bore x Stroke	88 x 57.2mm
Compression Ratio	10.7:1
Power	80 hp (59 kW) @ 9000 rpm
Transmission	6-speed
Frame	Tubular steel Trellis frame
Front Brake	2 x 320 mm discs, 4-piston radial calipers
Rear Brake	245 mm disc, 2-piston caliper
Seat Height	770mm (30.3 in)
Engine Type	L-Twin, 2 valves per cylinder Desmodromic
Torque	69 Nm (51 lb-ft) @ 7750 rpm
Fuel System	Electronic fuel injection, 45 mm throttle body
Exhaust	2-1-2 system with catalytic converter and lambda probe
Front Suspension	43 mm upside-down forks
Rear Suspension	Progressive with preload and rebound adjustable monoshock
Dry Weight	161 kg (355 lb)
Fuel Capacity	15 L (3.9 US gal)
