Durr Dental Vector Paro User Manual

15 Maintenance
15.1 Service kit
The service kit has been configured for the
Vector System.
The service kit contains spare parts and tools,
which can be used for maintenance and repairs.
16
32
31
33
34
30

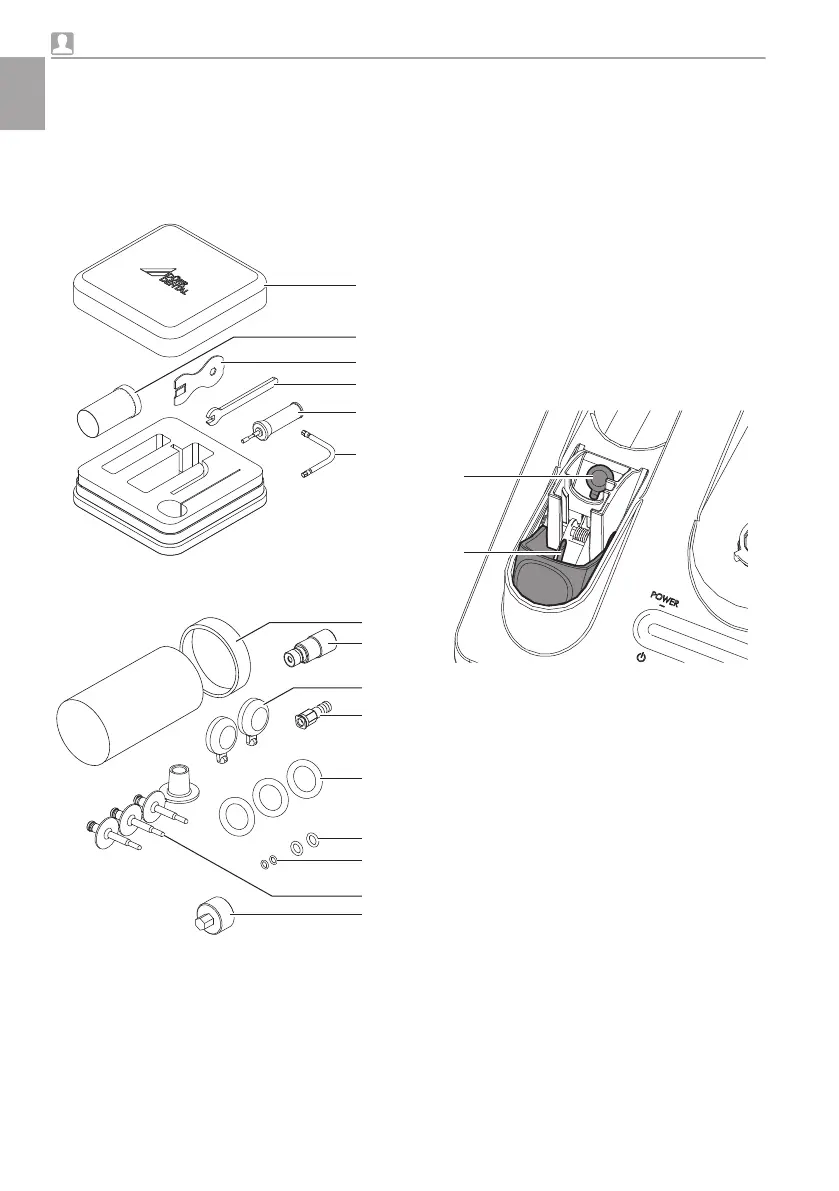

Fig. 1: Service kit
35
23
37
25
22
39
30
36
38
Fig. 2: Container for small parts with content
16 Service kit
22 O-rings
23 Interchangeable bushing, mounted
25 Seals, green
30 Container for small parts
31 Combination wrench for sealing screw
32 Flat wrench SW5
33 Nozzle torque wrench
34 Test tool, SW3.5, for torque wrench in the
tool kit cover
35 Sealing screw
36 Rubber seal in piercing mechanism
37 O-Rings for valve in fluid container*
38 Assembly device for the support seal of the
nozzle
39 Adapter for tool kit
15.2 Changing the seal
❯
Change the rubber seal in the piercing mecha-
nism when visible signs of wear become
apparent.
❯
Replace the rubber seal in the piercing mecha-
nism immediately if it is missing.
29
28
28 Piercing mechanism
29 Rubber seal
