11Service Guide: EFI Fiery Central integrated server
Using the Fiery Central integrated server
Buttons
Network status LEDs
Two LEDs next to the Ethernet connector indicate the network speed. When a data transfer occurs between the FC
integrated server and the network, the appropriate LED(s) blink to indicate network activity.
Starting, shutting down, restarting, and rebooting
The customer will generally leave the FC integrated server on all of the time. Power off the FC integrated server when
you need to service it and before you remove or attach any cables to it.
Definitions
•
Restart Fiery Central (soft reset)—Resets the FC integrated server server software, but does not reboot the entire
system. Network access to the FC integrated server is temporarily interrupted and all currently processing jobs are
aborted and may be lost.
• Reboot System (hard reset)—Shuts down all FC integrated server activity properly, and then reboots.
• Shut Down System—Shuts down all FC integrated server server software and powers off the system. Always select
this option to power off the system.
Always use the following procedures when shutting down, restarting, or rebooting the FC integrated server.
Note: Use the reset button on the front of the FC integrated server only if the system is unresponsive to keyboard or
mouse actions.
Line selection buttons Use the four line selection buttons on the right side of the control panel to select the command
displayed on the corresponding line of the LCD display.
Up and Down buttons Use to scroll to different screens in multi-screen lists or prompts.

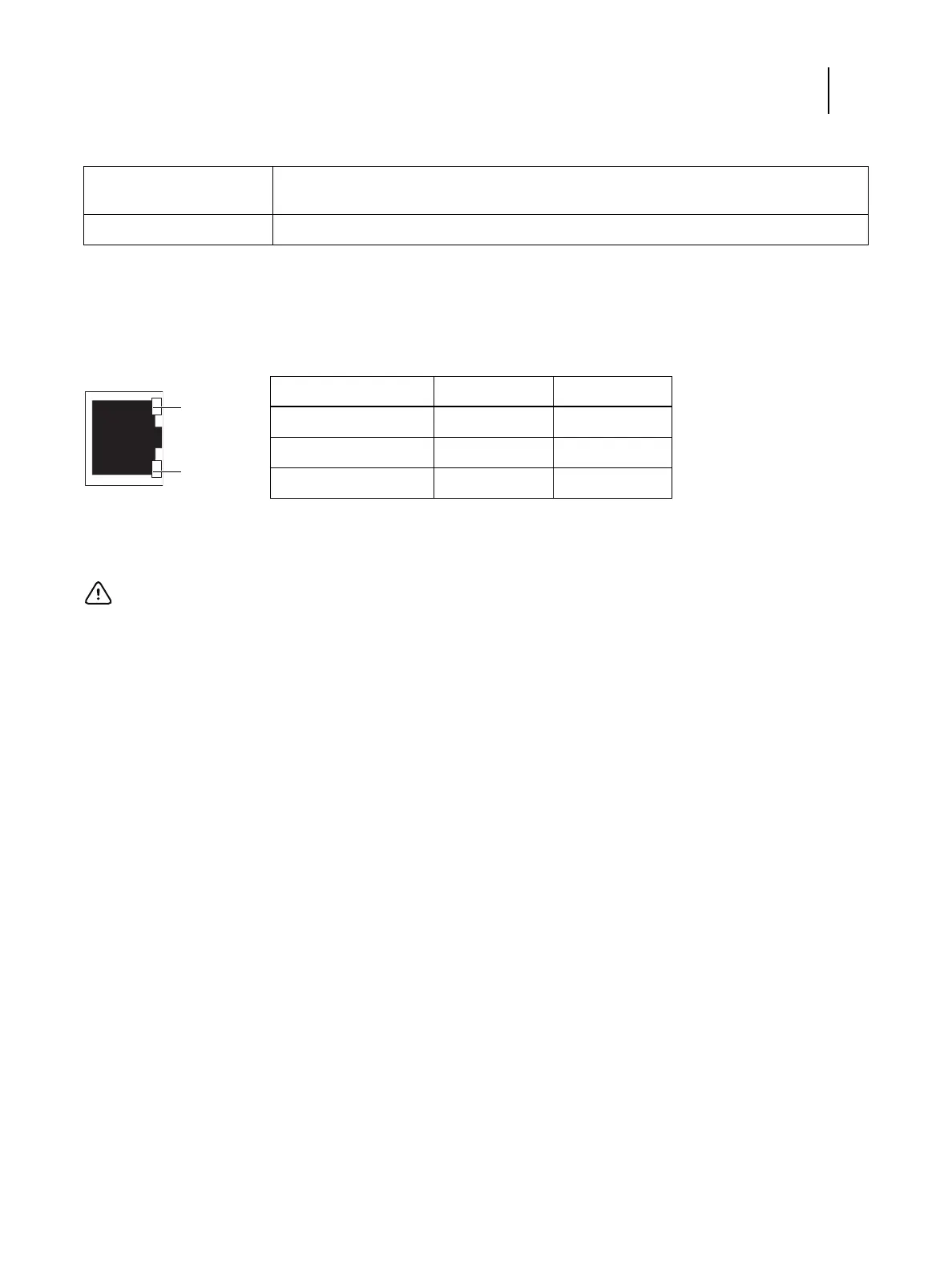

Network link speed LED 1 LED 2
10 Megabits/second Off Green
100 Megabits/second Green Green
1000 Megabits/second Amber Green
Important: Network connectivity is supported only through the upper RJ-45 port on the FC integrated server
connector panel. The lower port is not used.
LED 2
LED 1
Ethernet network port
(Upper RJ-45)
