42Service Guide: EFI Fiery Central integrated server
Replacing parts

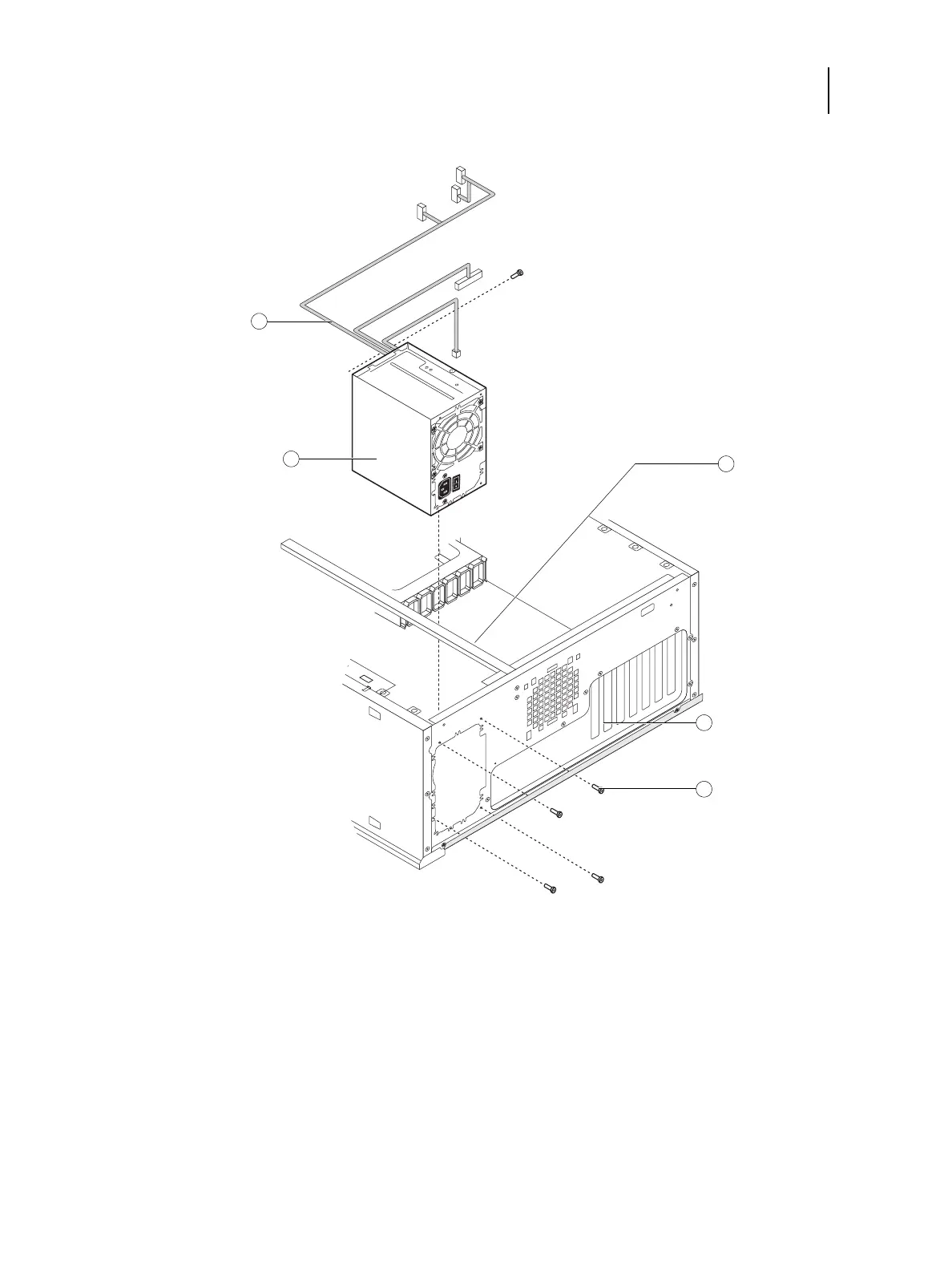

Figure 17: Removing/replacing the power supply
To replace the power supply
1 Support the power supply inside the chassis and align the mounting holes.
1 Power supply cables
2Power supply
3 Chassis support beam
4 Connector panel
5 Screw (1 of 5)
1
2
3
4
5
