49Service Guide: EFI Fiery Central integrated server
Replacing parts
• Front USB ports and cables
Note: For more information about servicing the DVD drive, see page 52.

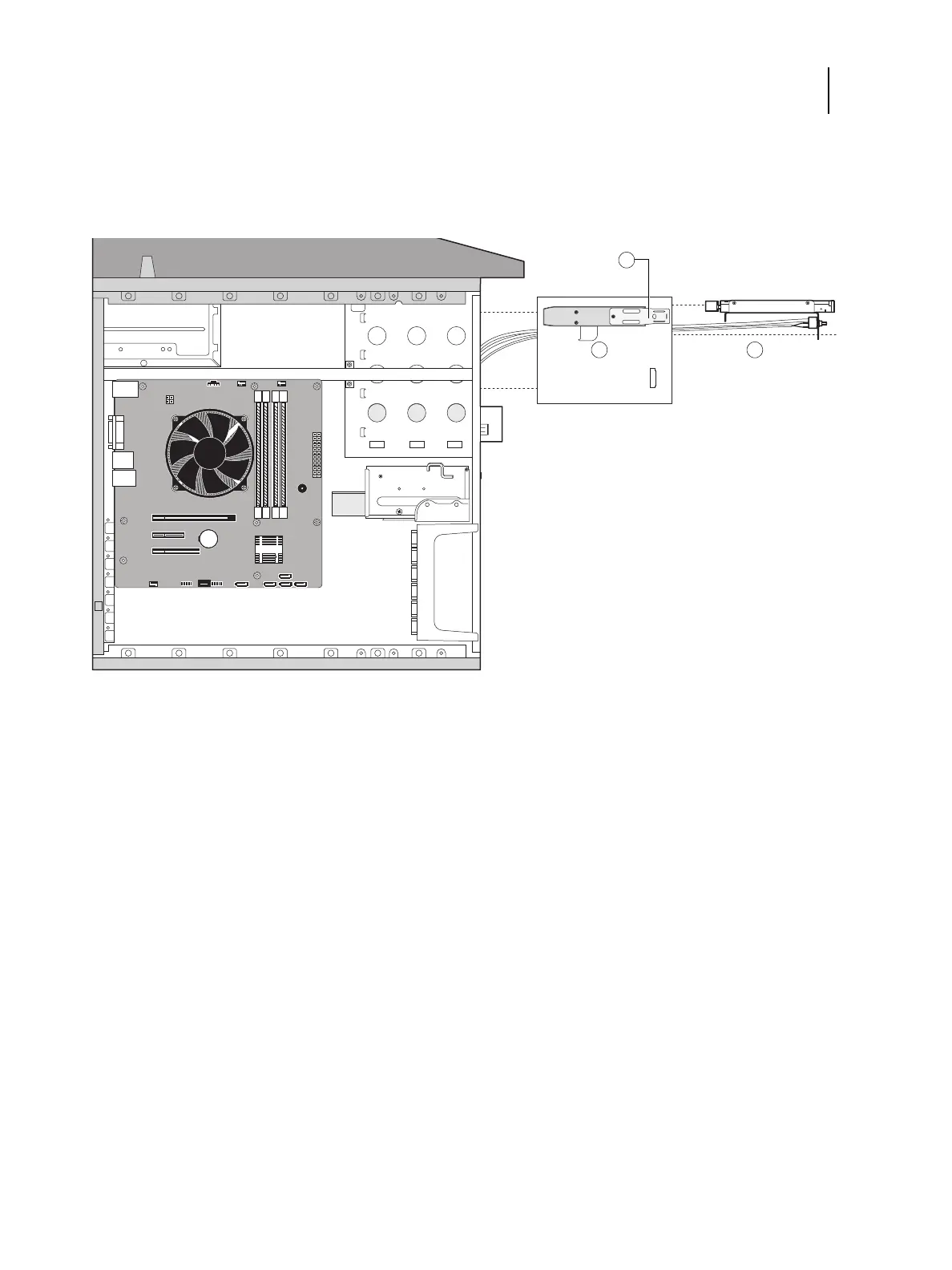

Figure 21: component sled with switch bank assembly
To remove the switch bank assembly
1 Shut down, and then open the FC integrated server (see page 18).
To remove the switch bank assembly, you must remove the left, right, and front panels.
2 Disconnect the following cables:
• Power and data combination cable from the back of the DVD drive
• Power and reset button cables from motherboard connector J15
• Speaker cable from motherboard connector J83
• Front panel USB port cable from motherboard connector J24
3 Remove the ferrite that is installed around the front panel USB port cables near the motherboard.
Carefully pry open the latch on the side of the ferrite and remove the ferrite from the cables. Set the ferrite aside so
that you can replace it later.
1 Guide latch (1 of 2)
2 Component sled
3 Switch bank assembly with DVD drive
Note: Printer interface and internal cables are not shown.
