22Service Guide: EFI Fiery Central integrated server

Replacing parts

4 Remove the panel from the chassis.

Carefully route the UIB cable out of the hole in the top of the chassis as you remove the top panel.

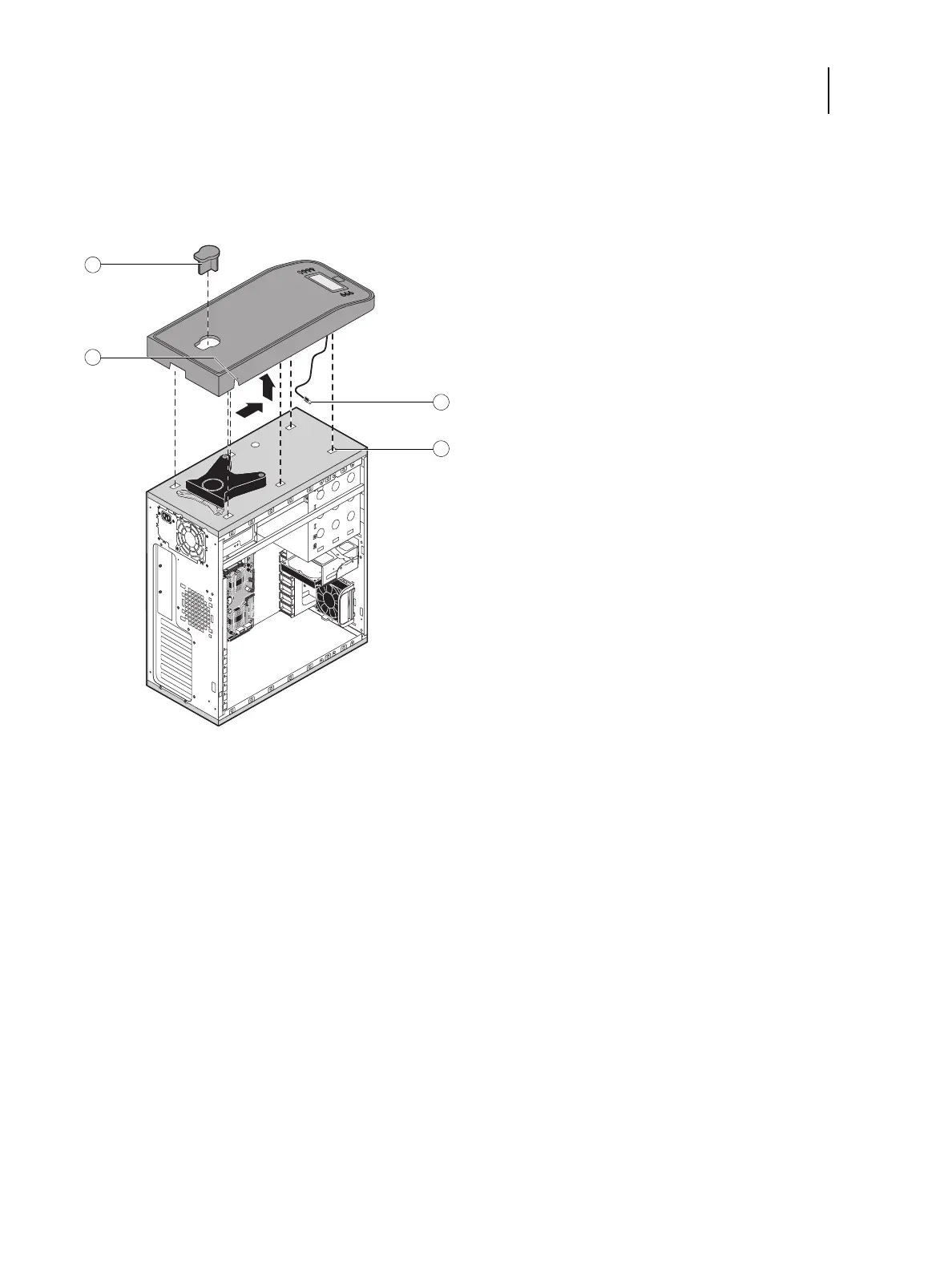

Figure 8: Removing/replacing the top panel

5 To replace the top panel, route the UIB cable through the hole in the top of the chassis and attach it to motherboard

connector J27.

6 Position the top panel on the top of the chassis.

Place the hooks on the underside of the panel into the slots in the top of the chassis, and then slide the top panel

toward the back of the chassis to engage the hooks.

Note: You may need to tap the front edge of the panel toward the back of the chassis to engage the panel

completely.

7 Replace the plug on the top panel.

Correctly align the plug, and then place it into the receptacle on the top panel. Secure the plug by replacing the

locking bolt through the cutout in the left side of the top panel.

1Plug

2Cutout

3UIB cable

4 Slot (1 of 4)
