FLEX-6000 Signature Series – Maestro User Guide

12 HOW TO OPERATE THE PANADAPTER / WATERFALL

12.1 HOW TO CREATE / DELETE A PANADAPTER / WATERFALL

Maestro runs with a minimum of one and a maximum of two Panadapters. To add the second

Panadapter, tap the upward pointing arrow at the bottom center of the display. To remove the

second Panadapter, tap the downward pointing arrow in the middle of the display.

12.2 HOW TO CREATE / DELETE A SLICE RECEIVER IN THE SECOND

PANADAPTER

When a second Panadapter is added to the radio, a Slice Receiver may also be added by Maestro if

either the A or B Slice is not in use at the time the Panadapter is added. If both Slices are active in

the first Panadapter, no Slice Receiver will be added when the second Panadapter is created. The

user can move either the A or B Slice Receiver to either the first or second Panadapter by repeated

presses of the A or B RX button.

12.3 HOW TO CHANGE THE PANADAPTER FREQUENCY (TUNE)

Each Panadapter can perform a pan function to adjust the frequency range that is displayed.

Touching and dragging within the Panadapter grid will reorient the frequencies being viewed on the

Panadapter in the direction that your finger moves. By moving your finger to the right, lower

frequencies are displayed, and vice-versa.

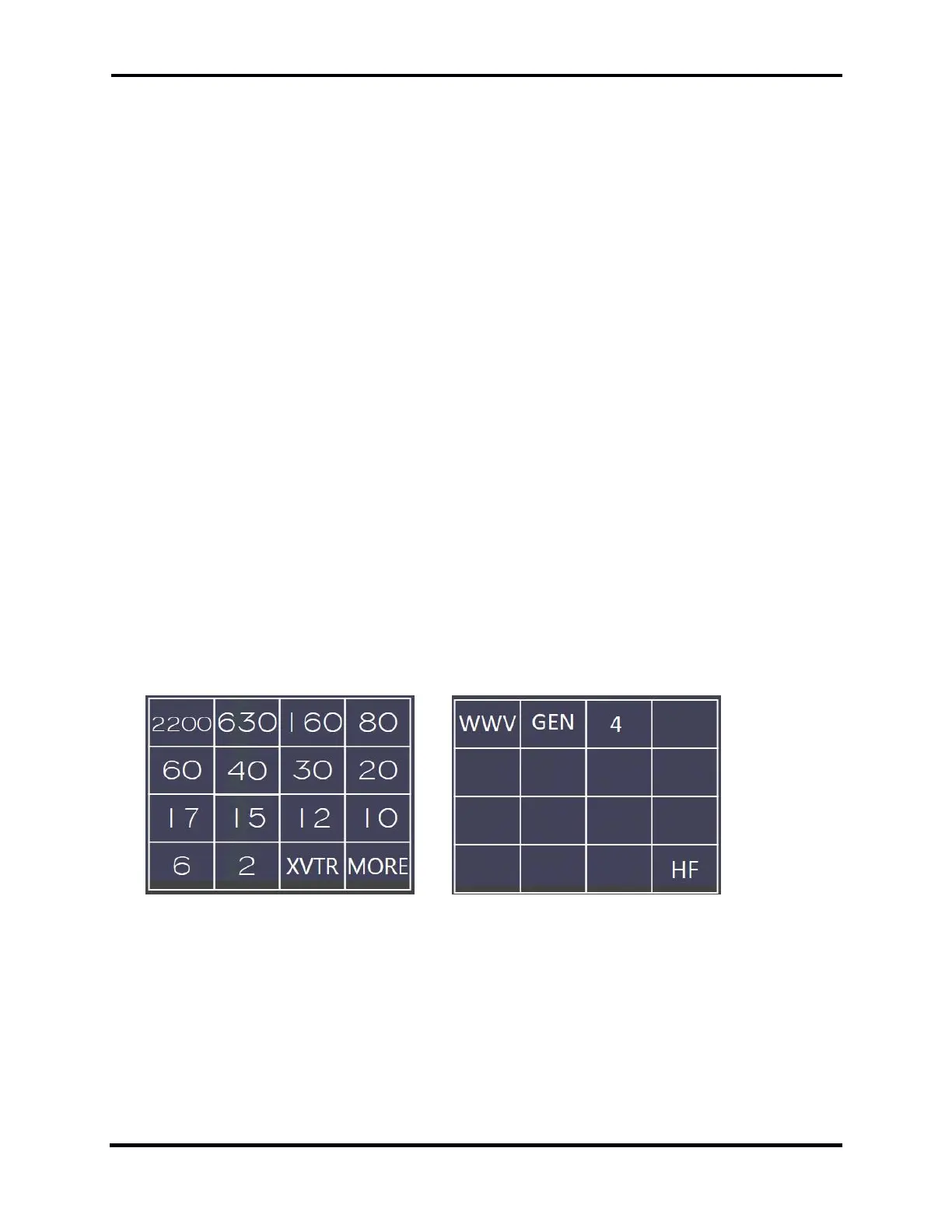

Opening a Slice Receiver Menu opens a band selection menu. Selecting a band from this list will

adjust the Panadapter to display all or part of the corresponding amateur radio band. Selecting

band buttons allows for rapid switching between views of the amateur radio bands. Tapping on the

XVTR button in the lower right swaps the buttons to a list of XVTR bands. Tap the HF button to

swap back.

<->

When switching between bands any Slice Receivers defined in the Panadapter are removed. If Slice

Receivers were present in the new band the last time the band was active on the radio, they will be

recreated. If no Slice Receivers were present, none are created.

12.4 HOW TO ZOOM A PANADAPTER

Each Panadapter has a zoom range up to a maximum of 14 MHz for the FLEX-6500 and FLEX-6700

or 7 MHz for the FLEX-6300 and down to a minimum of 1.5 kHz in bandwidth for the FLEX-6700 and

6kHz in bandwidth for the FLEX-6500 and FLEX-6300. There are multiple methods for adjusting the

zoom of the Panadapter.
