HP-GL2 Emulation
463
Appendix
15
Auto Layout
This section explains Auto Layout.
1. What is Auto Layout?
Auto Layout is a function that evaluates document size based on the HP-GL data
entered from the host system and enlarges/reduces it in line with the paper size to be
plotted so that the plotted data is laid out in the center of the paper. Using the Auto
Scale and Auto Layout functions enable you to print a document in the HP-GL mode
without regard for the document size and origin position.
All specification in Auto Layout can be made via the operation panel. The settings
cannot be made with advanced commands.
2. Activating the Auto Layout Function
Set the following items with the operation panel to activate the Auto Layout function.
z
Set the document size to AUTO. The default value is AUTO.
z
Set the Auto Layout to ON for setting the origin position. The default value is ON.
z
Set Scaling to ON. The default value is ON.
z
Select a method for obtaining the active coordinate area using the area determining
mode. The default value is AUTO.
z
Set the paper margin using Paper Margin. The default value is 0 mm.
z
Set the Scaling Mode. The default value is Paper Size.
3. Details on Setting Items
Details on each item are as follows.
îš„Document Size
Press the mode button and select AUTO under document size and it will be possible to
set Auto Layout to ON.

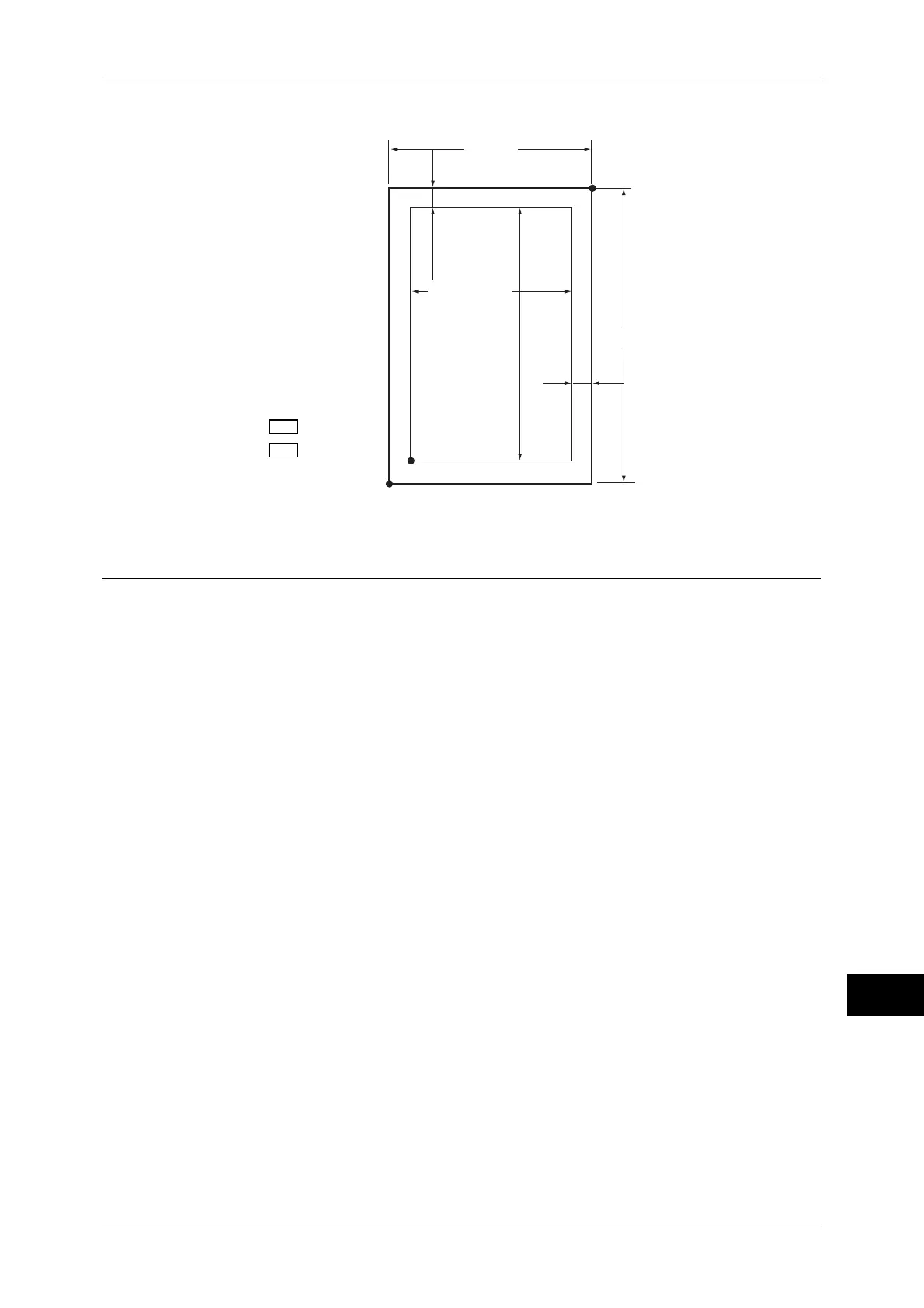

Width
Short-side
YU
(0, 0)
XR
Actual Paper
Printable Area
Top-right X, Top-right Y
Long-side
Height
Bottom-left X, Bottom-left Y
