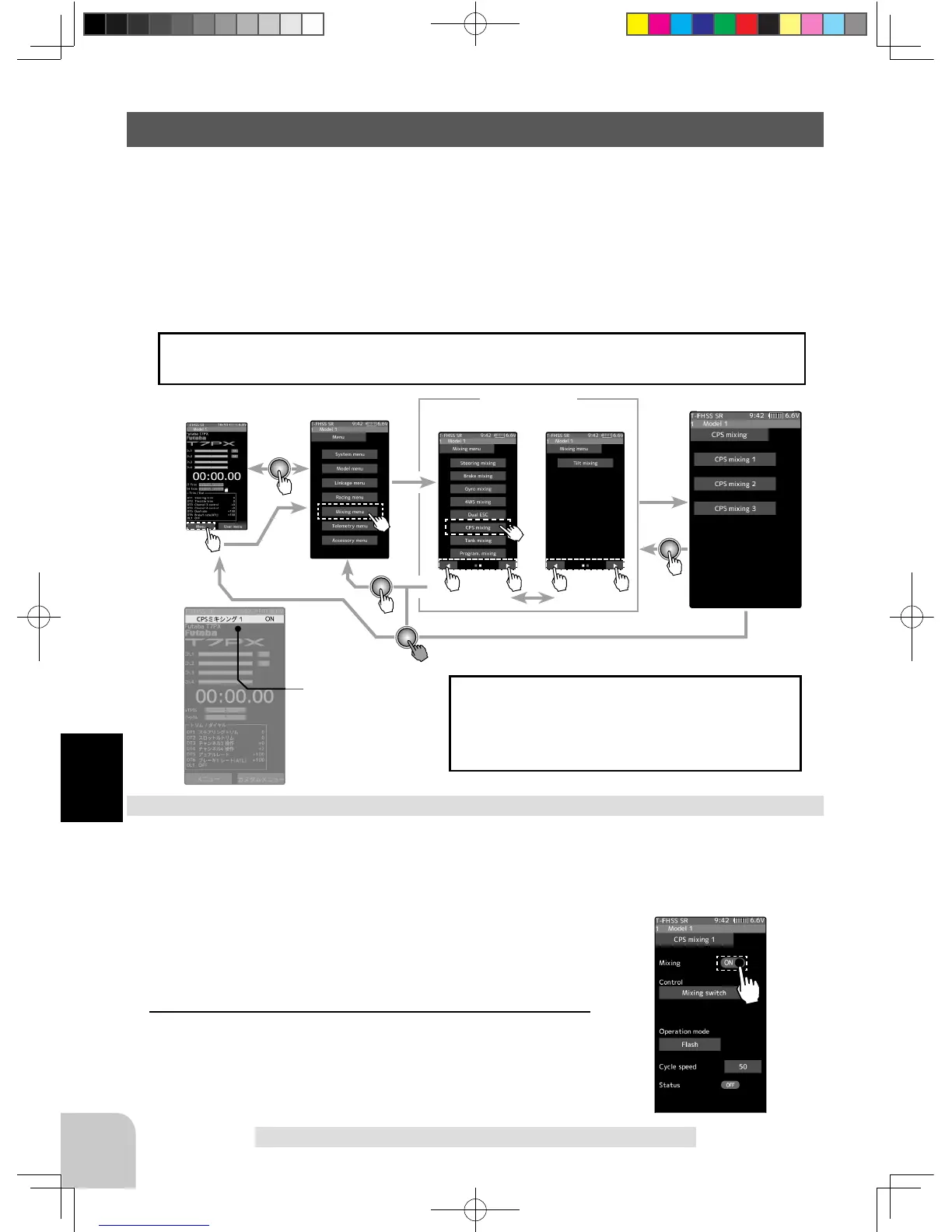

FUTABA 7PX User Manual

Home screen
Menu screen
Menu-2
Menu-1
Mixing menu
CPS mixing
Display the current
drive mode.
118
Function
CPS Mixing (1, 2, 3 )
CPS Mixing (1, 2, 3 )
This function controls the Futaba CPS-1 channel power switch. Normally, when using the
CPS-1 unit to light the vehicle dress-up and other illumination (LED) the CPS-1 unit with
LED connected is connected to a vacant switch channel and the LEDs are turned on and off
by switch while the vehicle is running. However, when the CPS mixing function is used, the
LED can be turned on and off and  ashed in step with steering and throttle operation, as
well as being turned on and off by switch. The  ashing speed (cycle) can also be set. For in-
stance, the LED can be  ashed as a brake light by throttle brake side operation. Three lines
of CPS mixing can be used.
The CPS-1 unit does not operate in SR mode. When using with the T - FHSS SR sys-
tem, connect it to the channel of the normal mode.
The mixing function is assigned to auxiliary
channels used by other mixing cannot be used.
When the number of channels is insuf cient,
cancel the other mixing.
(Preparation)
- CPS-1 connects to the receivers auxiliary channel.
- When the LEDs are turned on and off by switch, use the func-
tion select switch function (page 69) to set the switch to be
used.
- From the CPS Mixing screen, tap [CPS Mixing 1] / [CPS Mix-
ing 2] or [CPS Mixing 3] to display the setting screen.
Dual ESC mixing adjustment
1
(Function ON/OFF)
Tap "Mixing" (ON) or (OFF) to select ON / OFF.
"OFF" :Mixing function OFF
"ON" :Mixing function ON
Setting
- Tap (ON) / (OFF).
1M23N32602_7PX_E.indb 118 2017/08/02 14:17:32

FUTABA 7PX Specifications

General

Channels	7
Frequency	2.4GHz
Telemetry	Yes
Data Logging	Yes
Model Memory	40 models
Compatibility	T-FHSS, S-FHSS
System	T-FHSS
Display	4.3 inch color TFT LCD touch screen
