Please adjust it within the
range of mark.
High point spring can be removed
with radio pliers, etc.
Trigger slide
mounting screw
2.0x6 cap crew
23
Before Using
Adjustment
1
Using a 2.0mm hex wrench, loosen the trigger slide mounting screw by turning it slightly
counterclockwise.
Always loosen this screw.
2
Adjust the trigger slide position within the
marked range.
The high point spring can be removed by moving to
the farthest from the grip.
When the high point spring is removed, perform throt-
tle side correction by calibration function (page 184).
3
Retighten the mounting screw loosened at
step 1 and fasten the trigger slide.
Note:
If the trigger slide screw is turned too
much, the screw may fall out.

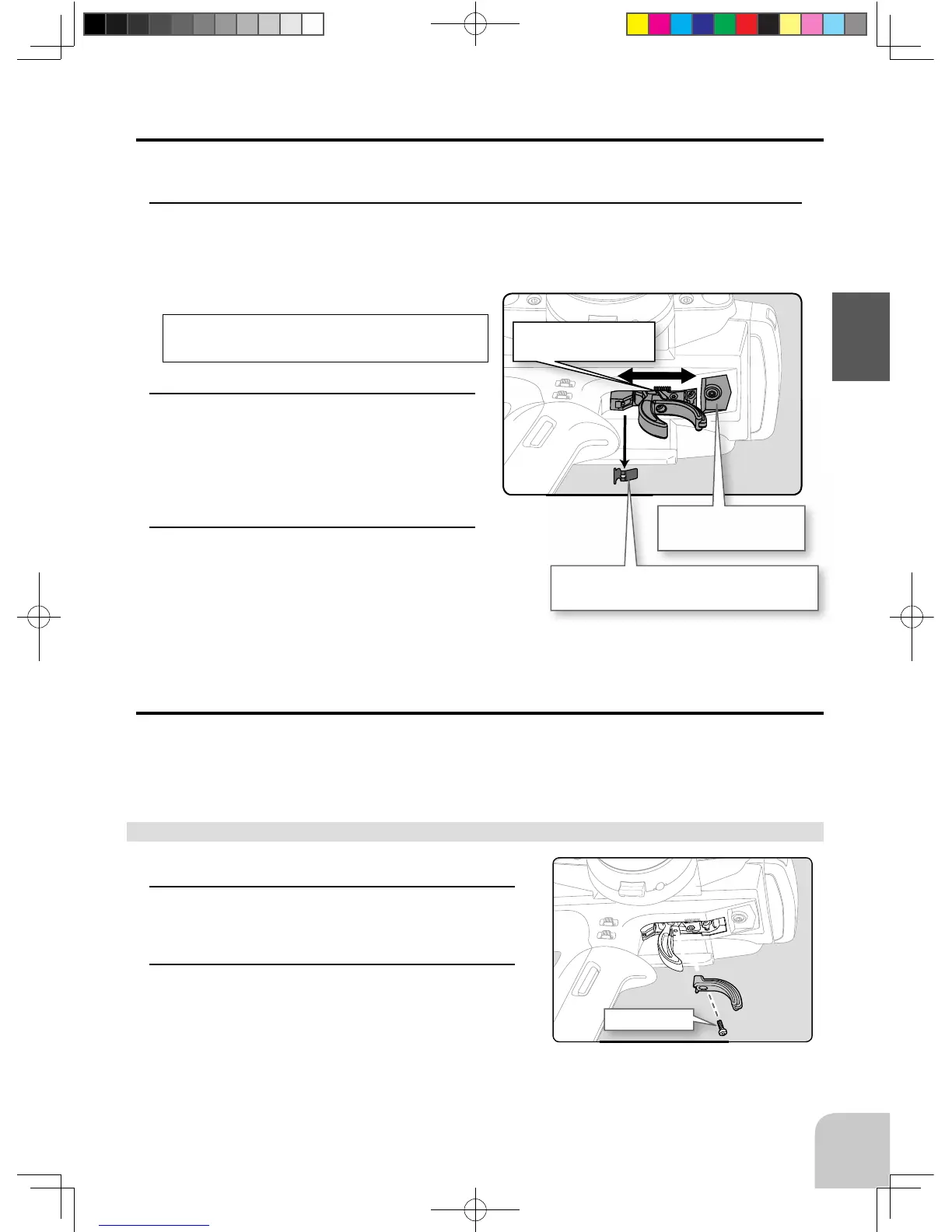

Trigger Slide Adjustment & Remove The High Point Spring
The throttle trigger position can be moved forward and backward.
Trigger brake lever replacement
The trigger brake lever is selected from a narrow nylon type and wide type. (Narrow type is
installed at the factory.)
*When the brake lever is changed, perform throttle side correction by adjuster function (page 184).
1
Hold the trigger, remove the brake lever mounting
screw using the 1.5mm hex wrench, and remove
the brake lever.
2
Using the 1.5mm hex wrench install the wide type
brake lever with the brake lever mounting screw.
Obtain a 1.5mm hex wrench. Remove the battery
from the transmitter.
Brake lever replacement
