FUTABA 7PX User Manual

The current system is displayed.
(T-FHSS SR /T-FHSS /S-FHSS /FASST)
When turned on by DSP switch, "Dis-
play" is displayed
T-FHSS /S-FHSS /FASST - Response type
(Digital servo /Analog servo)
T-FHSS SR - SR mode on/off
(SR mode setting channel is a red SR mark.)
*The figure above is partly processed for explanation, so it is different from the actual screen display.
Trim/dial lock display mark
20

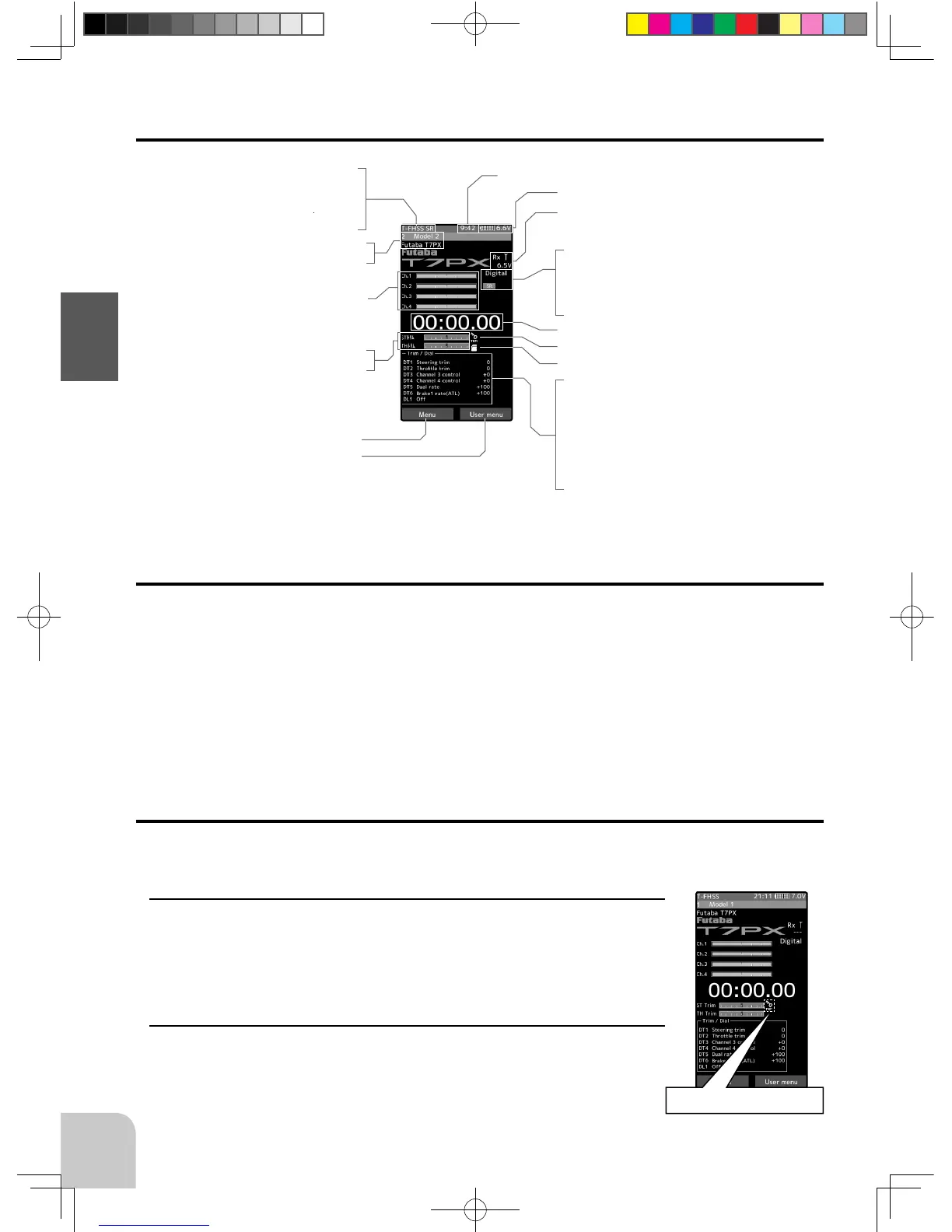

Before Using
Display When Power Switch Is Turned On
DT1
DT2
DT3
DT4
DT5
DT6
DL1
Total timer or clock display (H:M)
Battery voltage display
Upper: Steering trim display
Lower: Throttle trim display
Menu button
User menu button
Racing timer
Trim/dial lock display mark
Micro SD card mark
Function names and rate as-
signed to dials are displayed.
Model #, Model name (15 characters)
User name (15 characters)
Telemetry function
Receiver -> Transmitter
The reception strength is shown.
Servo operation of each channel can be
checked.
(S-FHSS system Ch.1 to Ch.7)
Power Off Forgotten Alarm & Auto Power Off
At T7PX initialization, if steering wheel, throttle trigger, push switch, edit button, or other
operation is not performed within 10 minutes, an audible alarm will sound and the message
"
Warning: Auto power off
"
will appear
(For details, see page 189.) .
If steering wheel, throttle trigger, push switch, edit button or other operation is performed, the
alarm is reset. Also turn off the power when the transmitter is not in use. If the alarm is not
reset, the auto power off function will automatically turn off the power after 5 minutes. If you
do not want to use this alarm and the auto power off function, they can be disabled by system
setting (
page 181 ).
Trim/Dial Lock
T7PX setup and operation by digital trim DT1, DT2, DT3, DT4, DT5 and DT6 and dials
DL1 can be prohibited.
Setting
1
When the HOME button is pressed for about 1 second at the initial
screen, a confirmation beep is generated and the trim/dial lock display
mark appears on the screen.
Clearing
1
Edit button lock and trim/dial lock can be cleared in the initial screen
state by the same method as the setting described above. (The trim/dial
lock display disappears from the screen.)
1M23N32602_7PX_E.indb 20 2017/08/02 14:17:00

FUTABA 7PX Specifications

General

Channels	7
Frequency	2.4GHz
Telemetry	Yes
Data Logging	Yes
Model Memory	40 models
Compatibility	T-FHSS, S-FHSS
System	T-FHSS
Display	4.3 inch color TFT LCD touch screen
