FUTABA 7PX User Manual

160
Function
Telemetry
Telemetry :GPS
When SBS-01G/02G (GPS sensor) sold separately is mounted on the car body, you can re-
ceive radio waves from GPS satellites and display information on the position and speed of
the car.
* A GPS sensor must be installed in the model car. Install and connect the sensor in accordance with the
sensor instruction manual.
* When powered up, the SBS-01/02G begins to acquire GPS satellite data. This process can take several
minutes. Please do not move the model during this process. During acquisition, the LED on the SBS-
01/02G will blink green; after the satellite’s signals have been acquired, the LED will become solid green,
and the GPS signal strength display on the transmitter will show three bars.
Moving the model before the satellites are fully acquired will cause a delay in acquiring the satellite signal.
* Since GPS satellites are basically used, accurate distances and speeds may not be displayed depending
on the surrounding environment or the conditions of the course.

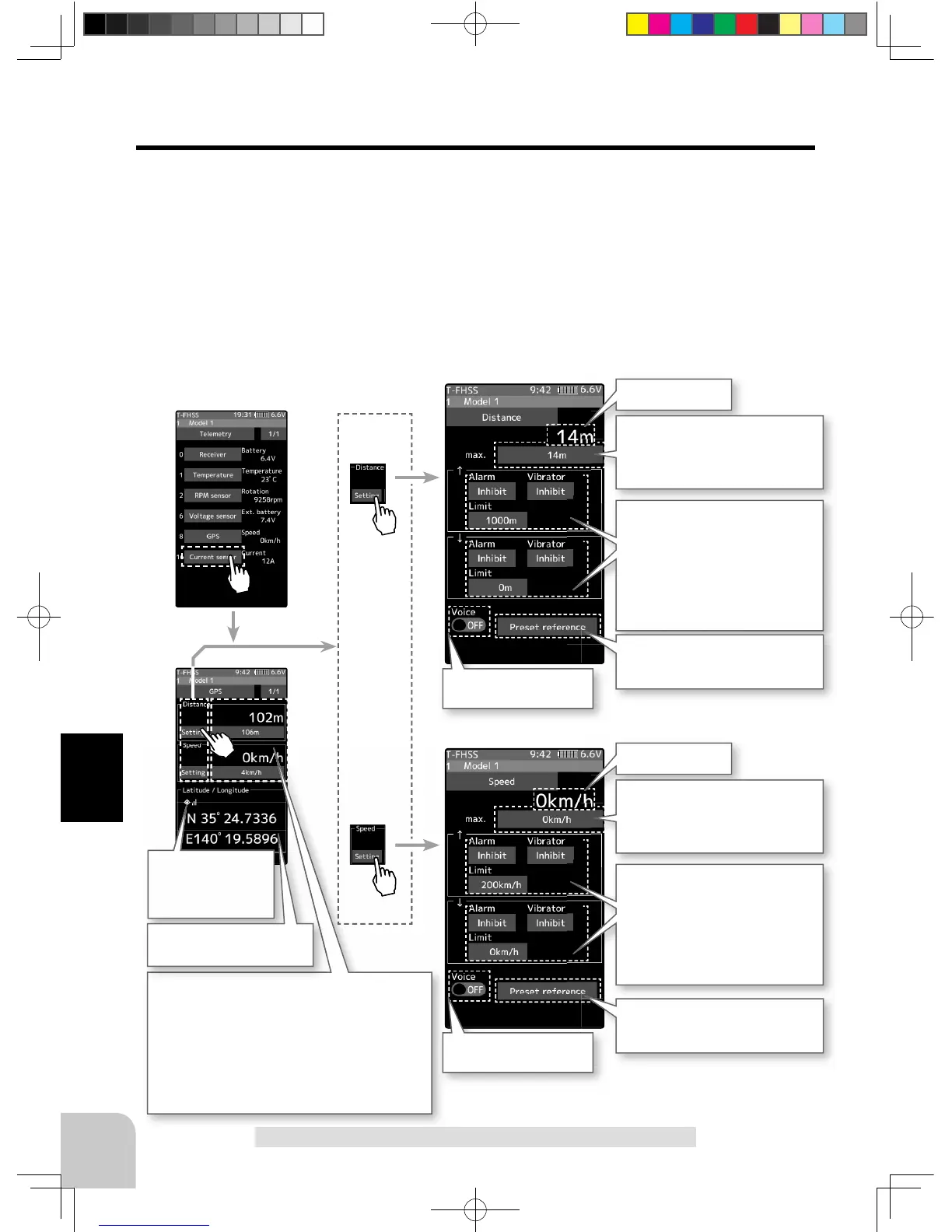

Telemetry
Current distance
Current speed
The maximum when powering
ON are shown.
* Tap the max display button to
restart the measurement.
The maximum when powering
ON are shown.
* Tap the max display button to
restart the measurement.
Tap the [Preset reference]. Sets
the current car position as the
starting point.
Tap the [Preset reference]. Sets
the current car position as the
starting point.
Alarm and vibrator ON/OFF and
type setting (The arrow indicates
that an alarm is generated when
the minimum distance below the
set value and the arrow indicates
that an alarm is generated when
the distance exceeds the set
value.)
Alarm and vibrator ON/OFF and
type setting (The arrow indicates
that an alarm is generated when
the minimum speed below the
set value and the arrow indicates
that an alarm is generated when
the speed exceeds the set value.)
The Speech function
(ON/OFF)
The position of the pres-
ent model is displayed.
This indicates the
receiving accuracy
from a GPS Satel-
lite.
The Speech function
(ON/OFF)
-Upper side:
Current distance and speed display.
-Lower:
This is a display of the maximum value of the
measured distance and speed after turning on
the transmitter power.
* Tap the max display button to restart the mea-
surement.
