Home screen
Menu screen
Menu-2
Menu-1
Linkage menu
Channel Reverse
L
R
DT1
For S-FHSS (analog) system,
5 to 7 channels are displayed
on the 2nd page.
Tap to change page.
56
Function

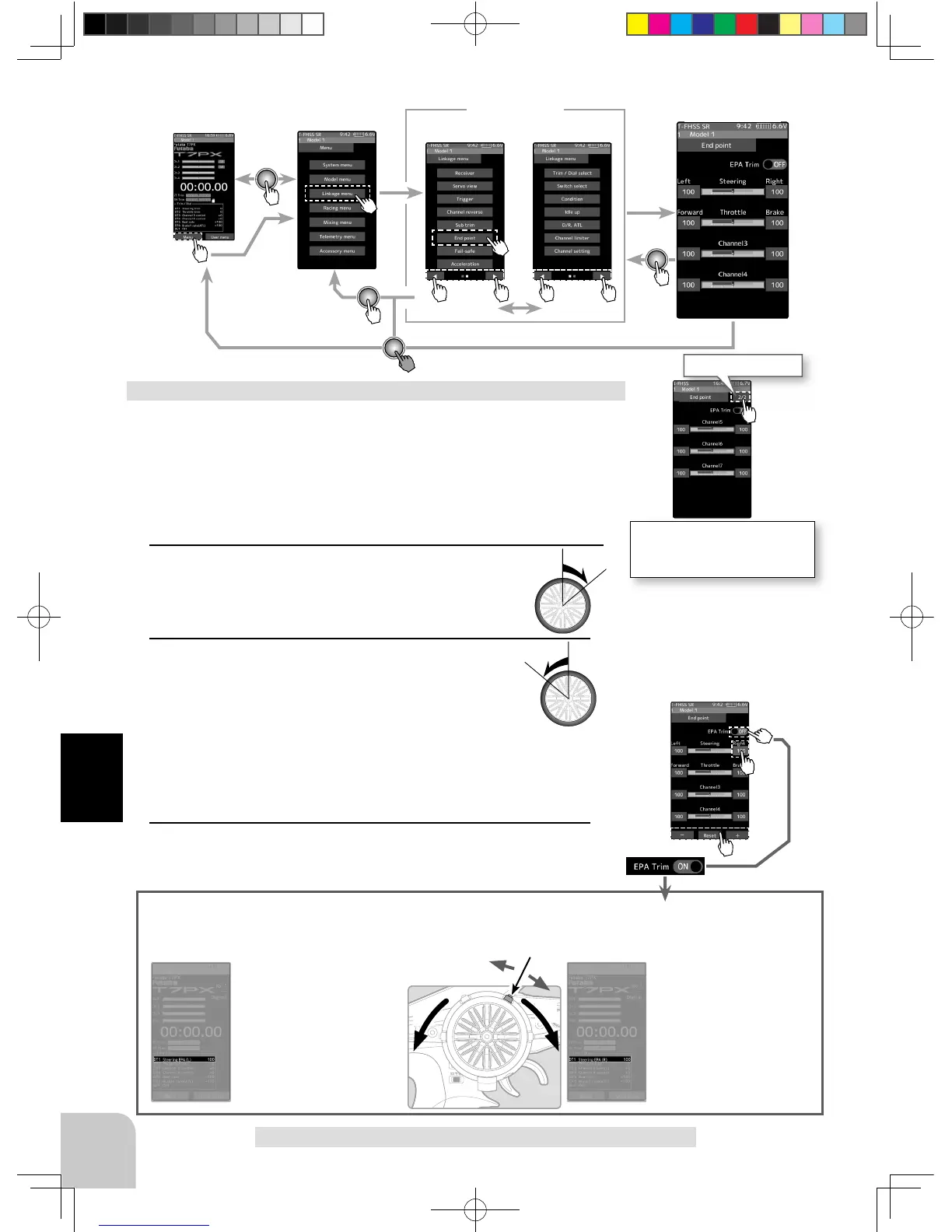

End Point
(Preparation)
- Before setup of the steering end point adjustment, set the steer-
ing D/R dial (initial setup: DT5) to the maximum steering angle
position 100%.
- Tap the travel button of the [Steering Left]. Value input buttons
appear on the screen and make the following adjustments:
1
Steering (left side) adjustment
Turn the steering wheel fully to the left and use the [+]
or [-] buttons to adjust the steering angle.
Steering end point adjustment
Quick EPA
When EPA trim is turned on, the steering angle (end point) can be adjusted
by steering trim set digital trim or dial. (Steering trim initial setting: DT1)
With the steering wheel
turned fully to the right,
steering is adjusted by
steering trim. Temporarily
displayed at this part of the
HOME screen as shown in
the fi gure below.
Steering right side adjustment
With the steering wheel
turned fully to the left, steer-
ing is adjusted by steering
trim. Temporarily displayed
at this part of the HOME
screen as shown in the fi g-
ure below.
Steering left side adjustment
2
Steering (right side) adjustment
Turn the steering wheel fully to the right and use
the [+] or [-] buttons to adjust the steering angle.
Note
Step #1 & #2 are done when the receiver is in the on position installed on
the chassis. You’re watching the wheels reach their maximum end point.
3
When fi nished, return to the Linkage menu screen by press-
ing the HOME button.
Adjustment buttons
Adjust with the [+] and [-] but-
tons.
- Return to the initial value by
tapping the [reset] buttons
.
Steering End point :0~140
Initial value :100
