Function
Sensor List
Sensor List
This menu registers the telemetry sensors used with the transmitter. When only one of a
certain type of sensor is used, this setting is unnecessary and the sensor can be used by
simply connecting it to the S.BUS2 port of the transmitter.
When using 2 or more of the same kind of sensor, they must be registered here.

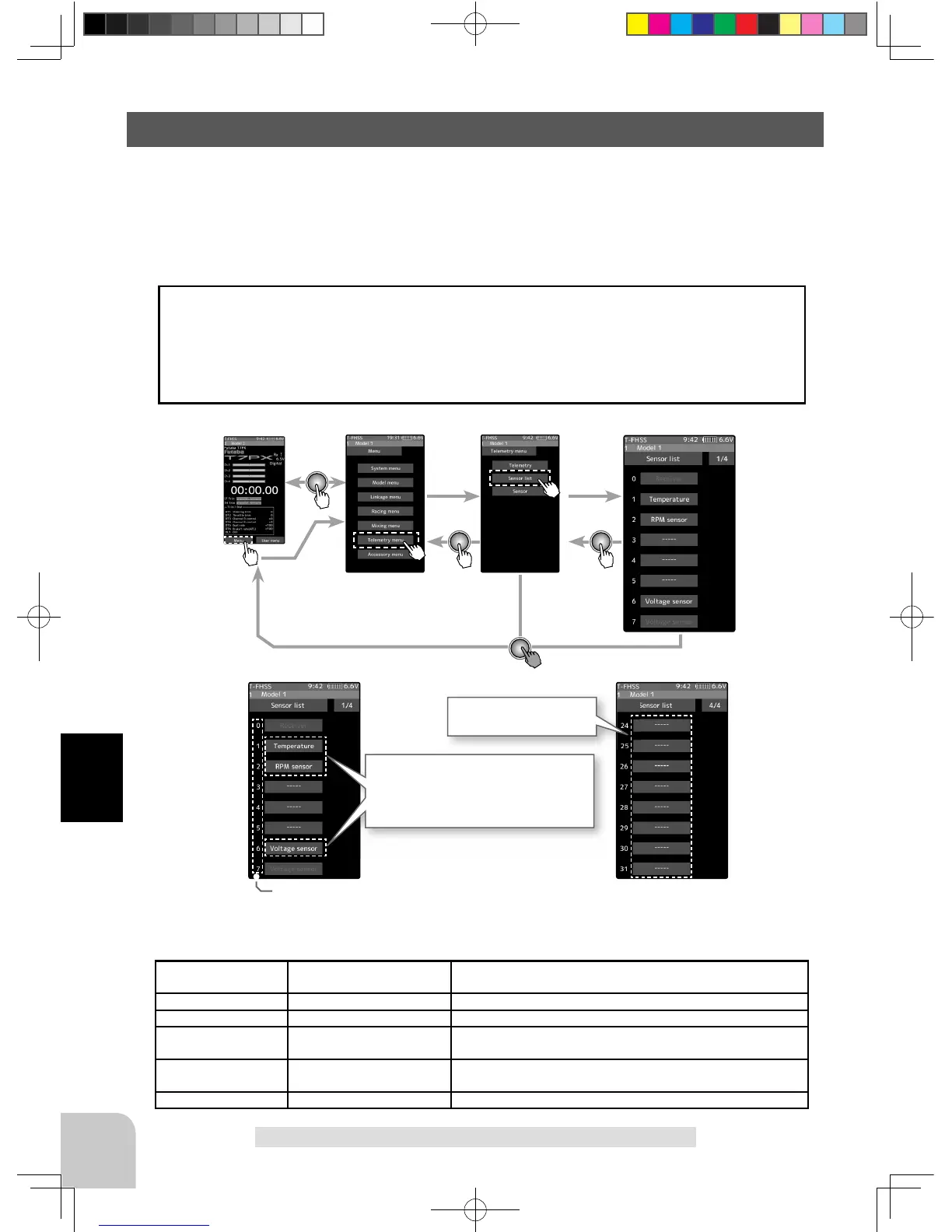

Home screen
Menu screen Telemetry menu screen
Sensor list
Servos are classi ed by CH, but sensors are classi ed in units called
"
slot
"
. There are
slots from No. 1 to No. 31. Using a sensor which uses two or more slots, the required
number of slots is automatically assigned by setting up a start slot. When 2 or more of
the same kind of sensor are used, the sensors themselves must allocate unused slots and
memorize that slot.
What is a slot?
sensor
The required number of
slots
The number which can be used as a start slot
TEMP(SBS-01T) 1 slot 1~31
RPM(SBS01RM) 1 slot 1~31
Voltage(SBS-01V)
2 slot
1,2,3,4,5,6,8,9,10,11,12,13,14,16,17,18,19,
20,21,22,24,25,26,27,28,29,30
Current(SBS-01C)
2 slot
1,2,3,4,5,6,8,9,10,11,12,13,16,17,18,19,20,
21,24,25,26,27,28,29
GPS(SBS-01/02G) 8 slot 8,16,24
About the slots that can be used.
As shown in the table below, the current sensor requires three consecutive slots, and the GPS sensor requires 8
consecutive slots. The GPS sensor (SBS - 01 / 02G) has a starting slot of 8.16.24.
Sensor is not registered
in slot.
Slot
State with registered sensor
Change to “---------”, you can make it
an empty slot.
Slot number
