Home screen

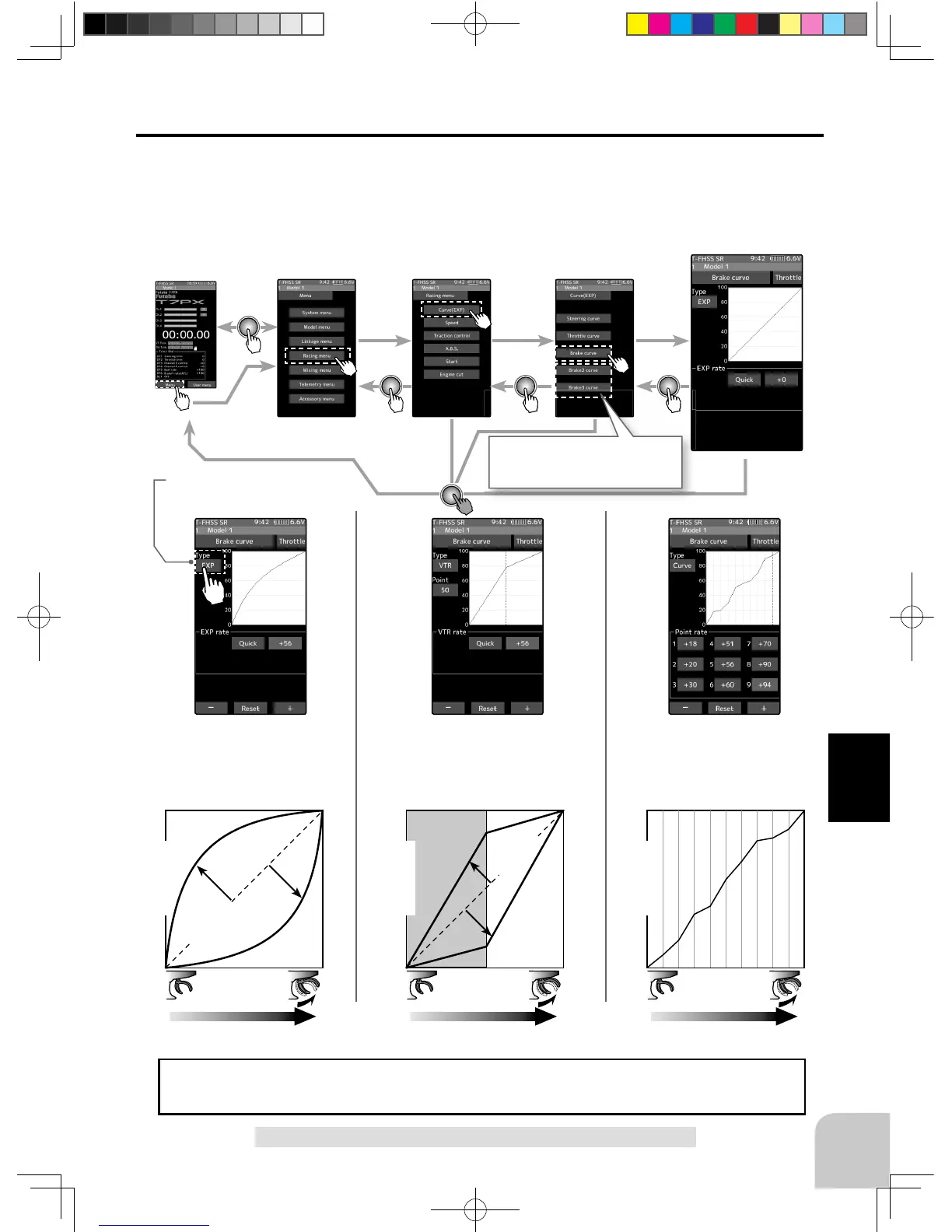

Menu screen Racing menu screen Curve screen
Steering curve
* Touch the type to switch the
curve type.
EXP curve screen
Curve type which operates the
throttle from the neutral point to
the full brake point on a curved
curve.
Curve screen
Curve type which sets 9 points
between the throttle neutral point
and full brake and operates the
throttle.
VTR curve screen
Curve type which sets the switching point
between the throttle neutral point and full
brake point and operates the throttle on a
linear curve.
0%
Normal
0%
Normal
+1% ~ +100%
+1% ~ +100%
Trigger operation Trigger operation Trigger operation
-1% ~ -100%
-1% ~ -100%
Mild Mild
Servo travel Servo travel Servo travel
When brake mixing (page 106)
is used, brakes 2 and 3 are dis-
played.
83
Function
Curve (EXP)
Brake curve
This function makes the throttle brake side direction servo operation quicker or milder. It
has no effect on the servo maximum operation amount. For the selection from among three
kinds of curves (EXP/VTR/Curve) is also possible. If Ratio is set to 100: 0 with the trigger
function (page 62), the brake side will not operate. Since the setting method of each curve is
the same as the throttle (forward) side curve, please read P81 to 82.
Curve (EXP)
The brake EXP, VTR adjustment can be controlled with digital trim DT1~DT6 or digital
dial DL1 etc. with the dial select function. (page 66)
Dial / Trim Setting
