FUTABA 7PX User Manual

Home screen
Menu screen Accessory menu screen
Gear ratio chart
Adjustment buttons
- Adjust with the [+] and [-] but-
tons.
- Return to the initial value by
tapping the [reset] buttons.
150
Function
Gear Retio Chart
Gear Retio Chart

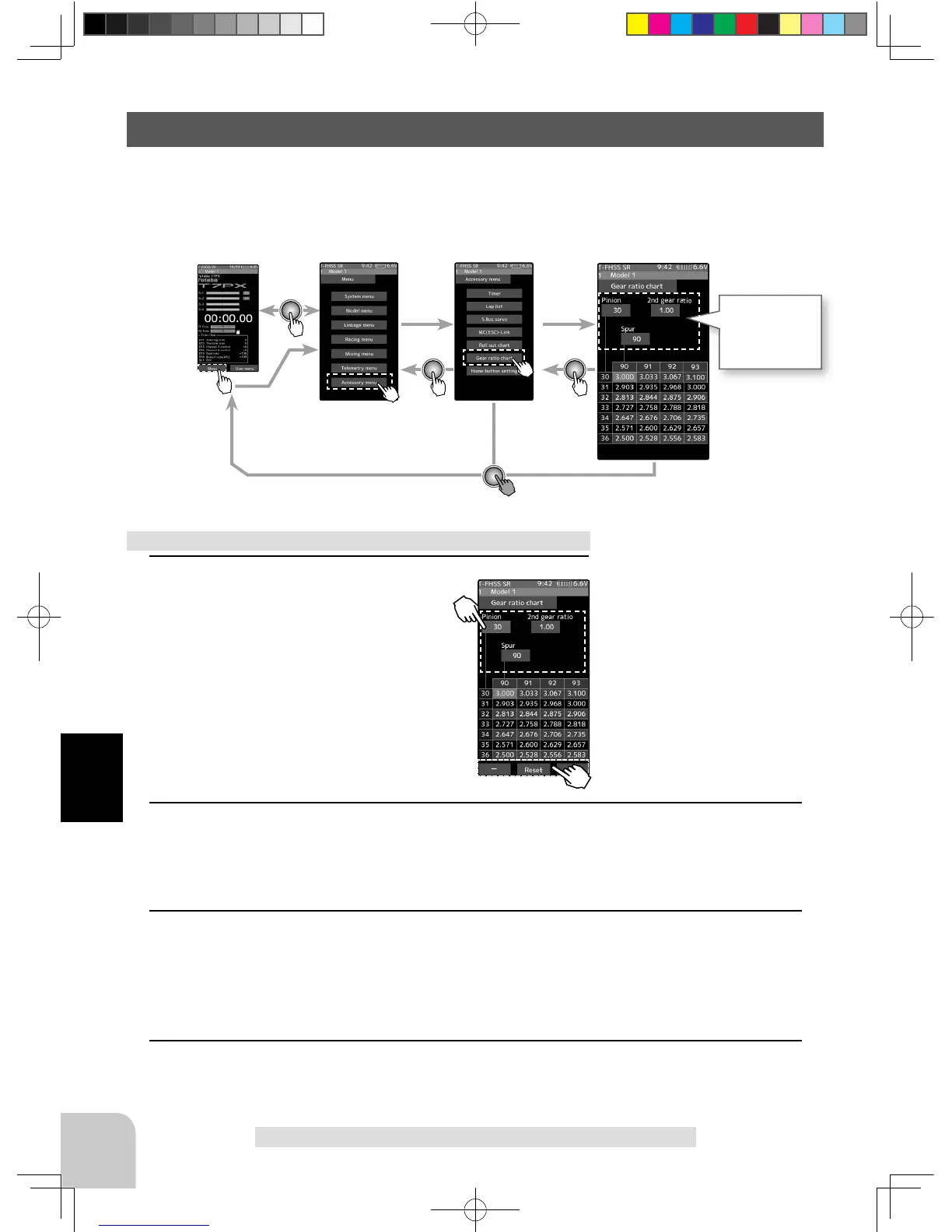

The Gear Retio Chart can be calculated from input values for the number of teeth of the
spur gear and pinion gear, and secondary gear ratio, and displayed as a table.
1
(Setting of number of teeth of spur gear)
Tap the value button of the [Super]. Val-
ue input buttons appear on the screen.
Use the [+] and [-] buttons to set the spur
gear. The roll out is then calculated, and the
list is updated.
2
(Setting of number of teeth of pinion gear)
Tap the value button of the [Pinion]. Value input buttons appear on the screen. Use the [+]
and [-] buttons to set the pinon gear. The roll out is then calculated, and the list is updated.
2
(Setting of number of secondary gear ratio)
Tap the value button of the [2nd gear ratio]. Value input buttons appear on the screen. Use
the [+] and [-] buttons to set the 2nd gear ratio. The roll out is then calculated, and the list is
updated.
3
When fi nished, return to the Accessory menu screen by pressing the HOME button.
Use of Roll out chart function
Setup item
Pinion
2nd Gear ratio
Sper
1M23N32602_7PX_E.indb 150 2017/08/02 14:17:39

FUTABA 7PX Specifications

General

Channels	7
Frequency	2.4GHz
Telemetry	Yes
Data Logging	Yes
Model Memory	40 models
Compatibility	T-FHSS, S-FHSS
System	T-FHSS
Display	4.3 inch color TFT LCD touch screen
