FUTABA 7PX User Manual

Home screen
Menu screen
Accessory menu screen
S.Bus Servo
135
Function
S.Bus Servo

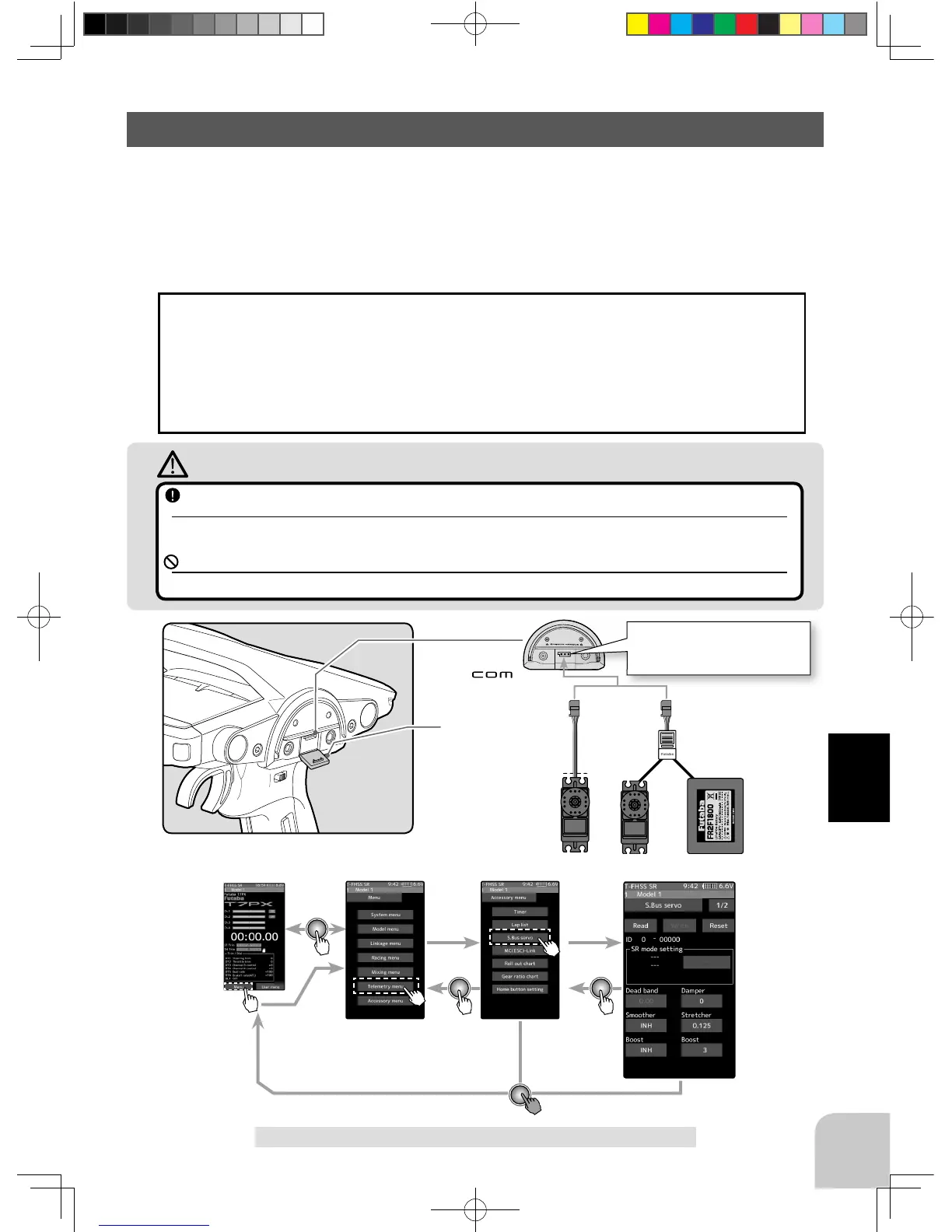

This is a special function which allows Futaba S.BUS/S.BUS2 servo parameter changes to
be set by the T7PX transmitter. However, some data changes require a PC and S-Link soft-
ware. This function is used by connecting Futaba S.BUS/S.BUS2 servo directly to the trans-
mitter. Use the various optional servo extension cords according to the distance between
the transmitter and servo. (SR mode setting is for T7PX only, it can not be set with S-Link
software.)
S.Bus Servo
-If shutting off while writing the parameters, the servo may fail. Please use this function
with suf cient battery power.
-Power is supplied to the servo from the transmitter, but the corresponding voltage is for
high voltage servo (HV) use. Since an overvoltage will be applied to servos other than
this, connect the corresponding battery to the servo. When the battery is connected, the
supply of power from the transmitter automatically stops.
Caution
When connecting an S-BUS servo that does not support high voltage, connect a battery matched
to the servo specifi cations.
High voltage servo support voltage is supplied from the transmitter. If a servo that does not support high voltage is con-
nected, unreasonable force will be applied to the servo and will cause trouble.
Do not disconnect the servo connector or turn off the transmitter power while writing parameters.
It may cause the servo to malfunction.
Communication port.
Connecting S.BUS/S.BUS2
servo connector to the trans-
mitter Communication port.
Cover
