FUTABA 7PX User Manual

B/C
CH3
CH2
CH1
CH4
Receiver
Switch
To Battery
CH4 servo
CH3 servo
Throttle servo
Steering servo
#%$

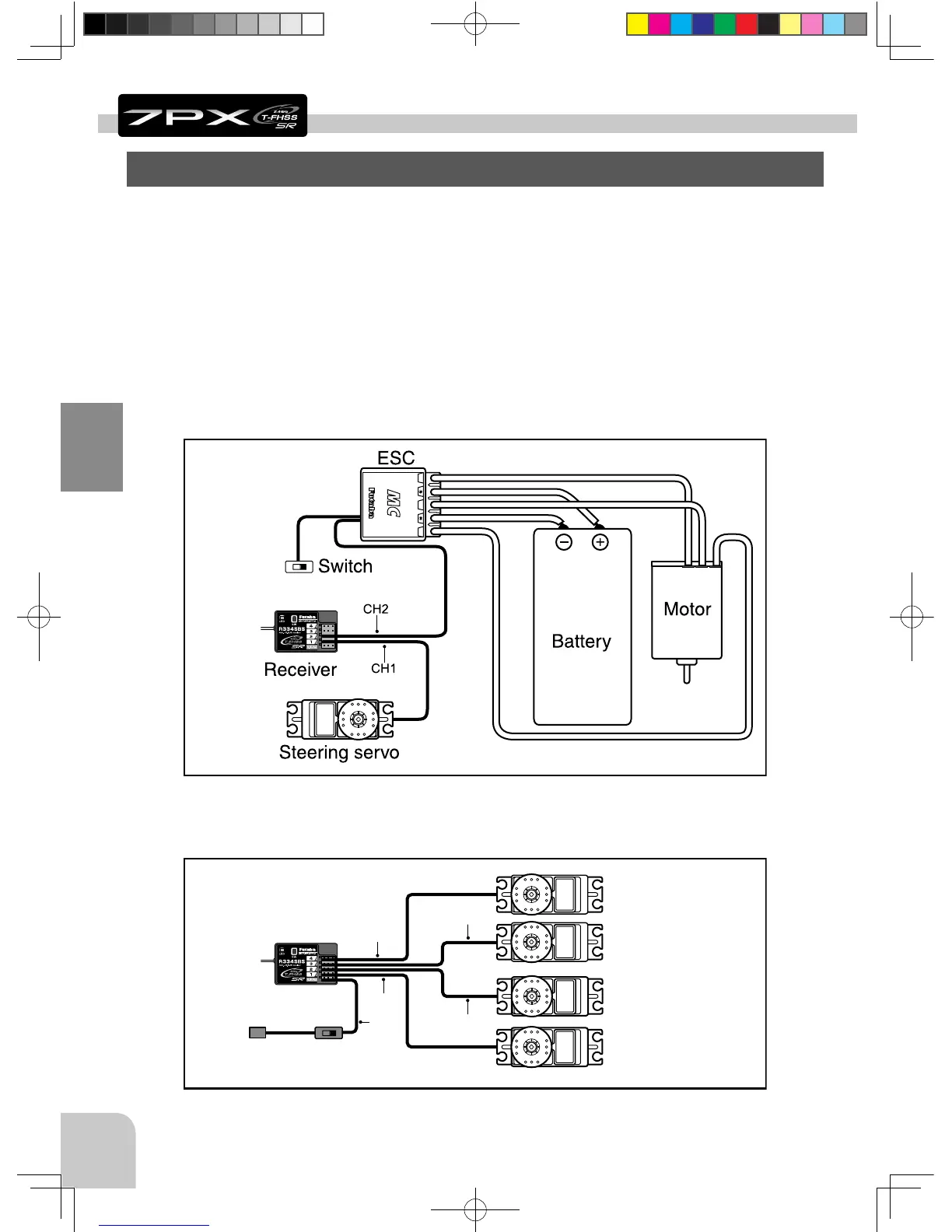

Installation When An Electronic Speed Control Is Used
Installation For Gas Powered Models
32
Installation
Connect the receiver and servos as shown below. Connect and install the receiver and ser-
vos in accordance with "Installation Safety Precautions" on the next page.
The gure shown below is an example. The method of connecting the motor controller to
the motor and battery depends on the motor controller used. Purchase the motor controller
and servos separately. The receiver also depends on the set.
When using the DSC cord with a gasoline engine car, connect the optional double extension
cord to B/C of the receiver and the DSC cord and receiver switch to the opposite side con
-
nector.
Installation
Receiver And Servo Connections
1M23N32602_7PX_E.indb 32 2017/08/02 14:17:09

FUTABA 7PX Specifications

General

Channels	7
Frequency	2.4GHz
Telemetry	Yes
Data Logging	Yes
Model Memory	40 models
Compatibility	T-FHSS, S-FHSS
System	T-FHSS
Display	4.3 inch color TFT LCD touch screen
