Acidic concentrate and BiCart
®
cartridge

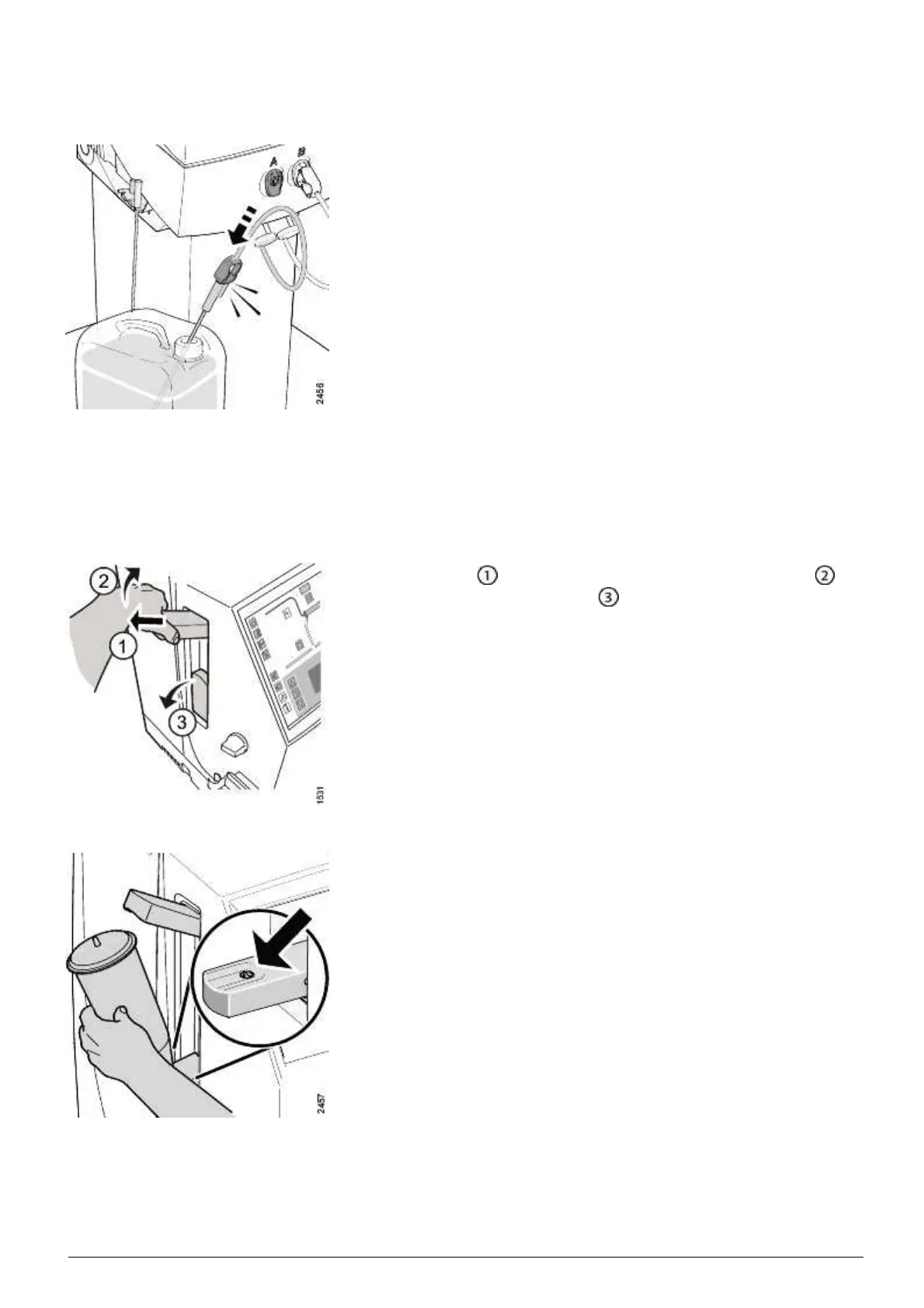

1. Attach Acidic concentrate
1.a.
Remove the red concentrate connector from the
stand-by port of the machine (compress the connector
before pulling the connector out).
1.b.
Attach the connector to a concentrate pick-up tube;
insert the connector into the pick-up tube port and push
it into place until it clicks in. Make sure that it clicks
in properly to prevent air leakage during treatment.
1.c.
Put the pick-up tube into the proper acidic concentrate
container (the blue concentrate connector must remain
in the s tand-by port).
If SoftPac container for acidic concentrate is being used, connect
the red concentrate connector to th e particular connector used for
SoftPac containers and insert it into the SoftPac container.
2. Attach BiCart cartridge
2.a.
Open the upper latch of the BiCart holder, pull out the
latch
and lift upwards to its uppermost position .
Open the lower latch
.
2.b.
Place the bottom port of the BiCart cartridge into the
hole of the lower latch as shown in the corresponding
figure.
HCEN12239 Revision 12.2010
Program version 3.xx
AK 96
®
Operator's Manual - Double Needle Treatment
4:9
