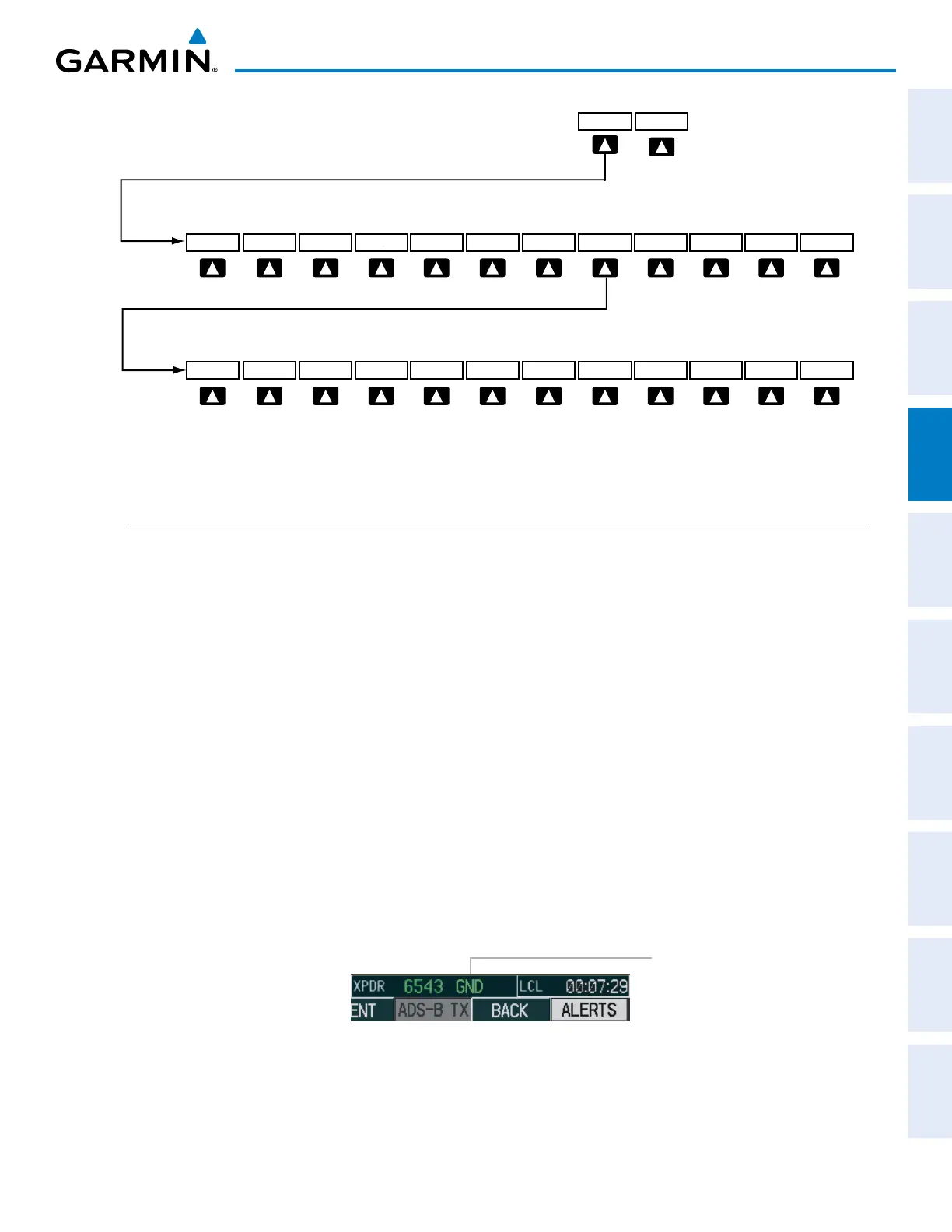

Figure 4-29 Transponder Softkeys (PFD)
Selecting the BACK Softkey
returns to the top-level softkeys.
ALERTS
ALERTS BACK BKSP
IDENT
7 6 5 4 3 2 1 0
STBY ON
ALT VFR
CODE
IDENT BACK
XPDR
IDENT
Selecting the BACK
Softkey returns to the mode selection softkeys.
GND
ADS-B TX
(Optional)
TRANSPONDER MODE SELECTION
Mode selection can be automatic (Ground and Altitude Modes) or manual (Standby, ON, and Altitude Modes).
The STBY , ON, and ALT Softkeys can be accessed by selecting the XPDR Softkey.
Selecting a transponder mode:
1) Select the XPDR Softkey to display the Transponder Mode Selection Softkeys.
2) Select the desired softkey to activate the transponder mode.
GROUND MODE
Ground Mode is normally selected automatically when the aircraft is on the ground. The transponder
powers up in the last mode it was in when shut down. Ground Mode can be overridden by pressing any
one of the Mode Selection Softkeys. A green GND indication and transponder code appear in the mode field
of the Transponder Data Box. Ground Mode generates Mode S replies to discrete interrogations as well as
transmission of acquisition squitter and extended squitter, including ADS-B out (if equipped). Mode A, Mode
C, and Mode S all-call replies are inhibited.
When Standby Mode has been selected on the ground, the transponder can be returned to Ground Mode
by pressing the GND Softkey.
GND
Mode
Figure 4-30 Ground Mode
