TERRAIN ANNUNCIATIONS
Optional Terrain Awareness and Warning System (TAWS) and Terrain-SVS annunciations appear on the PFD
at the top left of the Altimeter. Refer to the Hazard Avoidance Section and Appendix A for information on
terrain system annunciations.

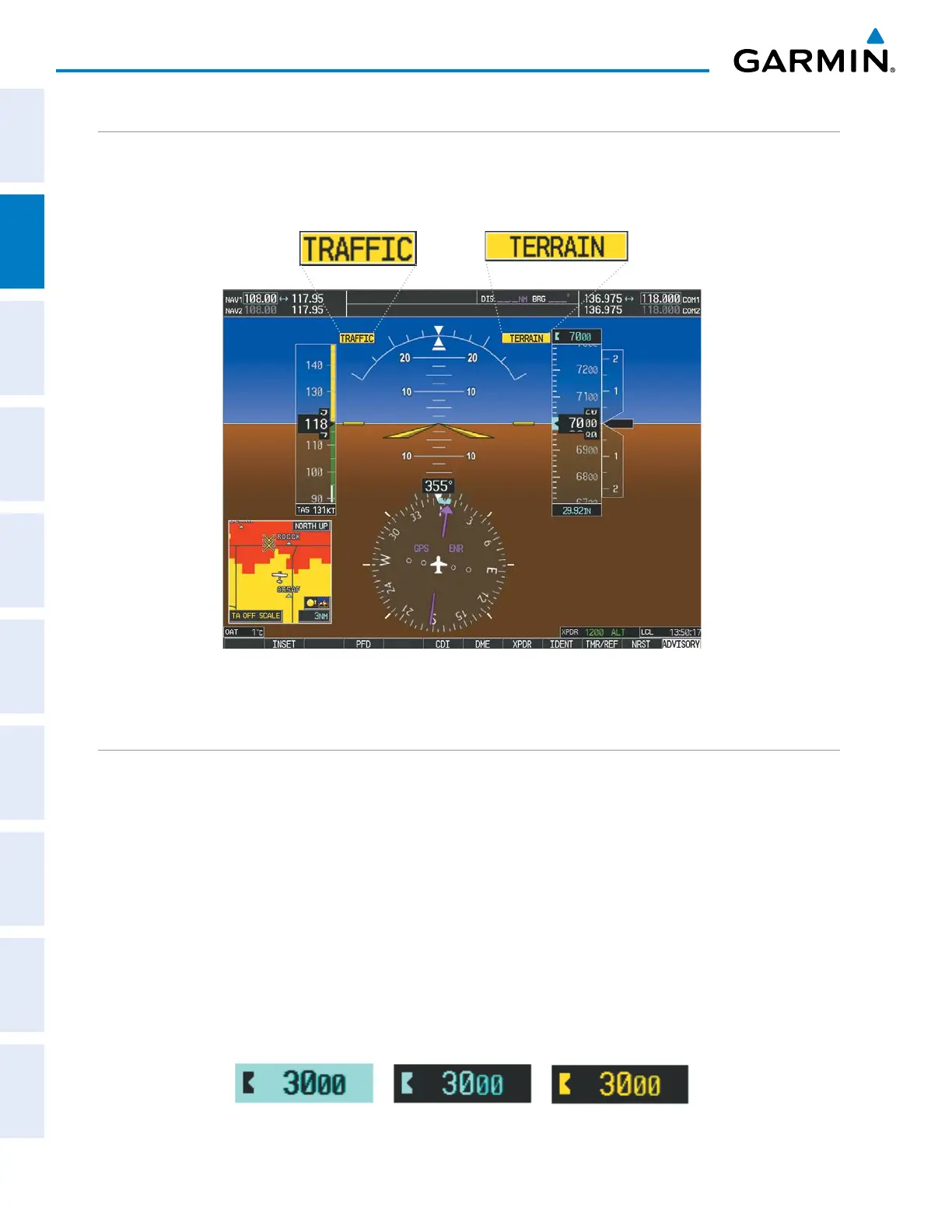

Figure 2-38 Traffic and TAWS Annunciations
ALTITUDE ALERTING
The Altitude Alerting function provides audio and visual alerts when the aircraft is approaching the Selected
Altitude. Whenever the Selected Altitude is changed, the Altitude Alerter is reset. The Altitude Alerter is
independent of the installed AFCS. The following occur when approaching the Selected Altitude:
• Upon passing through 1000 feet of the Selected Altitude, the Selected Altitude (shown above the Altimeter)
changes to black text on a cyan background, flashes for 5 seconds, and an aural tone is generated.
• When the aircraft passes within 200 ft of the Selected Altitude, the Selected Altitude changes to cyan text on
a black background and flashes for five seconds, and an audio tone is generated.
• After reaching the Selected Altitude, if the aircraft flies outside the deviation band (±200 feet of the Selected
Altitude), the Selected Altitude changes to yellow text on a black background, flashes for five seconds, and an
audio tone is generated.
Figure 2-39 Altitude Alerting Visual Annunciations
Within 1000 ft Within 200 ft Deviation of ±200 ft
