Garmin G950 Pilot’s Guide for the Pilatus PC-6 327
HAZARD AVOIDANCE
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX

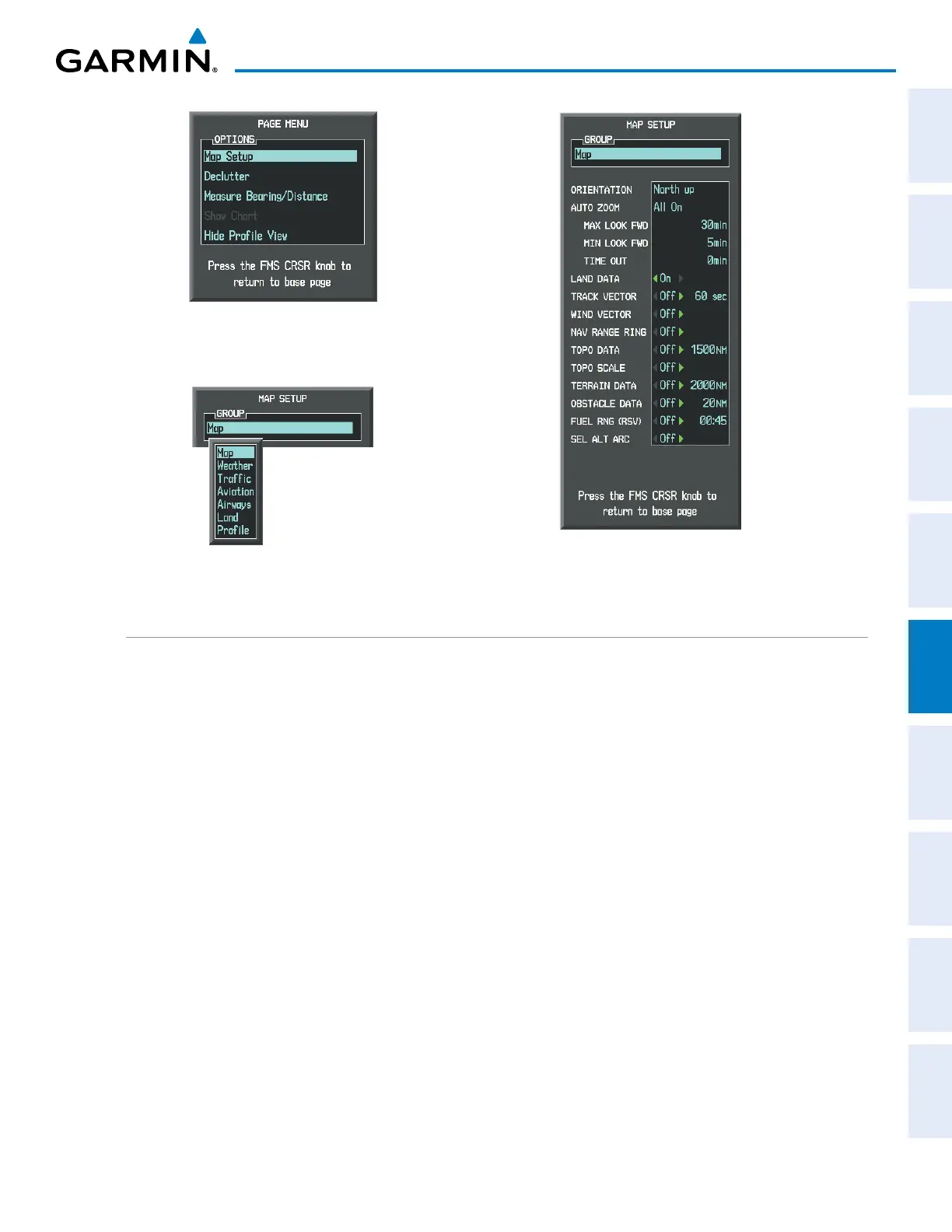

Figure 6-40 Navigation Map Page Setup Menu
Figure 6-39 Navigation Map Page Menu
Figure 6-41 Navigation Map Page Setup Menu, Map Group
TERRAIN-SVS PAGE
The Terrain-SVS Page is specialized to show terrain, obstacle, and potential impact point data in relation
to the aircraft’s current altitude, without clutter from the basemap. Aviation data (airports, VORs, and other
NAVAIDs) can be displayed for reference. If an obstacle and the projected flight path of the aircraft intersect,
the display automatically zooms in to the closest potential point of impact on the Terrain-SVS Page.
Aircraft orientation on this map is always heading up unless there is no valid heading. Two views are available
relative to the position of the aircraft: the 360° default display and the radar-like ARC (120°) display. Map range
is adjustable with the Joystick from 1 to 200 nm, as indicated by the map range rings (or arcs).
Displaying the Terrain-SVS Page:
1) Turn the large FMS Knob to select the Map Page Group.
2) Turn the small FMS Knob to select the Terrain-SVS Page.
Changing the Terrain-SVS Page view:
1) Press the VIEW Softkey.
2) Press the 360 or ARC Softkey to select the desired view.
Or:
1) Press the MENU Key.
2) Select ‘View Arc’ or ‘View 360º’ (choice dependent on current state) and press the ENT Key to change the view
