8.6 AUXILIARY VIDEO (OPTIONAL)
The G950 system provides a control and display interface to an optional auxiliary video system. The system
can display video for up to two inputs.
There are four modes of operation of the auxiliary video display: Full-Screen, Full-Screen with Digital Zoom,
Split-Screen with Map, and Split-Screen with Map and Digital Zoom.
Displaying auxiliary video:
1) Turn the large FMS Knob to select the AUX page group.
2) Turn the small FMS Knob to select VIDEO and display the AUX‑VIDEO Page.
The video display softkeys shown below appear on the AUX - VIDEO Page.

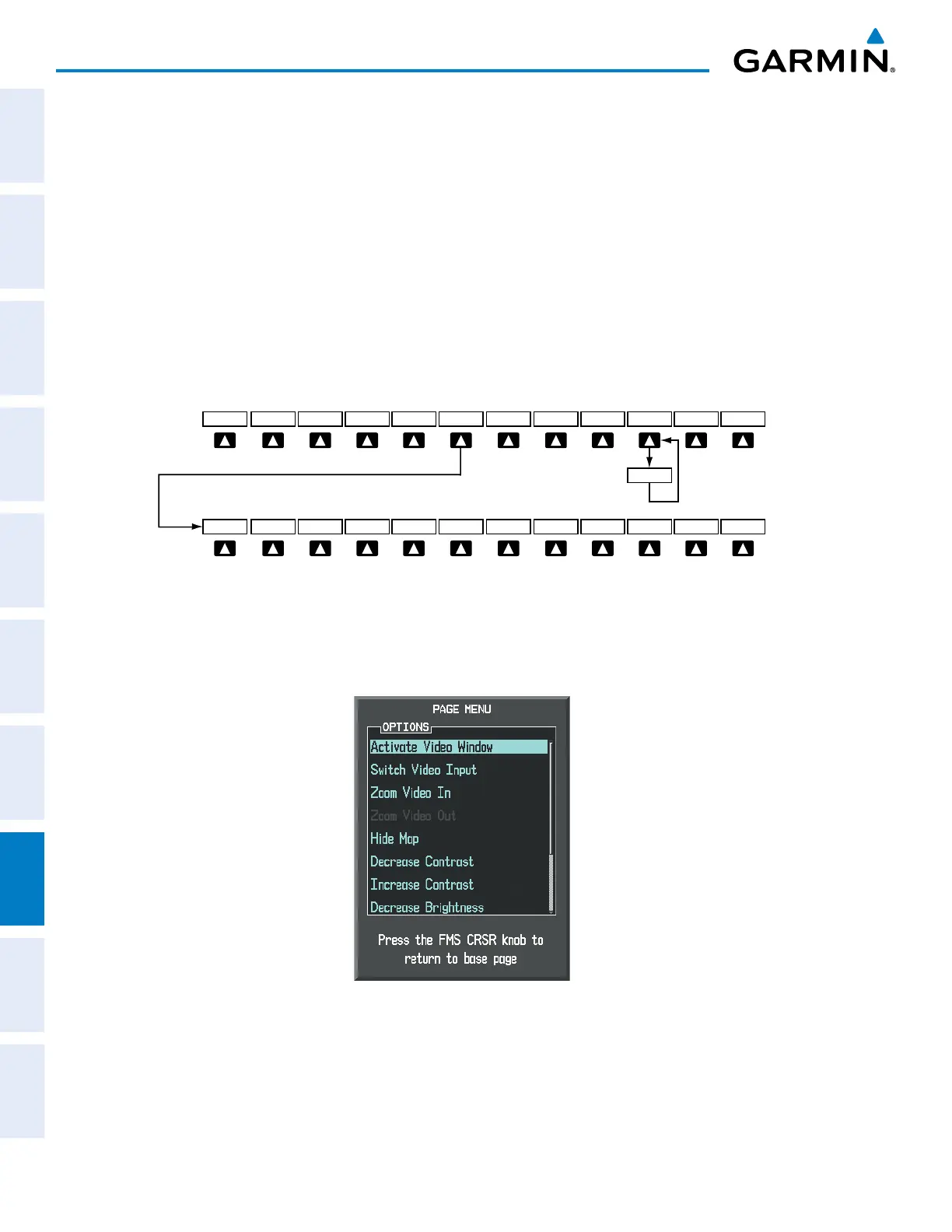

Figure 8-75 Video Display Softkeys
Pressing the BACK
Softkey returns
to the Previous Level Softkeys.
SAT -
MAP ENGINE SETUP VID ZM+ VID ZM-
HIDE MAP
CNTRST - BRIGHT -
SAT +
RESET
BACK
CNTRST +
BRIGHT +
INPUT
MAP ACTV
VID ACTV
Control of the AUX - VIDEO Page can also be accessed through the Page Menu.
Figure 8-76 AUX - VIDEO Page Menu
Selecting video menu options:
1) While viewing the AUX ‑ VIDEO Page press the MENU Key to display the Page Menu OPTIONS.
2) Turn the large FMS Knob to highlight the desired video adjustment option and press the ENT Key.
Once the ENT key is pressed on any option, the page menu closes and returns to the AUX - VIDEO Page.
