MARKER BEACON ANNUNCIATIONS
Marker Beacon Annunciations are displayed on the PFD to the left of the Selected Altitude. Outer marker
reception is indicated in blue, middle in yellow, and inner in white. Refer to the Audio Panel and CNS Section
for more information on Marker Beacon Annunciations.

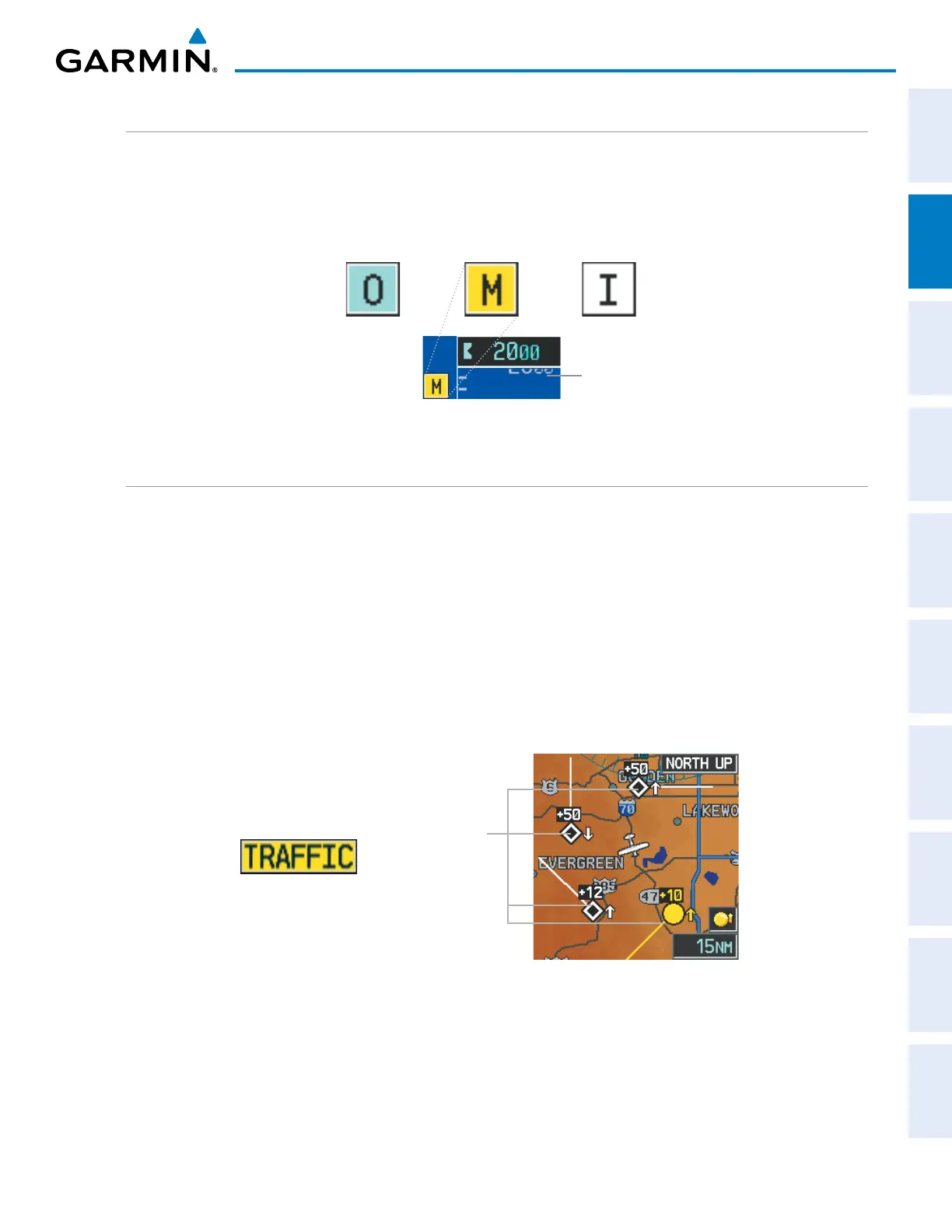

Figure 2-36 Marker Beacon Annunciations
Inner Marker
Outer Marker
Altimeter
Middle Marker
TRAFFIC ANNUNCIATION
The G950 System displays traffic symbolically on the PFD Inset Map, the Navigation Map Page (MFD), and
various other MFD page maps. Refer to the Hazard Avoidance Section and Appendix E for more details about
the traffic displays. When a traffic advisory (TA) is detected, the following automatically occur:
• The PFD Inset Map is enabled and displays traffic
• A flashing black-on-yellow ‘TRAFFIC’ annunciation (Figure 2-37) appears to the top left of the Attitude
Indicator for five seconds and remains displayed until no TAs are detected in the area
• A single “Traffic” voice alert is generated, unless an optional Traffic Advisory System (TAS) is installed (refer
to the applicable TAS documentation for alerts generated by TAS equipment)
If additional TAs appear, new voice and visual alerts are generated.
Figure 2-37 Traffic Annunciation and Inset Map with Traffic Displayed
Traffic
Symbols
