SELECTING THE STORMSCOPE PAGE
The Map - Stormscope Page is the principal map page for viewing Stormscope lightning information.
Stormscope lightning data can be displayed at the ranges of 25 nm, 50 nm, 100 nm, and 200 nm.
Adjusting the Stormscope Map Range:
1) Turn the large FMS Knob to select the Map Page Group.
2) Turn the small FMS Knob to select the Stormscope Page.
3) To change the map range, turn the Joystick clockwise to zoom out or counter-clockwise to zoom in.

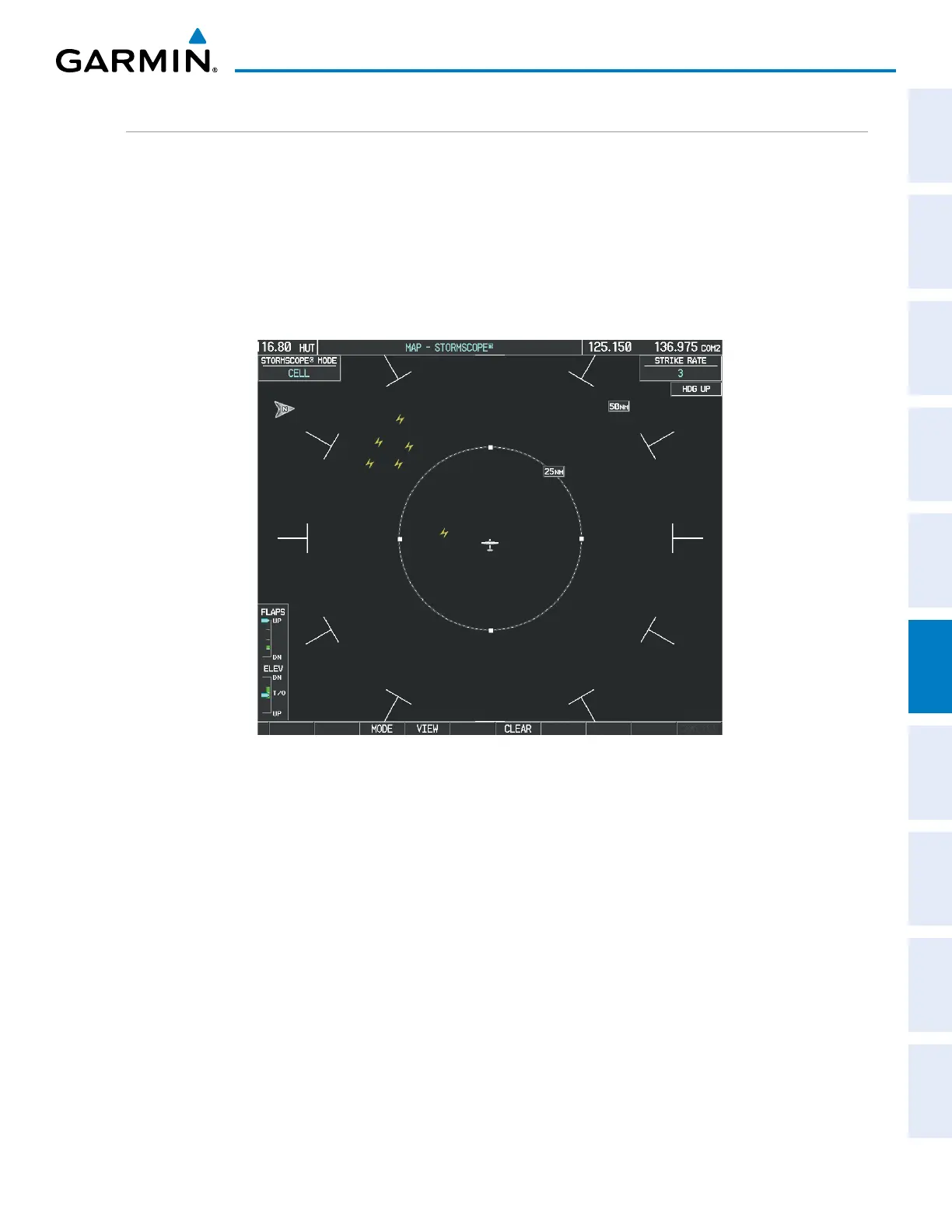

Figure 6-26 Stormscope Page
Changing between ‘cell’ and ‘strike’ mode on the Stormscope Page:
1) Select the Stormscope Page.
2) Press the MODE Softkey. The CELL and STRIKE softkeys are displayed.
3) Press the CELL Softkey to display ‘CELL’ data or press the STRIKE Softkey to display ‘STRIKE’ data. ‘CELL’ or
‘STRIKE’ is displayed in the mode box in the upper left corner of the Stormscope Page.
4) Press the BACK Softkey to return to the main Stormscope page.
Changing the viewing mode between 360˚ and 120˚ on the Stormscope Page:
1) Select the Stormscope Page.
2) Press the VIEW Softkey. The 360 and ARC softkeys are displayed. Press the 360 Softkey to display a 360˚
viewing area or press the ARC Softkey to display a 120˚ viewing area.
3) Press the BACK Softkey to return to the main Stormscope page.
