4.6 AUDIO PANEL PREFLIGHT PROCEDURE
NOTE: If the pilot and/or copilot are using headsets that have a high/low switch or volume control knob,
verify that the switch is in the high position and the volume control on the headsets are at maximum volume
setting. On single-pilot flights, verify that all other headsets are not connected to avoid excess noise in the
audio system.
NOTE: When the MAN SQ is activated, the ICS squelch can be set manually by the pilot and copilot. If
manual squelch is set to full open (SQ annunciated and the knobs turned counterclockwise) background
noise is heard in the ICS system as well as during COM transmissions.
After powering up the avionics System, the following steps will aid in maximizing the use of the Audio Panel
as well as prevent pilot and copilot induced issues. These preflight procedures should be performed each time a
pilot boards the aircraft to insure awareness of all audio levels in the Audio Panel and radios.
Pilot and
Copilot ICS
Isolation Keys
Copilot/Passenger
Volume and
Manual Squelch
Pilot Volume
and Manual
Squelch
Automatic/Manual
Squelch Annunciation

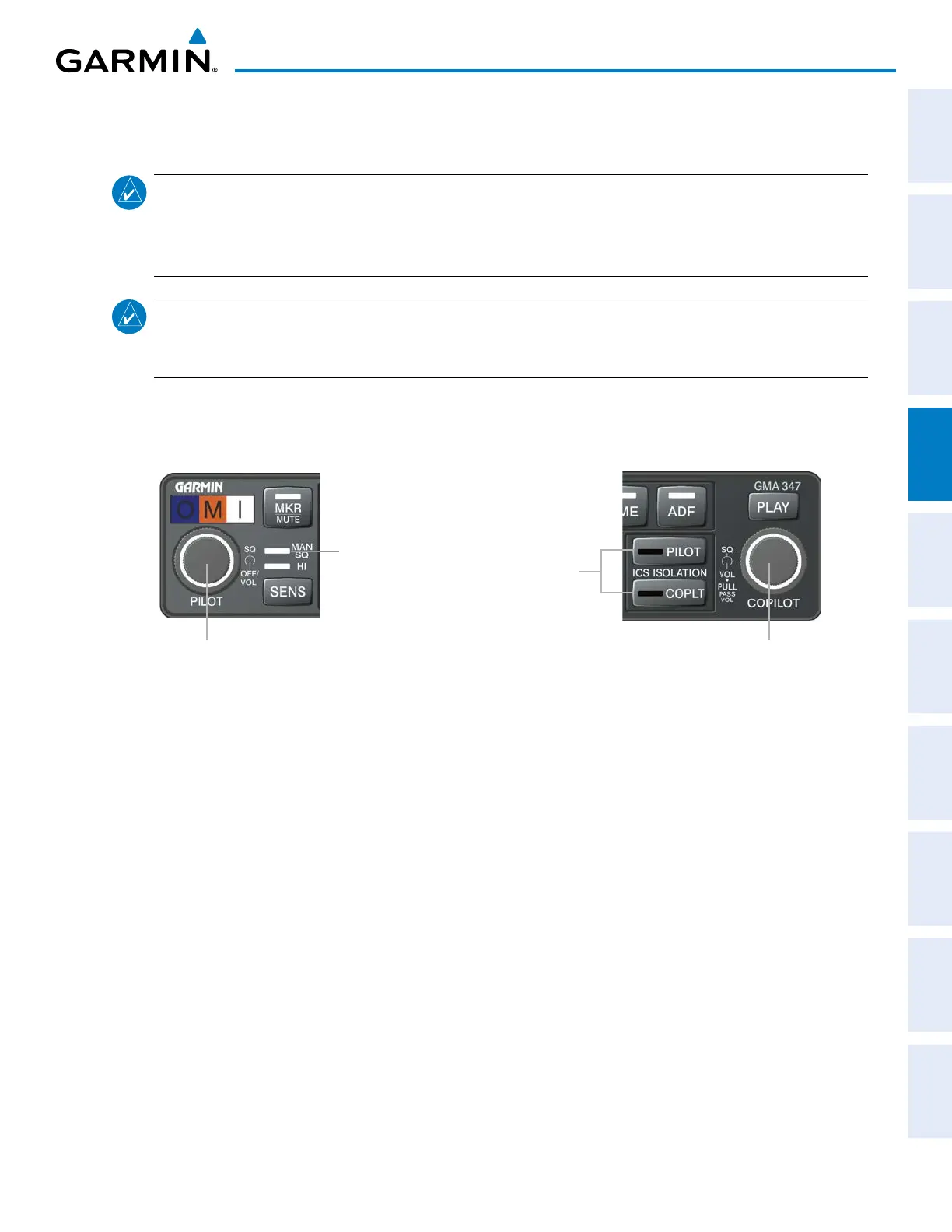

Figure 4-50 Audio Panel Preflight Controls
Setting the Audio Panel during preflight:
1) Verify that the PILOT and COPLT Annunciators are extinguished.
2) Verify that manual squelch is set to full open.
3) Turn the PILOT Knob and COPILOT Knob fully clockwise. This will set the headset intercom audio level to max
volume (least amount of attenuation).
4) Adjust radio volume levels (COM, NAV, etc.) to a suitable level.
5) Adjust the PILOT Knob and COPILOT Knob volume to the desired intercom level.
6) Reset squelch to automatic, or adjust to the appropriate level manually.
Once this procedure has been completed, the pilot and copilot can change settings, keeping in mind the notes
above.
