TERRAIN-SVS ALERTS
Alerts are issued when flight conditions meet parameters that are set within Terrain-SVS software algorithms.
Terrain-SVS alerts typically employ a CAUTION or a WARNING alert severity level, or both. When an alert
is issued, visual annunciations are displayed with voice alerts. Table 6-11 shows Terrain-SVS alert types with
corresponding annunciations and voice alerts.
When an alert is issued, annunciations appear on the PFD and MFD. The Terrain-SVS Alert Annunciation is
shown to the upper left of the Altimeter on the PFD and below the Terrain Legend on the MFD. If the Terrain-
SVS Page is not displayed at the time, a pop-up alert appears on the MFD. To acknowledge the pop-up alert:
• Press the CLR Key (returns to the currently viewed page), or
• Press the ENT Key (accesses the Terrain-SVS Page)

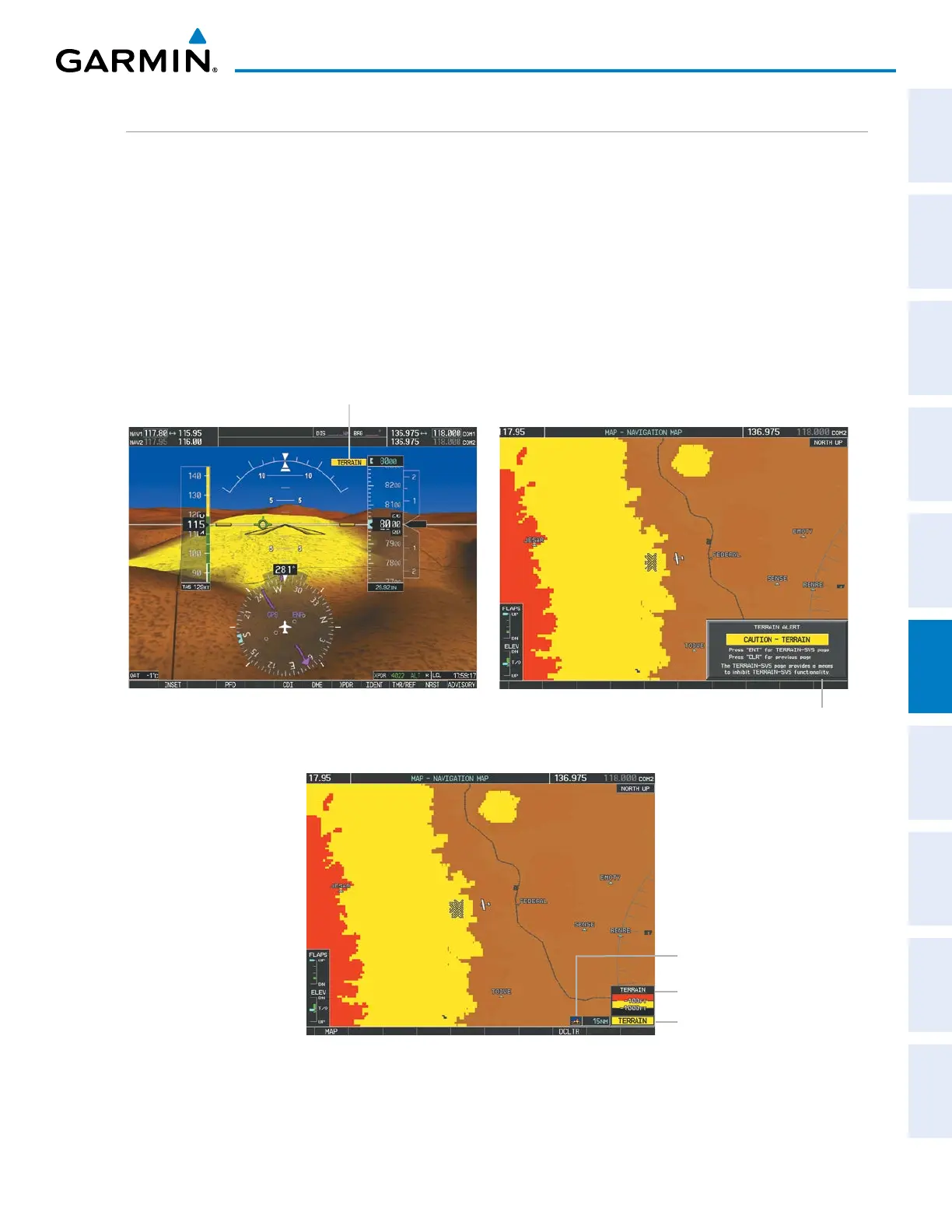

Alert Annunciation
Figure 6-44 Terrain-SVS Alert Annunciations
Pop-up
Alert
Figure 6-45 Navigation Map Page
(After Terrain-SVS Pop-up Alert Acknowledgment)
Alert Annunciation
Terrain Legend
Terrain Display Enabled
