B30 Patient Monitor
5-10
Modifying digit fields
Patient data may be displayed in up to four digit fields, located in the lower part of the screen.
The fields are numbered from left to right.

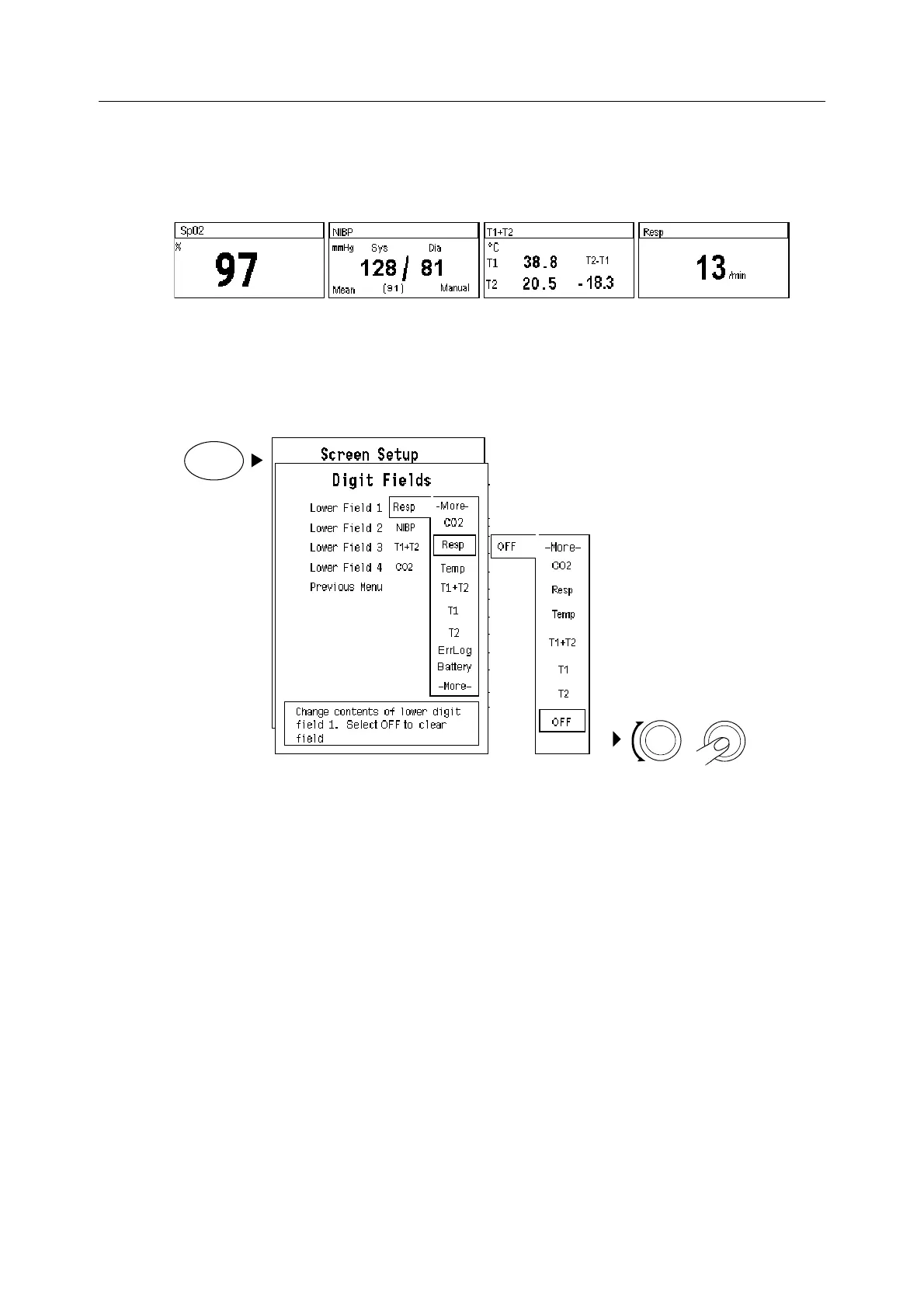

Figure 5-2 Digit fields
You may change the contents of each field, or turn them off individually. Before modifying the
digit fields remember to check that the desired parameter module is plugged in.
1. Press the
Monitor Setup key and select Screen Setup.
2. Select Digit Fields and change the field contents.
Changing the digit field may also change the waveform field setup. If you choose the same
measurement in the digit field that is currently in the waveform field, this measurement is
removed from the waveform field.
If a digit field is turned OFF, the remaining digit fields are enlarged to fill the space.
Monitor
Setup
